Husqvarna Z 4818 BIA (2004-09) Ride Mower (Turf Care)

Model: Z 4818 BIA (2004-09)

Back To Assemblies

Save Part Not Listed?
product name

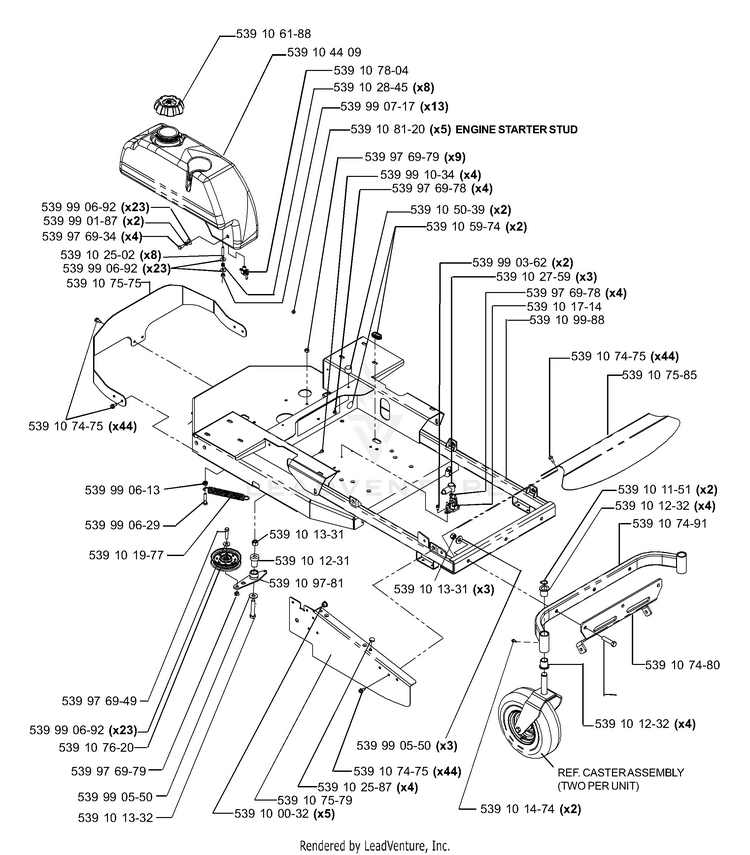

Main Frame Assembly (Part 1)

...
...
539100032
BUSHING, FLANGED NYLON HUS-539100032
...
539101151
RETAINING RING, 7/8" HUS-539101151
...
539101231
IDLER SPINDLE HUS-539101231
...
539101232
BUSHING, FLANGED HUS-539101232
...
539101331
GSPW NUTS HUS-596135601
...
539101332
HCS 1/2C X 2 3/4 HUS-539101332
...
539101474
Zerks HUS-596623501
...
539101714
SOLENOID HUS-539101714
...
539101977
SPRING HUS-539101977
...
539102502
STUD, 5/16C HUS-539102502
...
539102587
GROMMET, BUMPER HUS-539102587
...
539102759
INSULATOR HUS-539102759
...
539102845
SPRING HUS-539102845
...
539104409
LEFT TANK W/CUP HOLDER HUS-539104409
...
539105039
STUD/PLATE MOUNT HUS-539105039
...
539105974
RUBBER GROMMET HUS-539105974
...
539106188
FUEL CAP, GENERIC HUS-539130394
...
539107475
BOLT 5/16-18 X 3/4 HUS-539107475
...
539107480
STRUT MOUNT HUS-539107480
...
539107491
CASTER AXLE HUS-539107491
...
539107575
REAR BUMPER-BLACK HUS-539107575
...
539107579
RH FRAME SIDE-ORANGE HUS-539107579
...
539107585
FRONT FOOT PLATE HUS-539107585
...
539107620
Pulleys HUS-596481401
...
539107804
FUEL VALVE HUS-539107804
...
539108120
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
539109781
PUMP IDLER ARM HUS-539109781
...
539109988
ORANGE FRAME W/DECALS HUS-539109988
...
539976934
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
539976949
Bolts HUS-596918101
...
539976978
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
539976979
GSPW Nuts HUS-596240901
...
539990187
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
539990362
SCREW 1/4 X 5/8 HUS-539990362
...
539990550
Washers HUS-595316401
...
539990613
Washers HUS-596583501
...
539990629
Bolts HUS-596564404
...
539990692
GSPH HUS-596134901
...
539990717
Nuts HUS-596583702
...
539991034
Screws HUS-596584001
