Husqvarna Z 4818 BIA (2004-09) Ride Mower (Turf Care)

Model: Z 4818 BIA (2004-09)

Back To Assemblies

Save Part Not Listed?
product name

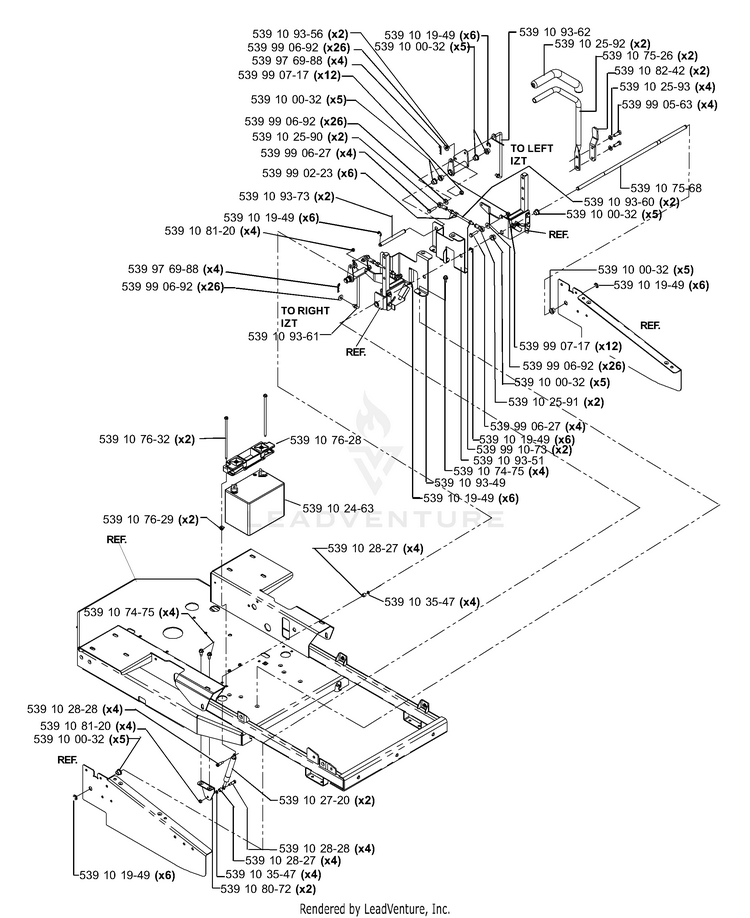

Motion Control Assembly

...
...
539101949
Washers HUS-596671501
...
539100032
BUSHING, FLANGED NYLON HUS-539100032
...
539101949
Washers HUS-596671501
...
539102463
BATTERY, 12 V 300 AMP DRY HUS-579411601
...
539102590
BALL JOINT, RIGHT HANDED HUS-539102590
...
539102591
BALL JOINT, LEFT HANDED HUS-539102591
...
539102592
GRIP HUS-539102592
...
539102593
WASHER, 3/8 DISC SPRING SPEC HUS-539102593
...
539102720
DAMPENER HUS-539102720
...
539102827
SPACER HUS-539102827
...
539102828
SCREW, 5/16 X 5/8 SHOULDER HUS-539102828
...
539103547
WASHER HUS-539103547
...
539107475
BOLT 5/16-18 X 3/4 HUS-539107475
...
539107526
CONTROL LEVER W/GRIP HUS-539108254
...
539107568
CONTROL PIVOT SHAFT HUS-539107568
...
539107628
BATTERY HOLD DOWN HUS-539107628
...
539107629
PUSH NUT-NYLON HUS-539107629
...
539107632
BOLT - 1/4-20 X 7.5 HUS-539107632
...
539108072
DAMPENER BRACKET HUS-539108072
...
539108120
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
539108242
STIFFNER, BLACK PAINTED HUS-539108242
...
539109349
RT BATTERY SUPPORT, BLK HUS-539109349
...
539109351
LT BATTERY SUPPORT, BLK HUS-539109351
...
539109356
DRIVE BELLCRANK HUS-539109356
...
539109360
LINKAGE HUS-539109360
...
539109361
RT DRIVE LINKAGE HUS-539109361
...
539109362
LT DRIVE LINKAGE HUS-539109362
...
539109373
PIVOT SHAFT HUS-539109373
...
539976988
Pins HUS-596580601
...
539990223
Hardware HUS-596040901
...
539990563
Bolts HUS-596564401
...
539990627
HCS 5/16C X 1 1/4 HUS-539990627
...
539990692
GSPH HUS-596134901
...
539990717
Nuts HUS-596583702
...
539991073
Nuts HUS-596584101
Schematic Image Zoomed
