product name

Husqvarna Z 4818 BIA (2004-09) Ride Mower (Turf Care)

Model: Z 4818 BIA (2004-09)

Back To Assemblies

Save Part Not Listed?
product name

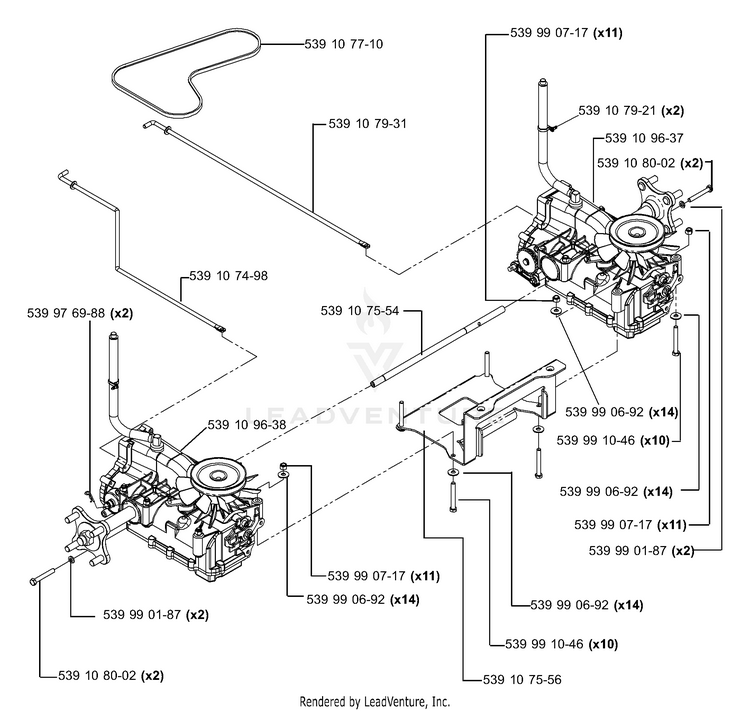

IZT Assembly (Integrated Zeroturn Transaxle)

...
...
539107498
IZT BYPASS LINKAGE HUS-539107498
...
539107554
TIE ROD HUS-539107554
...
539107556
IZT SUPPORT HUS-539107556
...
539107710
BELT, IZT HUS-539107710
...
539107921
RETAINER HUS-539107921
...
539107931
BYPASS LINKAGE-LH HUS-539107931
...
539108002
HEX SCREW-.313C X 2.25 GR8 HUS-539108002
...
539109637
HG_IZT LEFT NLS HUS-539109637
...
539109638
HG_IZT RIGHT NLS HUS-539109638
...
539976988
Pins HUS-596580601
...
539990187
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
539990692
GSPH HUS-596134901
...
539990717
Nuts HUS-596583702
...
539991046
BOLT 5/16C X 2 1/2 HUS-539991046
