Husqvarna Z 4818 BIA (2004-09) Ride Mower (Turf Care)

Model: Z 4818 BIA (2004-09)

Back To Assemblies

Save Part Not Listed?
product name

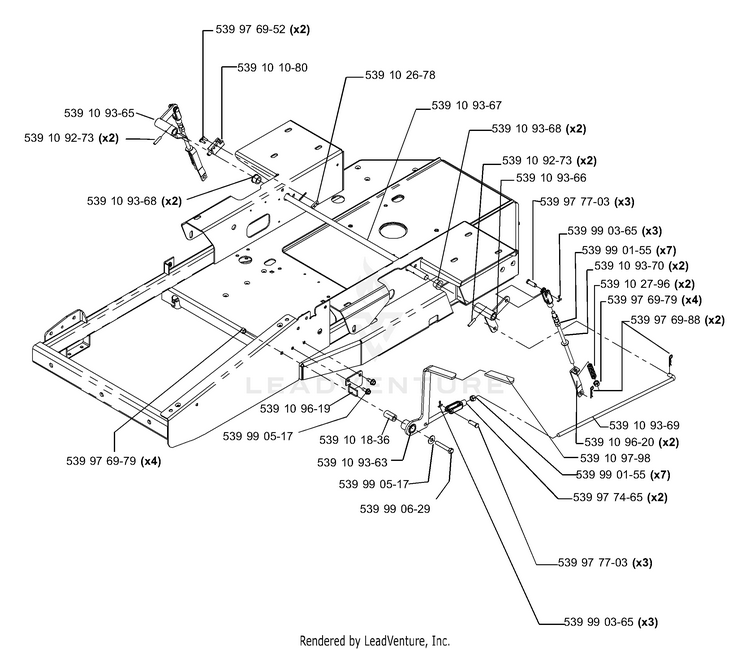

Brake Linkage

...
...
539101080
SWITCH, INTERLOCK HUS-539101080
...
539101836
BUSHING, SLEEVE HUS-539101836
...
539102678
TAPPED PLATE HUS-539102678
...
539102796
SPRING HUS-539102796
...
539109273
PIN ROLL 1/4 X 1-1/8 HUS-539109273
...
539109363
BRAKE LEVER WLDMT HUS-539109363
...
539109365
RT BRAKE BELLCRANK HUS-539109365
...
539109366
LT BRAKE BELLCRANK HUS-539109366
...
539109367
BRAKE CROSS SHAFT HUS-539109367
...
539109368
PLASTIC BUSHING HUS-539109368
...
539109369
MAIN LINKAGE, BRAKE HUS-539109369
...
539109370
SECONDARY LINKAGE HUS-539109370
...
539109619
OVERCENTER STOP HUS-539109619
...
539109620
CONNECTING LINK HUS-539109620
...
539109798
GRIP, PARK BRAKE HUS-539109798
...
539976952
Screws HUS-596039001
...
539976979
GSPW Nuts HUS-596240901
...
539976988
Pins HUS-596580601
...
539977465
Yoke HUS-596739901
...
539977703
CLEVIS PIN 3/8 X 1 1/8 HUS-539977703
...
539990155
NUT 3/8F HUS-539990155
...
539990365
Pins HUS-596029501
...
539990517
GSPW Washers HUS-596433701
...
539990629
Bolts HUS-596564404
