Husqvarna Z 4818 BIA (2004-09) Ride Mower (Turf Care)

Model: Z 4818 BIA (2004-09)

Back To Assemblies

Save Part Not Listed?
product name

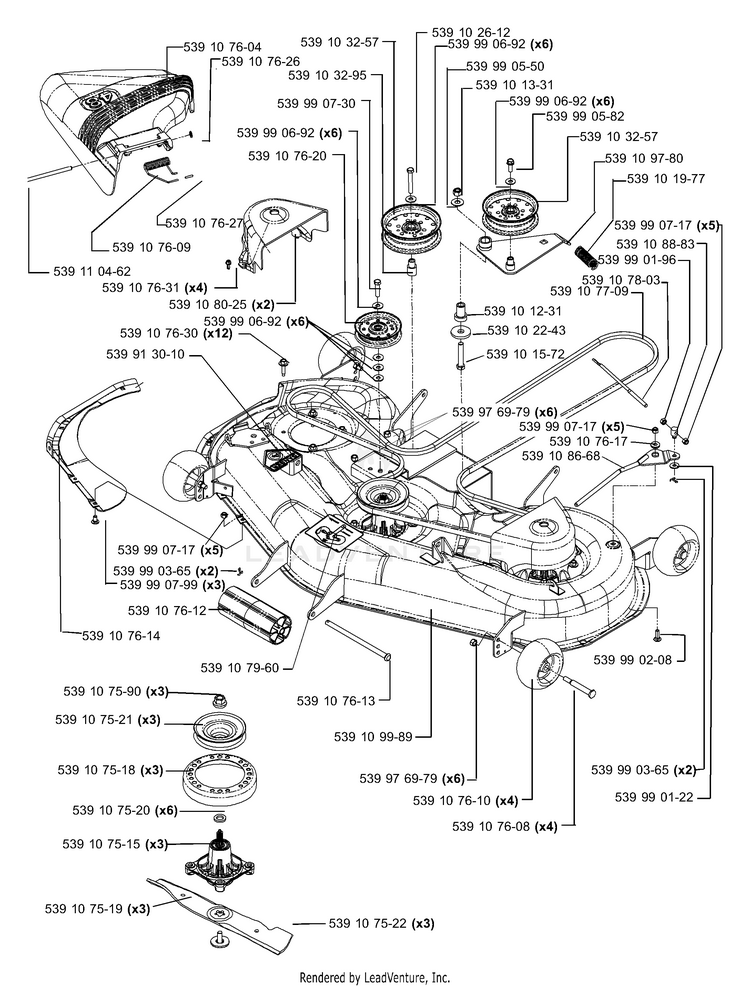

Deck Assembly 48"

...
...
539101231
IDLER SPINDLE HUS-539101231
...
539101331
GSPW NUTS HUS-596135601
...
539101572
SCREW, 1/2C X 3 HEX CAP HUS-539101572
...
539101977
SPRING HUS-539101977
...
539102243
Washers HUS-596437501
...
539102612
SCREW 3/8C X 2 3/4 HEX CAP HUS-539102612
...
539103257
IDLER PULLEY HUS-539103257
...
539103295
IDLER BUSHING HUS-539103295
...
539107515
MANDREL.W/SPCR.BRG.SHRT.NONRVL HUS-587125201
...
539107518
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
539107519
48" HI-LIFT BLADE HUS-532180054
...
539107520
WASHER.SPACER.MANDREL HUS-532187690
...
539107521
PULLEY.DRIVEN.DECK.48' HUS-532174375
...
539107522
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
539107590
Nuts HUS-596134801
...
539107604
DEFLECTOR.ASM.BLACK.48" HUS-532180655
...
539107608
Bolts HUS-596434404
...
539107609
TORSION SPRING HUS-539107609
...
539107610
WHEEL GAGE DONUT HUS-532133957
...
539107612
NOSE ROLLER 48" HUS-532176066
...
539107613
Rods HUS-594092501
...
539107614
SERVICE KIT BAFFLE BAFFLE HUS-531167501
...
539107617
BUSHING, PIVOT TENSION RELIEF HUS-532174606
...
539107620
Pulleys HUS-596481401
...
539107626
NUT PUSH M HUS-532110452
...
539107627
CAP-SLEEVE LT HUS-532105304
...
539107630
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
539107631
SCREW.1/4-20X5/8 HUS-532137729
...
539107709
BELT, DECK HUS-539107709
...
539107803
TENSION RELIEF LINKAGE HUS-539107803
...
539107960
DECAL, BELT ROUTING HUS-539107960
...
539108025
BELT SHIELD HUS-539108025
...
539108668
TENSION RELIEF LEVER BLK HUS-539108668
...
539108883
SWIVEL HUS-539108883
...
539109780
DECK IDLER ARM HUS-539109780
...
539109989
DECK W/DECALS 48" HUS-539109989
...
539110462
Rods HUS-595297001
...
539913010
DECAL, CPSC HUS-539913010
...
539976979
GSPW Nuts HUS-596240901
...
539990122
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
539990196
Nuts HUS-596582601
...
539990208
Bolts HUS-595901501
...
539990365
Pins HUS-596029501
...
539990550
Washers HUS-595316401
...
539990582
Screws HUS-596583101
...
539990692
GSPH HUS-596134901
...
539990717
Nuts HUS-596583702
...
539990730
Bolts HUS-596583901
...
539990799
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
