Husqvarna Z 4818 BIA (2004-09) Ride Mower (Turf Care)

Model: Z 4818 BIA (2004-09)

Back To Assemblies

Save Part Not Listed?
product name

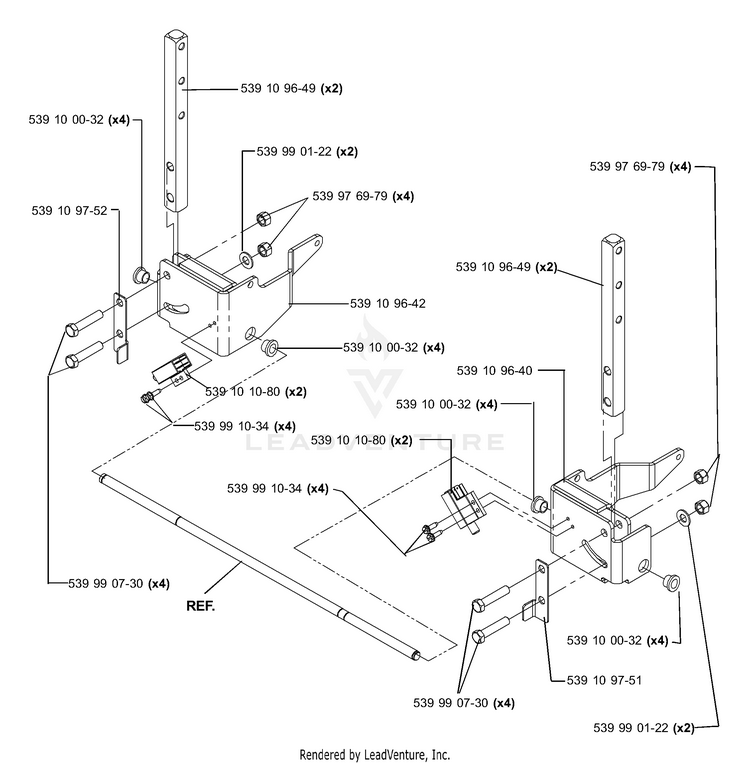

Motion Control Levers

...
...
539990730
Bolts HUS-596583901
...
539100032
BUSHING, FLANGED NYLON HUS-539100032
...
539101080
SWITCH, INTERLOCK HUS-539101080
...
539109640
CONTROL ARM WLDMT, LT HUS-539109640
...
539109642
CONTROL ARM WLDMT, RT HUS-539109642
...
539109649
DRIVE LEVER MOUNT HUS-539109649
...
539109751
LT. SWITCH ACTUATOR HUS-539109751
...
539109752
RT. SWITCH ACTUATOR HUS-539109752
...
539976979
GSPW Nuts HUS-596240901
...
539990122
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
539990730
Bolts HUS-596583901
...
539991034
Screws HUS-596584001
