Husqvarna Z 4818 BIA (2004-09) Ride Mower (Turf Care)

Model: Z 4818 BIA (2004-09)

Back To Assemblies

Save Part Not Listed?
product name

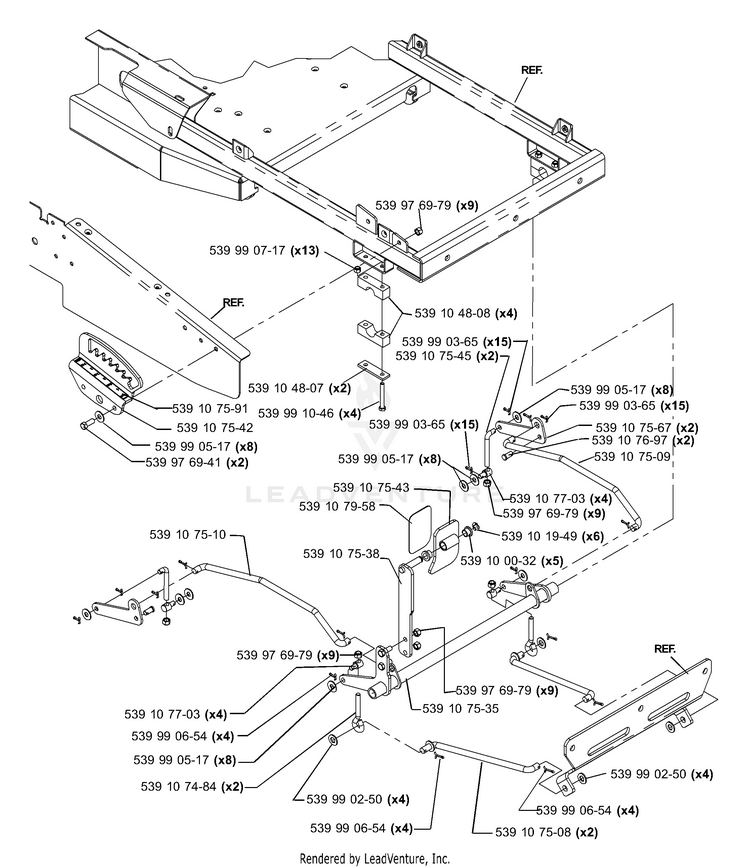

Deck Lift Assembly

...
...
539107539
HUS-539107539
...
539100032
BUSHING, FLANGED NYLON HUS-539100032
...
539101949
Washers HUS-596671501
...
539104807
REINFORCEMENT.PLATEX431 HUS-584392702
...
539104808
PILLOW BLOCK HUS-539104808
...
539107484
Bolts HUS-596671601
...
539107508
STRUT LINKAGE HUS-539107508
...
539107509
LIFT LINKAGE-LH HUS-539107509
...
539107510
LIFT LINKAGE-RH HUS-539107510
...
539107535
CROSS SHAFT WELDMENT HUS-539107535
...
539107542
HEIGHT PLATE HUS-539107542
...
539107543
FOOT PEDAL WELDMENT HUS-539107543
...
539107545
LIFT LINKAGE HUS-539107545
...
539107567
REAR BELLCRANK HUS-539107567
...
539107591
DECAL, CUTTING HEIGHT HUS-539107591
...
539107697
CLEVIS PIN HUS-539107697
...
539107703
SWIVEL HUS-539107703
...
539107958
FOOT PAD HUS-539107958
...
539976941
HCS 3/8C X 1 1/4 GR5 HUS-539976941
...
539976979
GSPW Nuts HUS-596240901
...
539990250
Washers HUS-595086801
...
539990365
Pins HUS-596029501
...
539990517
GSPW Washers HUS-596433701
...
539990654
COTTER PIN HUS-539990654
...
539990717
Nuts HUS-596583702
...
539991046
BOLT 5/16C X 2 1/2 HUS-539991046
