Husqvarna Z 4818 BIA (2004-09) Ride Mower (Turf Care)

Model: Z 4818 BIA (2004-09)

Back To Assemblies

Save Part Not Listed?
product name

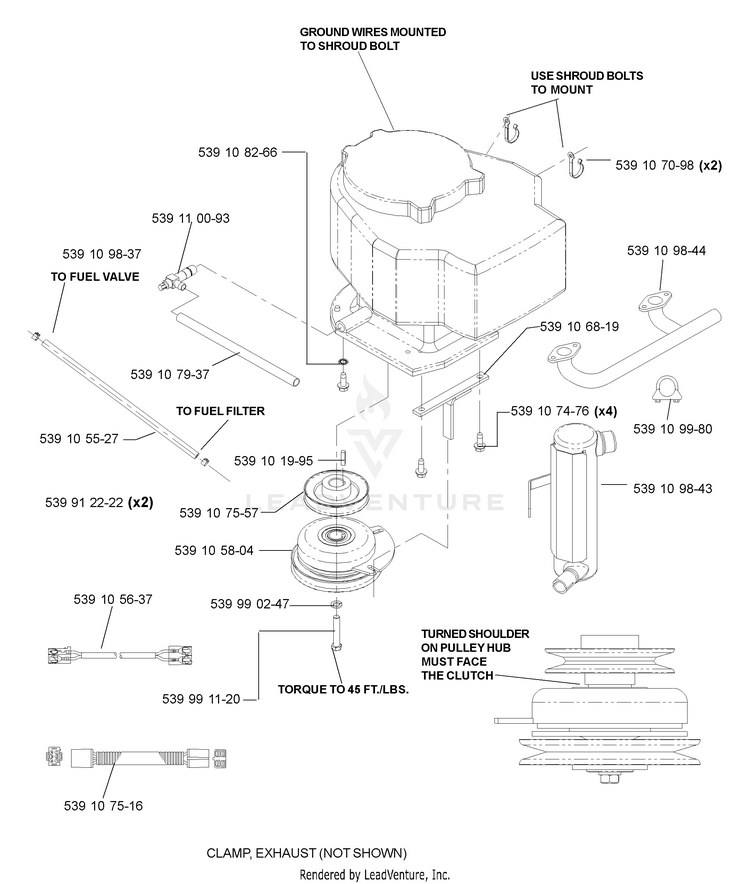

Briggs & Stratton Engine Assembly

...
...
539101995
KEY 1/4 SQ X 1 1/8 HUS-539101995
...
539105527
HOSE, FUEL .25 ID X 26" HUS-539107765
...
539105637
CLUTCH HARNESS HUS-539105637
...
539105804
CLUTCH HUS-539105804
...
539106819
CLUTCH TIE DOWN HUS-539106819
...
539107098
CLAMP HUS-539107098
...
539107476
BOLT 3/8-16 X 1.0 HUS-539107476
...
539107516
KOHLER PIGTAIL-CV490S HUS-539107516
...
539107557
PULLEY HUS-539107557
...
539107937
OIL DRAIN HOSE HUS-539107937
...
539108266
WASHER, 3/8 ITLW ZN HUS-539990390
...
539109837
VALUE.OIL.DRAIN HUS-532428287
...
539109843
B&S MUFFLER, VERTICAL HUS-539109843
...
539109844
B&S MANIFOLD HUS-539109844
...
539109980
MUFFLER CLAMP HUS-539109980
...
539110093
VALUE.OIL.DRAIN HUS-532428287
...
539912222
HOSE CLAMP HUS-539912222
...
539990247
Washers HUS-596238901
...
539991120
BOLT 7/16F X 2 1/2 HUS-539991120
