Husqvarna Z 4818 BIA (2004-09) Ride Mower (Turf Care)

Model: Z 4818 BIA (2004-09)

Back To Assemblies

Save Part Not Listed?
product name

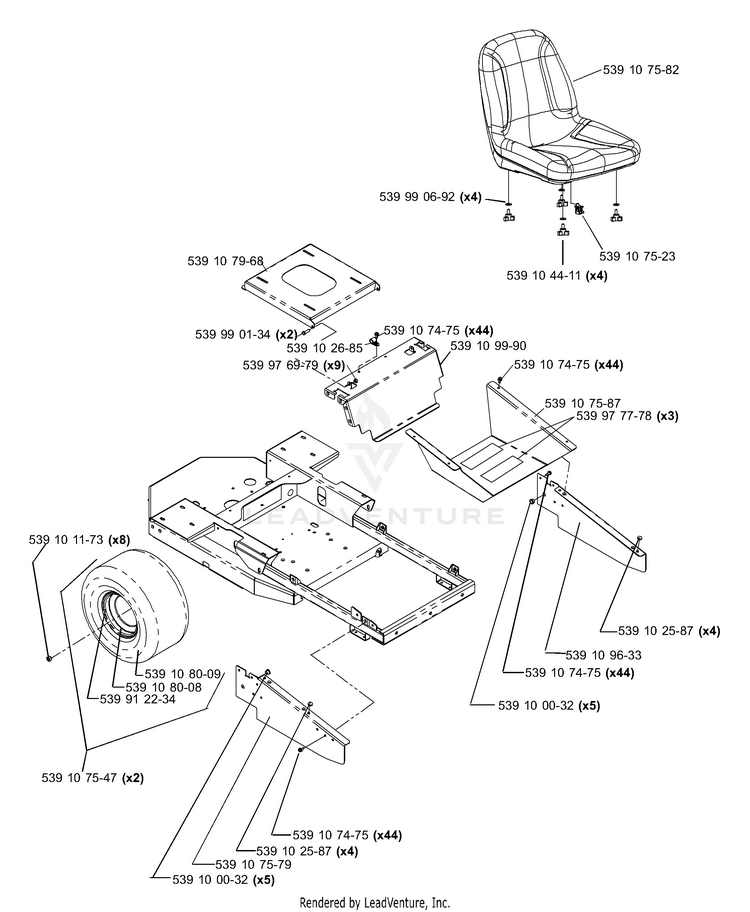

Main Frame Assembly (Part 2)

...
...
539100032
BUSHING, FLANGED NYLON HUS-539100032
...
539101173
Nuts HUS-587653903
...
539102587
GROMMET, BUMPER HUS-539102587
...
539102685
LOOM CLIP HUS-539102685
...
539104411
GSPW Knobs HUS-597783101
...
539107475
BOLT 5/16-18 X 3/4 HUS-539107475
...
539107523
SEAT SWITCH HUS-539107523
...
539107547
WHEEL.A500.18 X 9.5-8.SILVER HUS-579753401
...
539107579
RH FRAME SIDE-ORANGE HUS-539107579
...
539107582
SEAT HUS-539107582
...
539107587
FLOOR PAN-ORANGE HUS-539107587
...
539107968
SEAT SUPPORT W/DECALS HUS-539107968
...
539108008
WHEEL.A500.18 X 9.5-8.SILVER HUS-579753401
...
539108009
TIRE 18 X 9.5-8 4 PLY HUS-539108009
...
539109633
LT FRAME SIDE HUS-539109633
...
539109990
ORG SEAT SUPPORT HUS-539109990
...
539912234
VALVE STEM TR-412 HUS-539912234
...
539976979
GSPW Nuts HUS-596240901
...
539977778
ANTI-SKID PAD HUS-539977778
...
539990134
SCREW 3/8C X 3/4 HEX CAP HUS-539990134
...
539990692
GSPH HUS-596134901
