Husqvarna Z 248F Zero Turn Mower

Model: Z 248F

Back To Assemblies

Save Part Not Listed?
product name

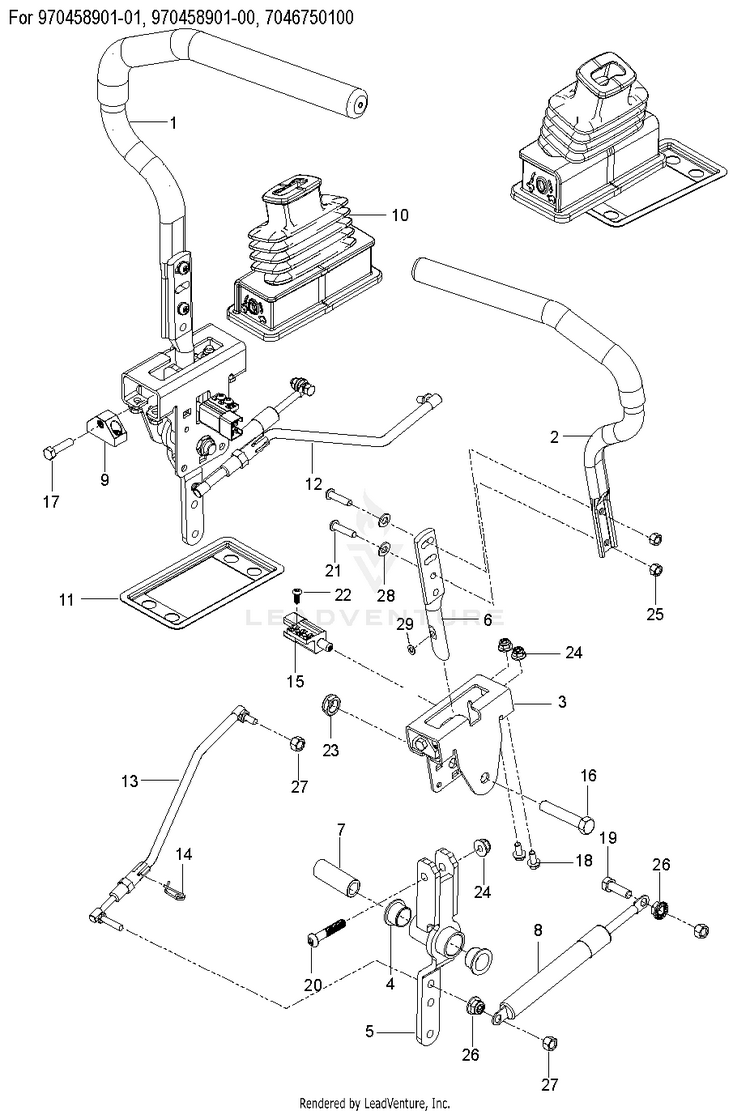

STEERING 2

...
...
6
Controls HUS-587601704
...
8
DAMPENER HUS-539102720
...
20
SCREW.CAP.SOCKET.6PT.5/16-18 HUS-587885301
...
10
BOOT.STEERING.LEVER HUS-585831601
...
7
SPACER.PIVOT.CONTROL HUS-584927201
...
17
SCREW.SHAKEPROOF.1.25.BLACK HUS-585986101
...
28
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
9
Blocks HUS-581437502
...
15
SWITCH.INTLK.RZ.RFRSH.BUTTON HUS-587601501
...
29
WASHER.11/32ID.11/16OD.116THIC HUS-587614201
...
4
BEARING, FLANGE HUS-539131518
...
3
BRACKET.CONTROLS.ZTR.X431 HUS-585124705
...
2
TUBE RZ CONTROL LEVER LEFT MS W/ GRIP HUS-598851704
...
12
Controls HUS-588604902
...
1
TUBE RZ CONTROL LEVER RIGHT MS W/ GRIP HUS-598851703
...
26
GSPW Hardware HUS-596039201
...
13
Rods HUS-588605002
...
19
Bolts HUS-596580801
...
14
RETAINER.CLIP.SPRING.S HUS-532199849
...
24
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
5
LEVER CONTROL PIVOT HUS-576140301
...
22
SCR #10-24 X .75 SKT HD BLK HUS-574822701
...
21
BUTTONHEAD.5/16-18X1.125.BLACK HUS-585985901
...
16
Bolts HUS-596434301
...
25
Nuts HUS-596583702
...
11
CONTROL.BOOT.FLANGE.X431 HUS-585488202
...
18
Bolts HUS-592858702
...
27
Nuts HUS-596583702
...
23
NUT 1/2-13 HEX JM NYL HUS-539108010
