Husqvarna Z 248F Zero Turn Mower

Model: Z 248F

Back To Assemblies

Save Part Not Listed?
product name

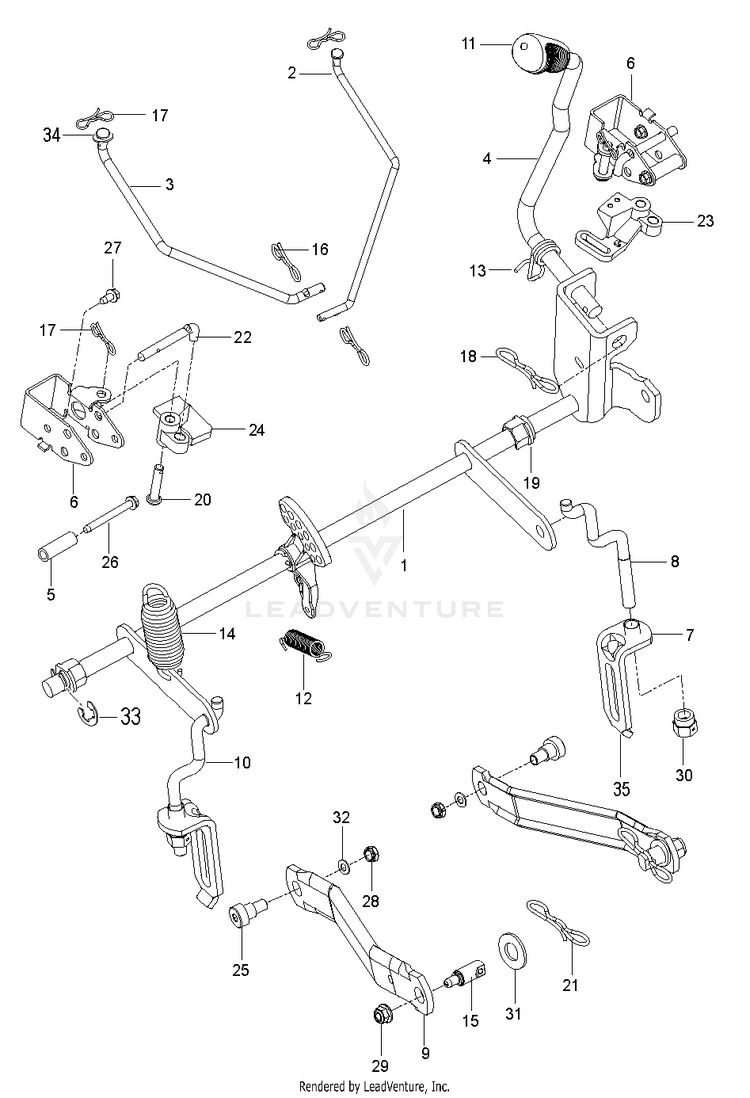

MOWER LIFT / DECK LIFT

...
...
19
PLASTIC NUT HUS-510184901
...
3
LINK.BRAKE.PARK.UPPER.RH HUS-586457201
...
17
PIN COTTER;LOCKING;BOWTIE;1IN HUS-587225301
...
18
PIN.COTTER.7/16.BOW TI. For ,970458901-01, 970458901-00, 97046750100 HUS-532194209
...
18
PIN.COTTER.7/16.BOW TI. For 967844801-02 HUS-532194209
...
1
SHAFT.ASM.RZ.DECK.LIFT.SRV For 970458901-01, 970458901-00 HUS-587623101
...
7
LINK.ASM.RZ.LIFT.SERVICE HUS-587623001
...
1
SHAFT ASSY DECK LIFT WELDMENT For 967844801-02, 97046750100 HUS-586429702
...
20
PIN.5.16X1.5 HUS-585701401
...
35
Links For 967844801-02 HUS-589464807
...
32
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
13
SPRING.TORSION.LIFT.HANDLE HUS-532196314
...
26
SCREW THD;ROLL;1/4-20 X 2.25 HUS-586561301
...
31
Washers HUS-596320001
...
10
LINK.ASM.RZ.LIFT.SERVICE HUS-587623001
...
28
Nuts HUS-596230801
...
8
LINK.ASM.RZ.LIFT.SERVICE HUS-587623001
...
9
LINK FIXED MOWER DRAWBAR BLACK HUS-536050602
...
29
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
6
BRACKET.BELLCRANK.PBRAKE X431 HUS-585682102
...
30
Links For 967844801-02 HUS-589464807
...
4
LIFT.LEVER.ASM.RZ.SERVICE HUS-587622901
...
14
Springs HUS-596482001
...
27
SCREW.1/4-20X5/8 HUS-532137729
...
11
GRIP.HANDLE.LIFT.PVC.BLACK For 967844801-02, 97046750100 HUS-532411555
...
15
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
5
Spacers HUS-580486102
...
24
BELLCRANK.RH HUS-586457501
...
12
BRAKE SPRING HUS-547190203
...
34
WASHER PLAIN WASHER 3/8 X 0.08 For 97046750100 HUS-596565301
...
21
PIN.COTTER.7/16.BOW TI. HUS-532194209
...
16
PIN.COTTER.5/16.BOW TI HUS-532194208
...
30
NUT.LIFT LNK.7/16-2 For 970458901-01, 970458901-00 HUS-589464902
...
2
LINK.BRAKE.PARK.UPPER.LH HUS-586457101
...
22
ROD.PUSH.BRAKE HUS-585682001
...
25
Bolts HUS-596241101
...
33
RETAINING RING LT For 97046750100 HUS-812000002
...
23
BELLCRANK.LH HUS-586457401
...
11
GRIP.HANDLE.LIFT.PVC.BLACK For 970458901-01, 970458901-00 HUS-532411555
