Husqvarna Z 248F Zero Turn Mower

Model: Z 248F

Back To Assemblies

Save Part Not Listed?
product name

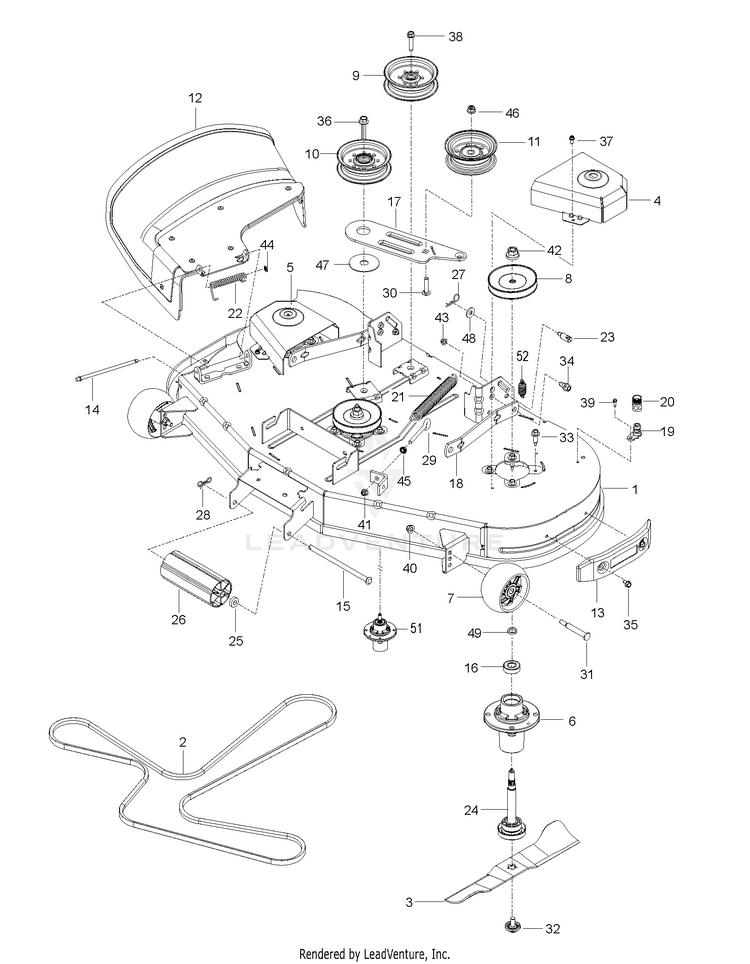

MOWER DECK / CUTTING DECK

...
...
30
Bolts HUS-596136201
...
9
BELT SHIELD - L.H. ORANGE For 97046750100 HUS-539113413
...
27
PIN.COTTER.7/16.BOW TI. For 967844801-02, 97046750100 HUS-532194209
...
15
Rods HUS-594092501
...
1
DECK.KIT.SVC.48.CC.RZ.DSHL.ASM For 967844801-02, 97046750100 HUS-583810104
...
13
BUMPER 48 CLEARCUT TRIM SIDE A For 967844801-02, 97046750100 HUS-582541103
...
28
PIN.COTTER.5/16.BOW TI HUS-532194208
...
19
PORT.WASHOUT HUS-532415598
...
22
SPRING.42.FCS.DEFLECTOR HUS-587354701
...
49
WASHER.SPACER.MANDREL HUS-532187690
...
51
MANDREL ASM, CAST IRON For 97046750100 HUS-539131898
...
31
Bolts For 97046750100 HUS-596434404
...
16
BEARING HUS-532110485
...
8
MANDREL.PULLEY.38.BRIGHT.ZINC HUS-532173435
...
43
GSPW Nuts For 97046750100 HUS-596135701
...
24
MANDRELS HUS-597023501
...
43
GSPW Nuts For 970458901-01, 967844801-02, 970458901-00 HUS-596135701
...
3
BLADE.BAGGER.RES.CLRCT.48".BLK HUS-588811002
...
12
GSPW Deflectors HUS-593649701
...
48
Washers HUS-596320001
...
46
Nuts For 970458901-01, 967844801-02, 970458901-00 HUS-596322601
...
13
BUMPER.ASM.SIDE.TRIM.CLRCUT.48 For 970458901-01, 970458901-00 HUS-582541101
...
41
NUT HEXAGON FLANGE 5/16-18 ST For 970458901-01, 967844801-02, 970458901-00 HUS-594944401
...
42
Bolts For 97046750100 HUS-596434404
...
18
LINK FIXED MOWER DRAWBAR BLACK HUS-536050602
...
36
SCREW.7/16-14 X 2.125.WASHER HUS-588438301
...
46
NUT.HEX.FLANGE.3/8-16.LOCKNUT For 97046750100 HUS-532409149
...
52
Springs For 97046750100 HUS-596482001
...
9
PULLEY.IDLER.2006 For 970458901-01, 967844801-02, 970458901-00 HUS-532196106
...
32
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
44
NUT PUSH M HUS-532110452
...
26
NOSE ROLLER 48" HUS-532176066
...
41
NUT HEXAGON FLANGE 5/16-18 ST For 97046750100 HUS-594944401
...
20
COUPLING.QUICK CONNECT HUS-532416405
...
6
MANDREL.DECK.ASSEMBLY For 970458901-01, 967844801-02, 970458901-00 HUS-539112170
...
7
WHEEL.GAUGE.RALLY HUS-589527301
...
14
Rods HUS-595297001
...
25
BUSHING.NOSE.ROLLER HUS-582360501
...
21
SPRING.EXTENSION HUS-582504001
...
35
SHOULDER BOLT 5/16-18TT HUS-532170165
...
42
Nuts For 970458901-01, 967844801-02, 970458901-00 HUS-596134801
...
2
BELT.DECK HUS-582558001
...
10
PULLEY.IDLER.MWR.STATI.LH HUS-532196104
...
4
COVER.PNT.MANDREL.LH.ZTR.GREY HUS-588812802
...
5
COVER.PNT.MANDREL.RH.GREY HUS-588812402
...
27
Pins For 970458901-01, 970458901-00 HUS-596273101
...
47
WASHER HUS-532178515
...
39
Screws HUS-596637301
...
33
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
6
MANDREL ASM, CAST IRON For 967844801-02, 97046750100 HUS-539131898
...
11
PULLEY.IDLER.FLAT HUS-532177968
...
34
BOLT.SHOULDER HUS-532196539
...
38
BOLT HUS-599972501
...
23
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
31
Bolts For 970458901-01, 967844801-02, 970458901-00 HUS-596434404
...
17
IDLER ARM HUS-529470302
...
45
GSPW Hardware HUS-596039201
...
37
SCREW.1/4-20X5/8 HUS-532137729
...
29
GSPW Bolts HUS-596240801
...
40
GSPW Nuts HUS-521996502
