Husqvarna Z 248F Zero Turn Mower

Model: Z 248F

Back To Assemblies

Save Part Not Listed?
product name

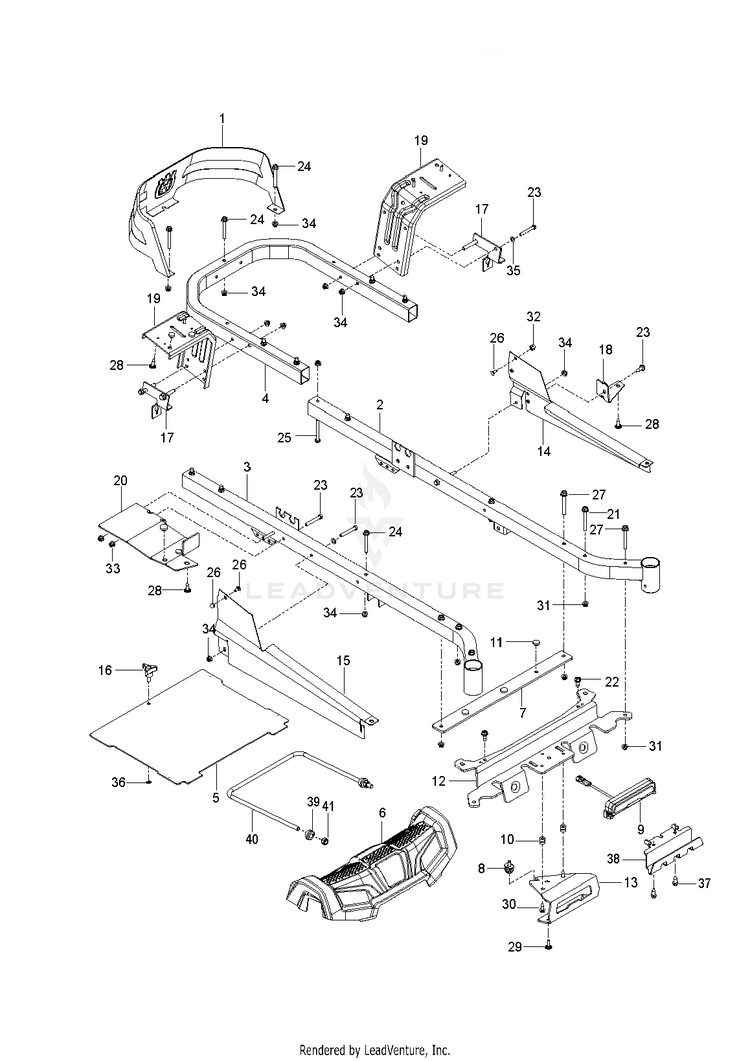

FRAME

...
...
37
BOLT.5/16HEX.WHS.HD For 97046750100, 967844801-02 HUS-817000510
...
8
Screws HUS-587546902
...
22
BOLT.5/16-18.THRD.ROLL.SHOULDR HUS-586881101
...
34
NUT HEXAGON FLANGE 5/16-18 ST For 97046750100 HUS-594944401
...
6
COVER.FOOTREST.REFRESH.ASM W/ DECALS HUS-586703801
...
7
SUPPORT.RZ.FOOTREST.PLATE.X43 HUS-529365102
...
34
NUT HEXAGON FLANGE 5/16-18 ST For 970458901-01, 970458901-00 HUS-594944401
...
33
GSPW Nuts For 970458901-01, 970458901-00 HUS-596135701
...
3
FRAME.TUBE.RZ.MAIN.WELD.RH.ORG HUS-589283402
...
40
Links For 97046750100 HUS-521938102
...
25
Bolts For 970458901-01, 970458901-00 HUS-596564405
...
39
Bushings For 967844801-02 HUS-593842101
...
9
LIGHT.ZTR.LED.ASM HUS-585916701
...
21
Bolts For 970458901-01, 970458901-00 HUS-586654302
...
18
SUPPORT RZ REFRESH RH CONSOLE HUS-593118304
...
12
CROSS.PNT.MEMBER.BLK HUS-585523104
...
38
SKID.PLATE.PNT.RZ.REF.SIVER For 97046750100, 967844801-02 HUS-585523204
...
15
COVER.RAIL.LH.RZ.X668 HUS-585331502
...
27
Hardware HUS-577117702
...
26
BOLT.CARRIAGE.5/16-18.7/16 For 970458901-01, 970458901-00 HUS-585940001
...
21
Bolts For 97046750100 HUS-586654302
...
24
Bolts HUS-596218601
...
5
PLATES fits 967953901-01, 970458901-01 HUS-598712401
...
29
Screws HUS-596434001
...
41
Nuts For 97046750100 HUS-595901901
...
20
SUPPORT RZ REFRESH RH CONSOLE fits 967953901-01, 970458901-01 HUS-593118304
...
30
BOLT.5/16-18X1.25 HUS-817580520
...
20
SUPPORT RZ REFRESH RH CONSOLE HUS-593118304
...
13
BRACKET.SKIDPLTE.LED.RFRSHX417 HUS-587458602
...
28
Screws For 970458901-01, 970458901-00 HUS-596321701
...
5
PLATES HUS-598712401
...
31
GSPW Nuts For 97046750100 HUS-521996502
...
33
GSPW Nuts For 97046750100 HUS-596135701
...
31
GSPW Nuts For 970458901-01, 970458901-00 HUS-521996502
...
39
Bushings For 97046750100 HUS-593842101
...
16
GSPW Knobs HUS-597783101
...
23
Bolts HUS-596434801
...
7
SUPPORT.RZ.FOOTREST.PLATE.X43 fits 967953901-01, 970458901-01 HUS-529365102
...
4
TUBE.PNT.FRAME.RER.HUSQ.23".RZ HUS-584991002
...
18
SUPPORT RZ REFERSH LH CONSOLE fits 967953901-01, 970458901-01 HUS-593682604
...
19
FENDER.SUPPORT.PNT.X431 HUS-580501302
...
14
COVER.RAIL.RH.RZ.X668 HUS-585331602
...
36
PALNUT.5/16" HUS-583400601
...
11
GROMMET.BUMPER HUS-585989301
...
10
GROMMET.RUBBER.PUSHIN HUS-587225201
...
28
Screws For 97046750100 HUS-596321701
...
1
GUARD.ENGINE.HUSQ.RZ.X498 HUS-585039802
...
40
Links For 967844801-02 HUS-521938102
...
25
Bolts For 97046750100 HUS-596564405
...
17
BRKT ROD.BYPASS.EZT.X431 For 970458901-01, 970458901-00 HUS-585474302
...
2
FRAME.TUBE.RZ.MAIN.WELD.LH.ORG HUS-589283302
...
17
BRKT ROD.BYPASS.EZT.X431 For 97046750100 HUS-585474302
...
32
NUT ACORN,FLANGED,5/16-18 HUS-585938101
...
26
NUT ACORN,FLANGED,5/16-18 For 97046750100 HUS-585938101
...
35
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
