Husqvarna Z 242F Zero Turn Mower

Model: Z 242F

Back To Assemblies

Save Part Not Listed?
product name

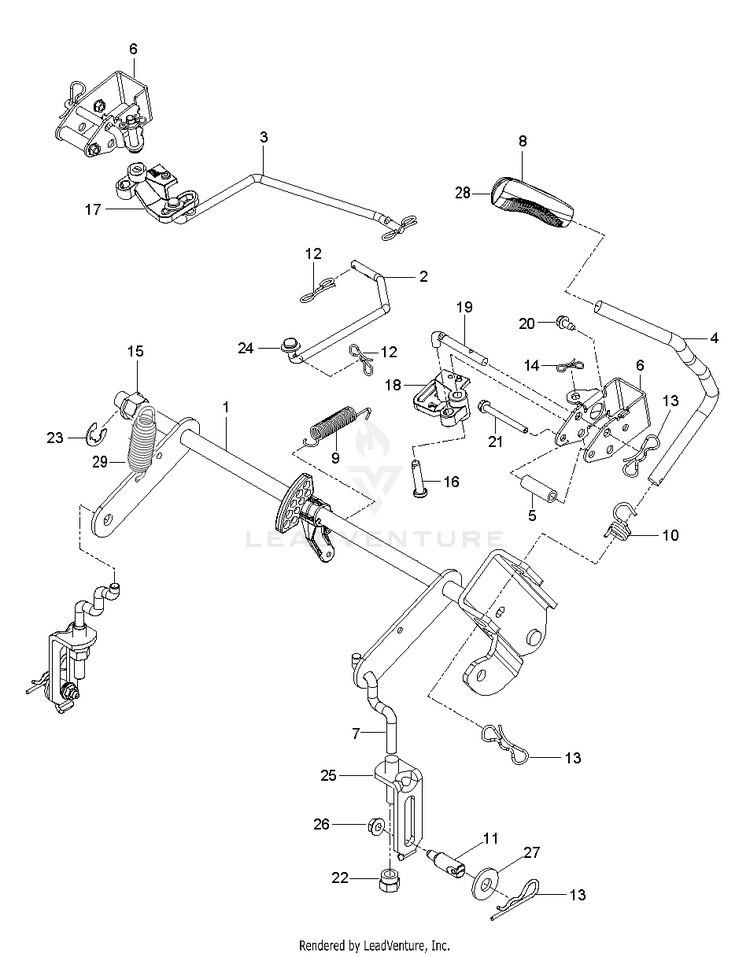

MOWER LIFT / DECK LIFT

...
...
13
PIN.COTTER.7/16.BOW TI. For 96766570300, 967953801-01 HUS-532194209
...
4
LIFT.LEVER.ASM.RZ.SERVICE For 970458801-01, 970458801-00 HUS-587622901
...
10
SPRING.TORSION.LIFT.HANDLE HUS-532196314
...
13
SPRING.TORSION.LIFT.HANDLE For 970458801-01, 970458801-00 HUS-532196314
...
1
SHAFT ASSY DECK LIFT WELDMENT For 96766570300, 967953801-01 HUS-586429702
...
14
PIN.COTTER.5/16.BOW TI For 96766570300, 967953801-01 HUS-532194208
...
25
LINK.ASM.RZ.LIFT.SERVICE For 96766570300, 967953801-01 HUS-587623001
...
24
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
2
LINK.BRAKE.PARK.UPPER.LH HUS-586457101
...
5
Spacers HUS-580486102
...
8
GRIP.HANDLE.LIFT.PVC.BLACK HUS-532411555
...
20
SCREW.1/4-20X5/8 HUS-532137729
...
27
Washers HUS-596320001
...
21
SCREW THD;ROLL;1/4-20 X 2.25 HUS-586561301
...
9
BRAKE SPRING HUS-547190203
...
11
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
14
PIN COTTER;LOCKING;BOWTIE;1IN For 970458801-01, 970458801-00 HUS-587225301
...
26
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
1
SHAFT.ASM.RZ.DECK.LIFT.SRV For 970458801-01, 970458801-00 HUS-587623101
...
7
LINK.ASM.RZ.LIFT.SERVICE HUS-587623001
...
17
BELLCRANK.RH HUS-586457501
...
22
NUT.LIFT LNK.7/16-2 HUS-589464902
...
12
PIN COTTER;LOCKING;BOWTIE;1IN HUS-587225301
...
4
Supports For 96766570300, 967953801-01 HUS-586428702
...
23
RETAINING RING LT HUS-812000002
...
16
PIN.5.16X1.5 HUS-585701401
...
6
BRACKET.BELLCRANK.PBRAKE X431 HUS-585682102
...
15
PLASTIC NUT HUS-510184901
...
18
BELLCRANK.LH HUS-586457401
...
19
ROD.PUSH.BRAKE HUS-585682001
...
25
LINK.ASM.RZ.LIFT.SERVICE For 970458801-01, 970458801-00 HUS-587623001
...
3
LINK.BRAKE.PARK.UPPER.RH HUS-586457201
...
29
Springs For 970458801-01, 970458801-00 HUS-596482001
...
28
GRIP.HANDLE.LIFT.PVC.BLACK For 970458801-01, 970458801-00 HUS-532411555
