Husqvarna YTKH 1848 XPC (954568489) (2004-04) Ride Mower

Model: YTKH 1848 XPC (954568489) (2004-04)

Back To Assemblies

Save Part Not Listed?
product name

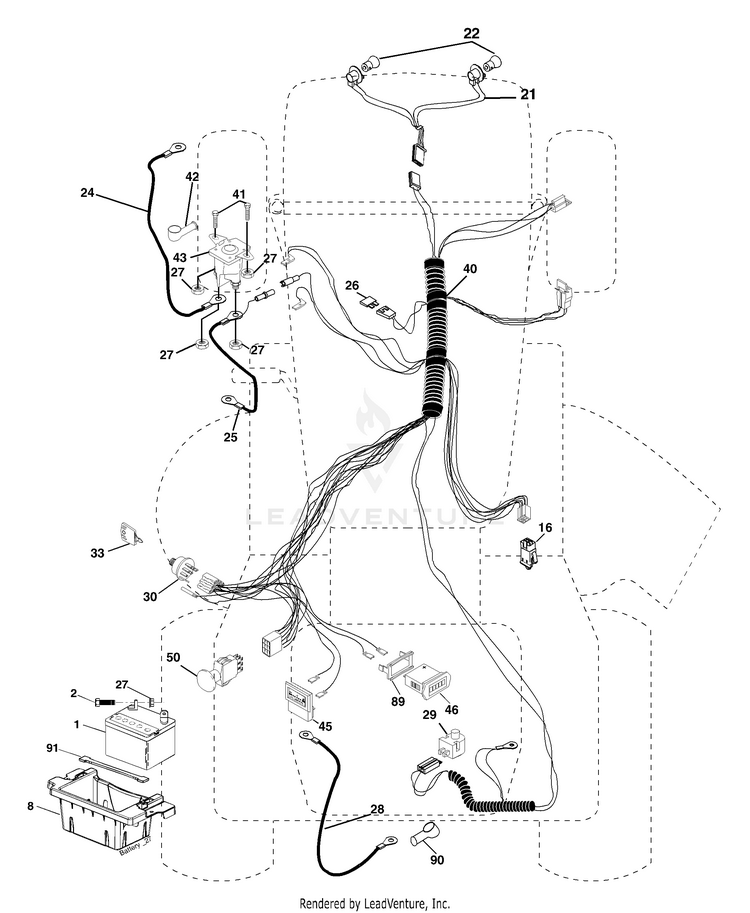

Electrical

...
...
1
BATTERY.DRY.30.AMP HUS-532123899
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
8
BOX.BATTERY.MOUNT.FRONT.LT HUS-532186491
...
16
SWITCH INTERLOOK PUSH-IN HUS-532176138
...
21
HARNESS ASSY LIGHT HUS-532183759
...
22
LIGHTBULB HUS-532004152
...
24
BATTERY CABLE HUS-532004799
...
25
CABLE BATTERY 6 GA 22" W/16W HUS-532146148
...
26
FUSE 20AMP HUS-532175158
...
27
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
28
CABLE GROUND 6 GA 21" 90T BLK HUS-532145491
...
29
SWITCH.SNAPMOUNT.NC HUS-532421062
...
30
IGNITION SWITCH HUS-532175566
...
33
KEY MLD GEN DELTA HUS-532140401
...
40
HARNESS.IGNITION HUS-532188024
...
41
Screws HUS-596437001
...
42
COVER.TERMINAL.RED HUS-532154336
...
43
KIT SOLENOID .95 HUS-532146154
...
45
AMMETER HUS-532122822
...
46
KIT.HOURMETER.SNAP-IN HUS-532169642
...
50
SWITCH.PTO.8TERMINAL.STD.BLK HUS-582107601
...
89
BRACKET SNAP-IN HOURMETER HUS-532169639
...
90
COVER.TERMINAL.BATTERY HUS-532435395
...
91
STRAP.BATTERY.MOUNT.FRONT(2 2) HUS-532190270
