Husqvarna YTKH 1542 XPC (954568465) (2004-03) Ride Mower

Model: YTKH 1542 XPC (954568465) (2004-03)

Back To Assemblies

Save Part Not Listed?
product name

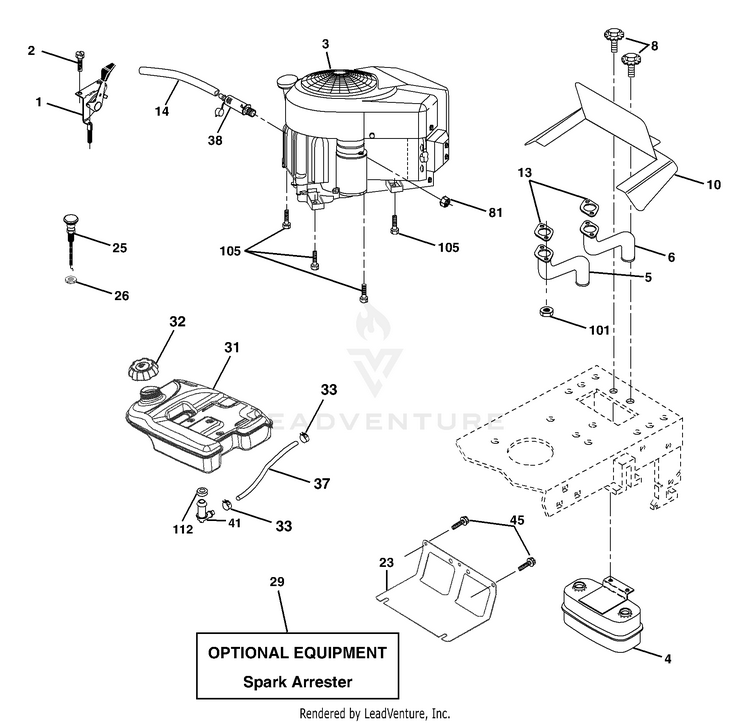

Engine

...
...
1
CONTROL, THROTTLE HUS-532170803
...
2
Screws HUS-596437001
...
4
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
5
EXHAUST TUBE LH KAWI HUS-532181444
...
6
EXHAUST TUBE RH KAWI HUS-532181442
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
10
SERVICE KIT HEAT SHIELD HUS-531154901
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
...
25
THROTTLE CONTROL HUS-532190784
...
26
Nut, Keps 3/8-24 unf HUS-873920600
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
31
4.0 REAR FUEL TANK HUS-532179022
...
32
FUEL CAP HUS-532179124
...
33
HOSE CLAMP HUS-532123487
...
37
HOSE.1/4".LOW.PERM.FUEL.LN.54" HUS-587044854
...
41
STEM FUEL TANK HUS-532139277
...
45
SCREW, 3/8-16X3/4 HUS-817000612
...
81
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
101
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
105
SCREW 3/8-16X1 HUS-817120616
...
112
BUSHING OUTLET T HUS-532003645
