Husqvarna YTHK 180 (HCYTHK180A) (1996-01) Ride Mower

Model: YTHK 180 (HCYTHK180A) (1996-01)

Back To Assemblies

Save Part Not Listed?
product name

Engine

...
...
1
CONTROL, THROTTLE HUS-532150715
...
2
Bolts HUS-596582501
...
4
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
5
PIPE.EXHAUST.LH.CV18/20 HUS-583954501
...
6
PIPE.EXHAUST.RH.CV18/20 HUS-583954801
...
7
CLIP T HUS-532002751
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
10
SERVICE KIT HEAT SHIELD HUS-531154901
...
14
Nipple Pipe 3/8 Npt X 4-1/2" HUS-813280336
...
15
VALUE.OIL.DRAIN HUS-532428287
...
16
Washers HUS-596238701
...
17
Bolt, Hex Head 3/8-16 UNC x 1-1/2 HUS-874930624
...
23
HEAT SHIELD HUS-532128953
...
24
SCREW HUS-817021008
...
25
CONTROL, CHOKE HUS-532145996
...
26
Nut, Keps 3/8-24 Unf HUS-873920600
...
29
KIT.SPARK ARRESTOR 794945 B&S (Flat Scrn) HUS-532137180
...
31
FUEL TANK 3.5G HUS-532151346
...
32
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
33
HOSE CLAMP HUS-532123487
...
34
PAD-SPACER LT HUS-532106082
...
37
HOSE.1/4".LOW.PERM.FUEL.LN.8" HUS-587044808
...
39
PAD IDLER TI HUS-532109227
...
40
BUSHING OUTLET T HUS-532003645
...
41
STEM FUEL TANK HUS-532139277
...
81
NUT.HEX..25-20.UNC HUS-532050675

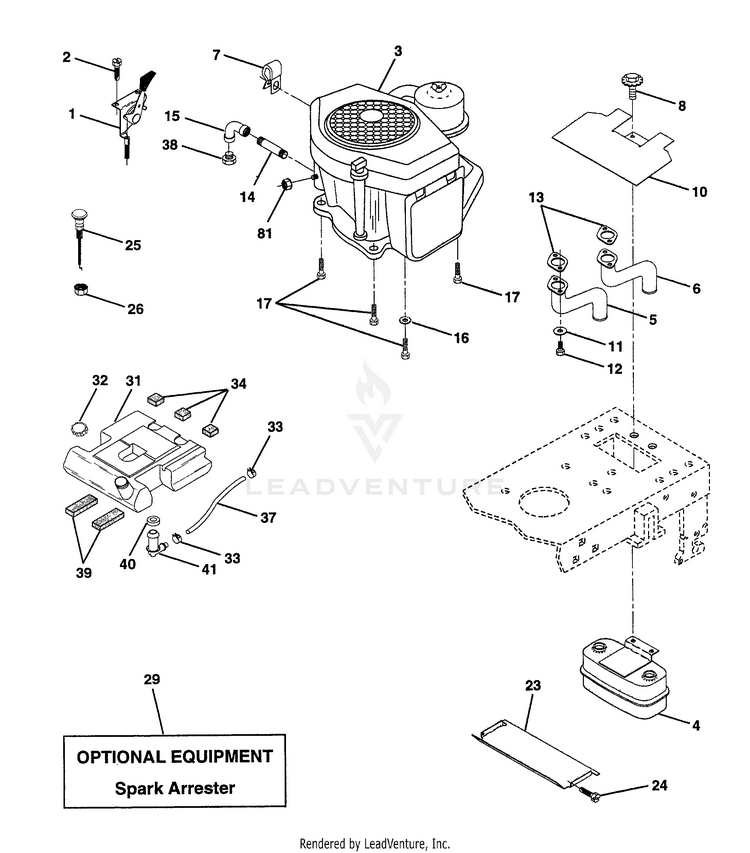

Schematic Image Zoomed
