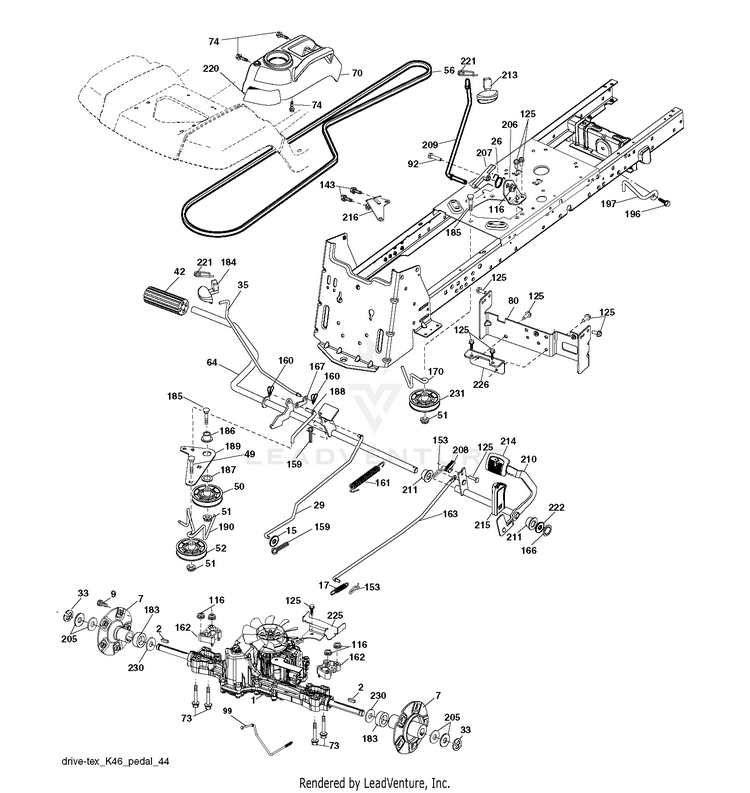

Husqvarna YTH2754 - 96041006203 (2010-04) Riding Tractor

Model: YTH2754 - 96041006203 (2010-04)

Back To Assemblies

Save Part Not Listed?
product name

DRIVE

...
...
225
SERVICE KIT KEEPER BELT KEEPER HUS-531149001
...
49
Bolts HUS-596136201
...
187
Washers HUS-596135501
...
160
GSPW Retainers HUS-596029401
...
206
BRACKET.MOUNT.CRUISE.LATCH HUS-532448596
...
231
IDLER.V-GROOVE.1.688.OFFSET HUS-532407287
...
186
SPACER.RETAINER HUS-532194321
...
153
RETAINER M HUS-532004497
...
70
CONSOLE.ASM.RH.GT.FC.HUSQ HUS-532439661
...
185
BOLT HUS-872110622
...
162
SPACER.TRANSAXLE.1" HUS-580457401
...
143
Screws HUS-596030701
...
222
WASHER 21/32 X 1-1/4 X 10 GA. HUS-879212010
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
80
SERVICE KIT TORQUE STRAP BLACK HUS-531064101
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
170
KEEPER.CENTER SPAN.1.688 HUS-532413430
...
29
ROD.BRAKE.K46 HUS-532403806
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
9
Bolts HUS-596218701
...
207
Latch HUS-587031402
...
189
SERVICE KIT BELLCRANK HUS-531169001
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
17
SPRING.BRAKE.K46.GREEN HUS-532413678
...
161
SPRING, RETURN LT HUS-532105709
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
26
SPRING.RETURN.CRUISE HUS-532199679
...
7
SERVICE.KIT HUB ASM HUB.ASM.WH HUS-531170101
...
196
SCREW 3/8-16X1 HUS-817000616
...
210
ROCKER.ASM.PEDAL.CONTR HUS-532197860
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
99
ROD.SPRING.BYPASS.K46.TEX.GT HUS-532415743
...
166
NUT.PUSH.625 HUS-532429164
...
116
GSPW Nuts HUS-596135701
...
74
Screws HUS-596134101
...
214
PEDAL.FORWARD.PAD.TEX HUS-532421263
...
220
REFLECTOR.RH.TEX GT HUS-532198908
...
33
E-RING LT HUS-812000001
...
163
Rods HUS-593861001
...
215
PEDAL.REVERSE.TEX.GT.4 HUS-532401723
...
35
Rods HUS-583864502
...
42
PAD, FOOT PEDAL HUS-510089501
...
209
Rods HUS-596869801
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318
...
205
WASHER HUS-532121748
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
230
WASHER.HARDENED HUS-532188967
...
92
Screws HUS-595305701
...
56
Belts HUS-592855201
...
226
SERVICE KIT BRKT.MOUNT.TORQUE. HUS-529846701
...
208
Gears HUS-596564101
...
213
KNOB.CONTROL.CRUSIE.HU HUS-532403119
...
64
SHAFT.ASM.PEDAL.BRK.CNTR HUS-532197865
...
1
Transaxle, TUFFTORQ K46 BN HUS-000000000
...
197
BRKT.ANIT-ROTATION.CLUTCH HUS-532199769
...
183
SPACER.SPLIT.800X.350 HUS-532400424
...
73
BOLT.HEX.FLNG.5/16-18X3.75 HUS-583613301
...
184
HANDLE.PARKING.BRAKE.H (BLK) HUS-532196439
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
216
BRACKET.PULLEY.IDLER.W/TEX HUS-532196131
...
2
KEY.SQUARE.187X2.500 HUS-532186211
...
159
Pins HUS-596029501
...
211
BEARING.NYLON HUS-532120183
