Husqvarna YTH2754 - 96041006201 (2008-11) Riding Tractor

Model: YTH2754 - 96041006201 (2008-11)

Back To Assemblies

Save Part Not Listed?
product name

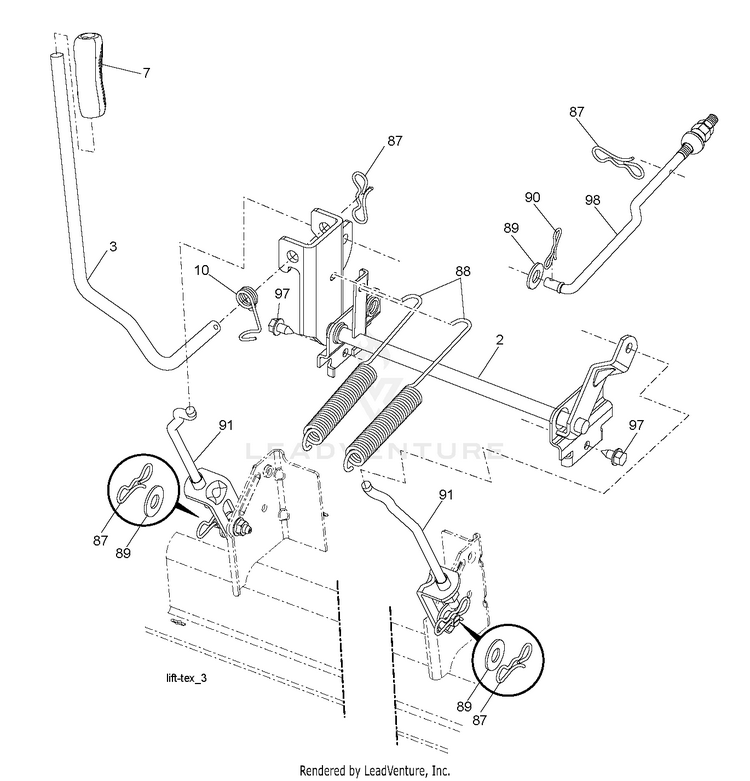

MOWER LIFT / DECK LIFT

...
...
87
PIN.COTTER.7/16.BOW TI. HUS-532194209
...
3
Levers HUS-596270601
...
97
SCREW, 3/8-16X3/4 HUS-817000612
...
2
SHAFT.ASM.CROSS.LIFT HUS-532422027
...
10
SPRING.TORSION.LIFT.HANDLE HUS-532196314
...
90
PIN.COTTER.5/16.BOW TI HUS-532194208
...
88
SPRINGS HUS-532195301
...
91
Links HUS-589464805
...
7
GRIP.HANDLE.LIFT.PVC.BLACK HUS-532411555
...
98
Links HUS-581506902
...
89
WASHER HUS-819171912
