Husqvarna YTH2648 TF - 96041017402 (2011-02) Riding Tractor

Model: YTH2648 TF - 96041017402 (2011-02)

Back To Assemblies

Save Part Not Listed?
product name

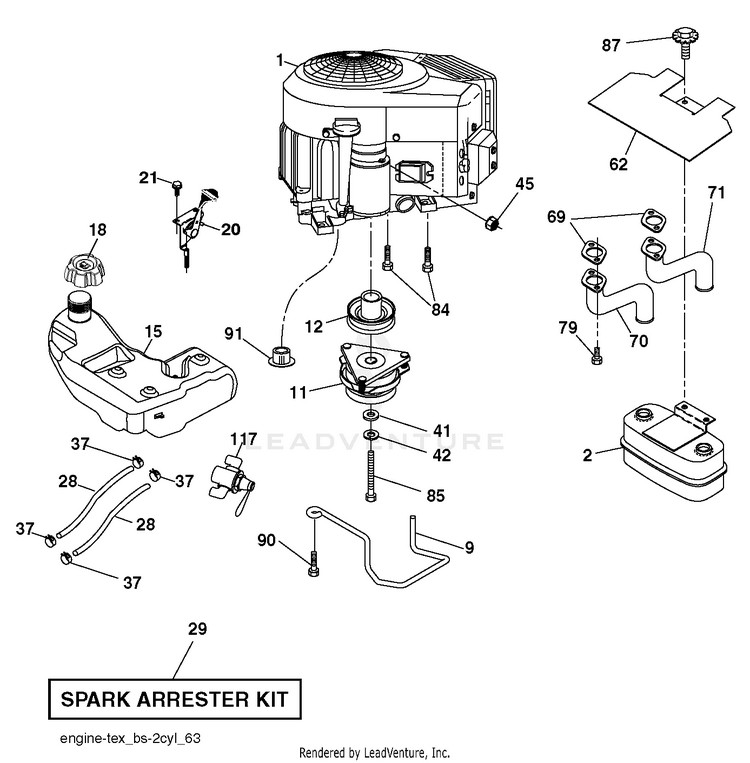

ENGINE

...
...
69
GASKET.MUFFLER HUS-532165391
...
84
SCREW.3/8-16 HUS-817060620
...
11
KIT.SVC.CLUTCH.ELECTRIC. HUS-532414336
...
18
CAP.ASSY.FUEL.3".N-EPA.GRY.498 HUS-584248702
...
91
BUSHING.1.375OD HUS-532187495
...
42
Washers HUS-596238901
...
71
EXHAUST.TUBE.RH.B&S.TWIN.INTEK HUS-581881001
...
9
Keepers HUS-596501502
...
37
HOSE CLAMP HUS-532123487
...
1
ENGINE B&S MODEL NO. 44P777-1522-B1 (438758) HUS-000000000
...
79
Screws HUS-596134202
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
20
CONTROL.TH/CK.COBRA.B&S.TWN.BK HUS-532423502
...
15
TANK FUEL HUS-532422804
...
21
Screws HUS-596321701
...
70
EXHAUST.TUBE.LH.BS/TWIN HUS-581881101
...
90
SCREW 3/8-16X1 HUS-817000616
...
2
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
117
VALVE FUEL RESERVE HUS-532420828
...
41
WASHER HUS-532126197
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
28
HOSE.1/4".LOW.PERM.FUEL.LN.54" HUS-587044854
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
87
BOLT 5/1618UNC X 3/4 W/ SEMS HUS-537171877
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
