Husqvarna YTH24V48 LS - 96043008900 (2009-12) Riding Tractor

Model: YTH24V48 LS - 96043008900 (2009-12)

Back To Assemblies

Save Part Not Listed?
product name

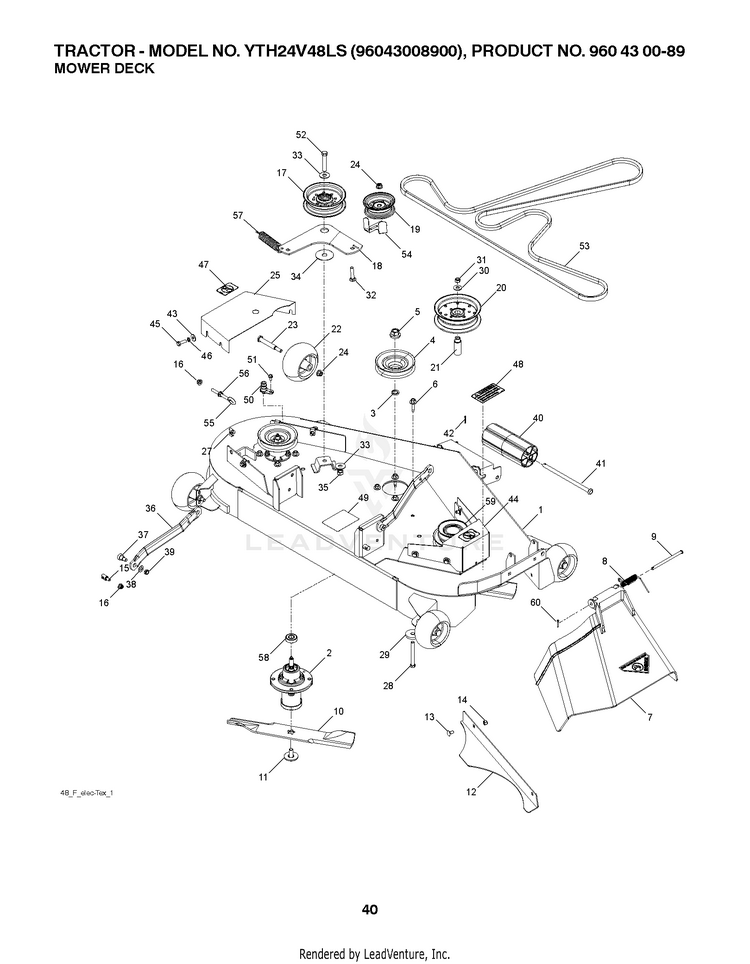

MOWER DECK / CUTTING DECK

...
...
41
Rods HUS-594092501
...
49
DECAL.DECK.BELT.ROUTING.48/54 HUS-531229002
...
34
WASHER HUS-532178515
...
45
Bolts HUS-596580801
...
33
Washers HUS-596437601
...
5
Nuts HUS-596134801
...
52
Bolts HUS-596435201
...
47
DECAL.DECK.6MIL.EURO.NOSTEP HUS-581724301
...
10
BLADE, 16-1/4" HUS-539113425
...
23
Bolts HUS-596434404
...
16
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
55
GSPW Bolts HUS-596240801
...
9
Pins HUS-595935501
...
56
GSPW Hardware HUS-596039201
...
39
Nuts HUS-596230801
...
18
ARM, IDLER, BLK HUS-574827102
...
58
BEARING, BALL HUS-539112050
...
43
GSPH HUS-596134901
...
20
Pulleys HUS-589766102
...
42
CLIP RETAINER HUS-532178062
...
28
HCS 3/8-16 X 3-1/2 GR5 ZD HUS-539108271
...
37
Bolts HUS-596241101
...
46
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
15
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
30
GSPW Washers HUS-596433701
...
2
MANDREL.DECK.ASSEMBLY HUS-539112170
...
- -
Decks HUS-594742001
...
36
SERVICE KIT ARM ARM.SUSPENSION HUS-531169201
...
48
DECAL, CAUTION HUS-539113224
...
57
Springs HUS-596645601
...
22
WHEEL GAGE DONUT HUS-532133957
...
32
RHSNB 3/8-16X1-3/4 HUS-539990923
...
17
PULLEY.IDLER.MWR.STATI.LH HUS-532196104
...
54
SERVICE KIT GUARD HUS-531165901
...
59
RP PULLEY, COLLECTION 48 HUS-575352901
...
21
BUSHING, IDLER HUS-575224501
...
4
PULLEY.DRIVEN.DECK.48' HUS-532174375
...
3
WASHER.SPACER.MANDREL HUS-532187690
...
8
Springs HUS-596646001
...
35
Nuts HUS-595901901
...
29
Washers HUS-596770301
...
1
Decks HUS-594742001
...
14
Nuts HUS-596583702
...
31
GSPW Nuts HUS-596240901
...
19
PULLEY.IDLER.FLAT HUS-532177968
...
44
SHIELD, BELT, RH 48 ORG HUS-575967202
...
51
BOLT 1/4-20 X 1/2 HWST HUS-539108461
...
13
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
50
PORT.WASHOUT HUS-532415598
...
38
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
60
GSPW Retainers HUS-596029401
...
6
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
53
BELT, 135" EL HUS-574845602
...
7
DISCHARGE CHUTE 48" HUS-539110732
...
12
CONFINEMENT PLATE 48" BLK HUS-539113427
...
25
SHIELD.BELT.LH.ORANGE LH HUS-575224702
...
11
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
27
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
24
GSPW Nuts HUS-521996502
...
40
NOSE ROLLER 48" HUS-532176066
