Husqvarna YTH24V42 LS - 96048001300 (2010-12) Riding Tractor

Model: YTH24V42 LS - 96048001300 (2010-12)

Back To Assemblies

Save Part Not Listed?
product name

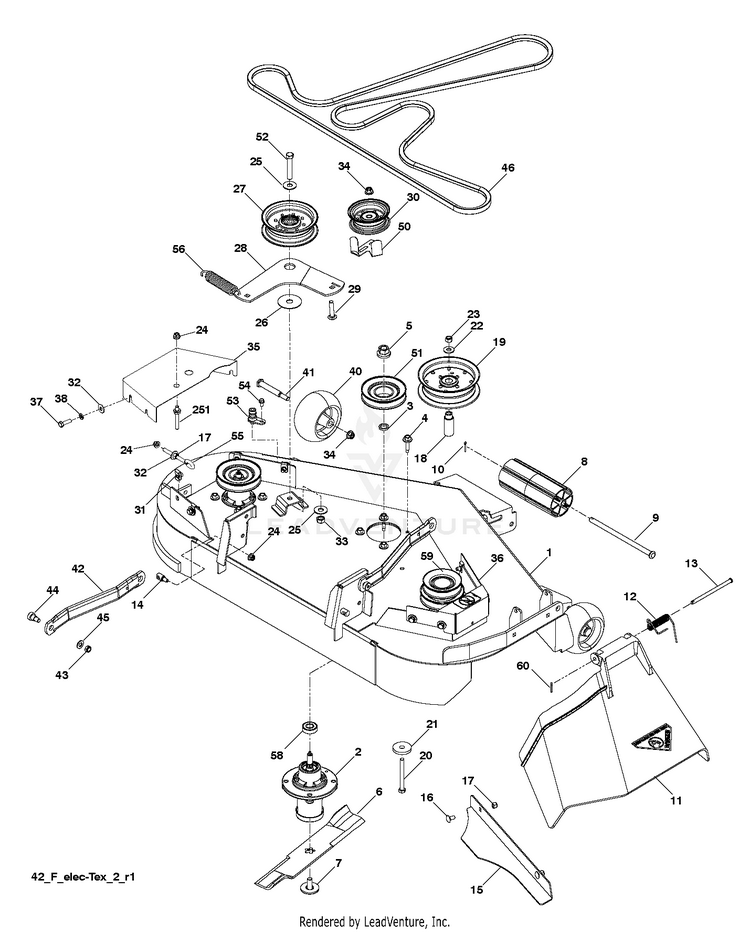

MOWER DECK / CUTTING DECK

...
...
26
WASHER HUS-532178515
...
29
RHSNB 3/8-16X1-3/4 HUS-539990923
...
8
NOSE ROLLER 48" HUS-532176066
...
18
BUSHING, IDLER HUS-575224501
...
36
SHIELD, BELT, RH 42 ORG HUS-575967102
...
19
Pulleys HUS-589766102
...
45
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
17
Nuts HUS-596583702
...
16
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
32
GSPH HUS-596134901
...
43
Nuts HUS-596230801
...
24
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
35
SHIELD.BELT.LH.ORANGE HUS-575224702
...
56
Springs HUS-596645601
...
20
HCS 3/8-16 X 3-1/2 GR5 ZD HUS-539108271
...
58
BEARING, BALL HUS-539112050
...
14
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
--
DECK SVC W/DECALS 42 YTH ORNGE HUS-575438001
...
30
PULLEY.IDLER.FLAT HUS-532177968
...
1
DECK SVC W/DECALS 42 YTH ORNGE HUS-575438001
...
46
BELT, 42" FAB DECK HUS-574845601
...
6
BLADE, 14 5/8" HUS-539112078
...
53
PORT.WASHOUT HUS-532415598
...
22
GSPW Washers HUS-596433701
...
5
Nuts HUS-596134801
...
50
SERVICE KIT GUARD HUS-531165901
...
12
Springs HUS-596646001
...
23
GSPW Nuts HUS-596240901
...
4
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
51
PULLEY, MANDREL 4.08 OP HUS-575224401
...
40
WHEEL GAGE DONUT HUS-532133957
...
44
Bolts HUS-596241101
...
25
Washers HUS-596437601
...
31
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
54
BOLT 1/4-20 X 1/2 HWST HUS-539108461
...
15
CONFINEMENT.PLATE.42".BLACK HUS-539112413
...
38
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
27
PULLEY.IDLER.MWR.STATI.LH HUS-532196104
...
7
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
9
Rods HUS-594092501
...
11
DISCHARGE CHUTE 42" HUS-539110731
...
41
Bolts HUS-596434404
...
33
NUT.LOCK.FLANGE.7/16 HUS-873900700
...
21
Washers HUS-596770301
...
37
Bolts HUS-596580801
...
34
GSPW Nuts HUS-521996502
...
2
MANDREL.DECK.ASSEMBLY HUS-539112170
...
55
GSPW Bolts HUS-596240801
...
28
ARM, IDLER, BLK HUS-574827102
...
42
SERVICE KIT ARM ARM.SUSPENSION HUS-531169201
...
3
WASHER.SPACER.MANDREL HUS-532187690
...
13
Pins HUS-595935501
...
10
PIN.COTTER.5/16.BOW TI HUS-532194208
...
59
PULLEY, COLLECTION 42 HUS-575416201
...
60
GSPW Retainers HUS-596029401
...
52
Bolts HUS-596435201
...
251
KEEPER.BELT.ENGINE HUS-532164173
