Husqvarna YTH24V42 LS - 96048001300 (2010-12) Riding Tractor

Model: YTH24V42 LS - 96048001300 (2010-12)

Back To Assemblies

Save Part Not Listed?
product name

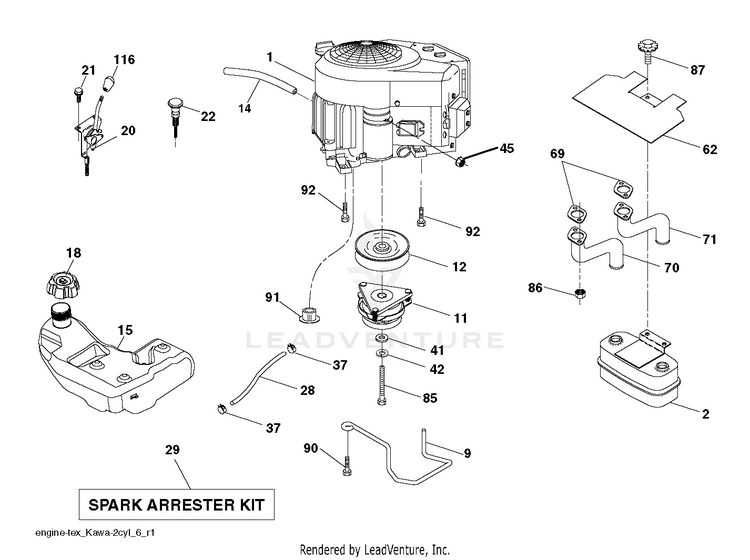

ENGINE

...
...
71
TUBE.EXHAUST.RH.FR961/FR730 HUS-583955701
...
22
CONTROL.CHOKE.ERGO.PUSH-IN.BLA HUS-532191596
...
37
HOSE CLAMP HUS-532123487
...
11
KIT.SVC.CLUTCH.ELECTRIC. HUS-532414336
...
9
Keepers HUS-596501502
...
21
Screws HUS-596321701
...
18
CAP.ASM.FL.RITCH.3"E10.SYM.498 HUS-532439208
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
116
KNOB - SHIFT HUS-539132624
...
91
BUSHING.1.375OD HUS-532187495
...
90
SCREW 3/8-16X1 HUS-817000616
...
86
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
14
TUBE, DRAIN OIL ASM. HUS-532148456
...
69
GASKET HUS-532178151
...
20
CONTROL.THROTTLE.PRO. HUS-532424341
...
87
BOLT 5/1618UNC X 3/4 W/ SEMS HUS-537171877
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
28
HOSE.1/4".LOW.PERM.FUEL.LN.54" HUS-587044854
...
1
Engine Kawa Model FR691V-AS15 HUS-000000000
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
2
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
41
WASHER HUS-532126197
...
42
Washers HUS-596238901
...
92
SCREW 3/8-16X1 HUS-817120616
...
70
TUBE.EXHAUST.LH.FR961/FR730 HUS-583955601
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
15
FUEL TANK, 3GAL, 2.25"NECK, 20 HUS-599306004
