Husqvarna YTH24K54 - 96045007900 (2021-01) Riding Tractor

Model: YTH24K54 - 96045007900 (2021-01)

Back To Assemblies

Save Part Not Listed?
product name

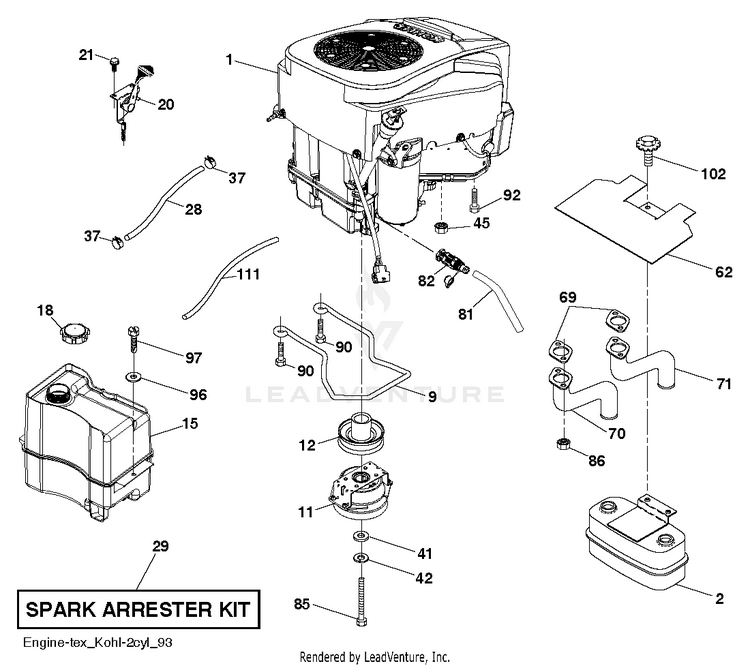

ENGINE

...
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
9
Keepers HUS-596501502
...
96
Washers HUS-596135301
...
1
Engine Kohler Model No. KT7.24HP.SC.LT.US/C(529818501) HUS-000000000
...
90
SCREW 3/8-16X1 HUS-817000616
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
21
Screws HUS-596321701
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
11
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 HUS-587241601
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
71
PIPE.EXHAUST.RH.CV18/20 RH HUS-583954801
...
28
HOSE.1/4".LOW.PERM.FUEL.LN.22" HUS-587044822
...
82
VALUE.OIL.DRAIN HUS-532428287
...
41
WASHER HUS-532126197
...
42
Washers HUS-596238901
...
15
FUEL TANK ASSEMBLY 2.5 GAL HUS-597954504
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
45
Hardware HUS-596133601
...
37
HOSE CLAMP HUS-532123487
...
69
GASKET.EXHAUST.KOHL.CV18-CV26 HUS-532186054
...
20
CONTROL.THROTTLE.LH.COBRA.KNOB HUS-532177328
...
86
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
70
PIPE.EXHAUST.LH.CV18/20 LH HUS-583954501
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
92
SCREW 3/8-16X1 HUS-817120616
...
85
BOLT.HEX.7/16-20X3.75.GR5.RED HUS-501606601
...
111
Hoses HUS-587044580
