Husqvarna YTH24K54 - 96045007900 (2021-01) Riding Tractor

Model: YTH24K54 - 96045007900 (2021-01)

Back To Assemblies

Save Part Not Listed?
product name

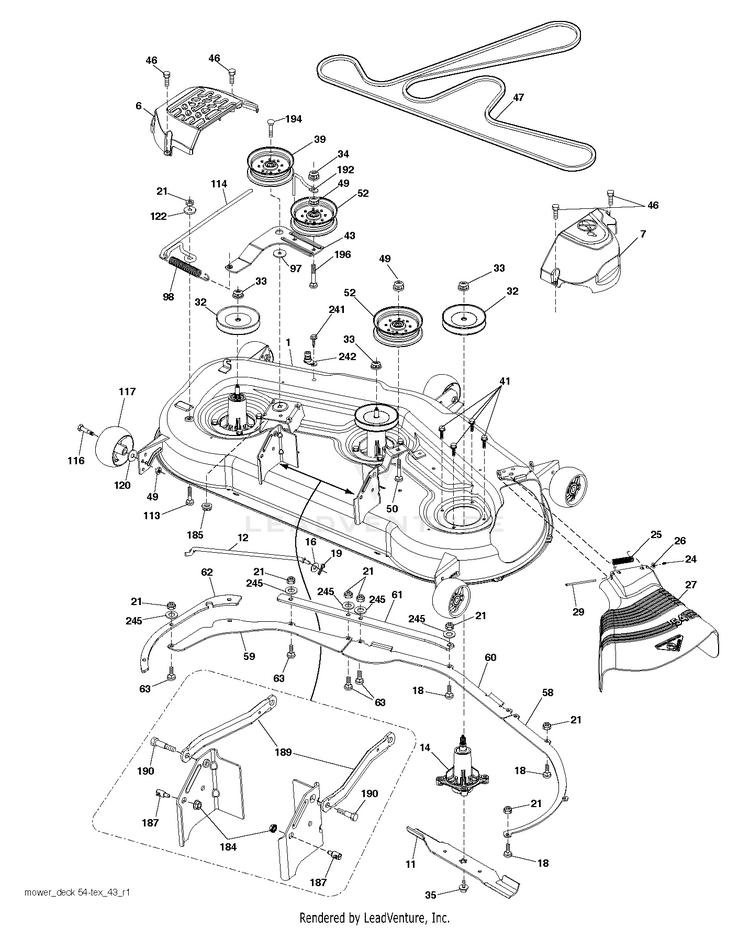

MOWER DECK / CUTTING DECK

...
...
187
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
12
ROD.ANTI.SWAY.48/54"K4 HUS-532404851
...
117
WHEEL.GAUGE.RALLY HUS-589527301
...
245
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
58
SERVICE KIT BAFFLE.RIGHT.54" HUS-531168601
...
35
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
196
Bolts HUS-596337801
...
120
GSPH HUS-596134901
...
114
ROD TENSION RELIEF HUS-532187556
...
1
DECK SVC 54" 417743X668 Kit, Svc, 54" Deck Weldment HUS-532418230
...
190
BOLT.SHOULDER HUS-532196539
...
189
LINK FIXED MOWER DRAWBAR BLACK HUS-536050602
...
61
PLATE.REIN.FRONT.BOLT54"X431 HUS-585322605
...
116
Bolts HUS-596434404
...
33
Nuts HUS-596134801
...
122
BUSHING.RELIEF.TENSION HUS-532187557
...
41
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
19
PIN.COTTER.5/16.BOW TI HUS-532194208
...
97
WASHER HUS-532178515
...
194
BOLT.HEX.WASHER.HEAD.7/16-24X HUS-874490736
...
192
KEEPER.BELT.IDLER.54"T HUS-532198468
...
185
NUT.LOCK.FLANGE.7/16 HUS-873900700
...
50
Bolts HUS-596136301
...
6
COVER.MANDREL.LH.54"20 LH HUS-532196066
...
7
COVER.MANDREL.RH.54.20 RH HUS-532197181
...
242
PORT.WASHOUT HUS-532415598
...
52
PULLEY.IDLER.2006 HUS-532196106
...
241
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
24
CAP-SLEEVE LT HUS-532105304
...
63
BOLT.CARRIAGE.5/16-18 HUS-872110510
...
..
DECK ASM SVC.54"E.HDHP.GWB.668 HUS-532418229
...
39
PULLEY.IDLER.MWR.STATI.LH HUS-532196104
...
29
Rods HUS-595297001
...
98
SPRING BELT TENSIONER BLACK HUS-547878302
...
11
54" HIGH LIFT BLADE HUS-594892901
...
26
NUT PUSH M HUS-532110452
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
21
Hardware HUS-596040501
...
113
Bolts HUS-596435701
...
14
KIT.MANDREL.GREASEABLE.TALL HUS-587820301
...
60
SERVICE KIT BAFFLE BAFFLE CENT HUS-531168801
...
..
COUPLING.QUICK CONNECT HUS-532416405
...
16
Washers HUS-596133201
...
62
REINFORCEMENT PLATE 54 SIDE BO HUS-585322806
...
32
PULLEY MANDREL HUS-532173436
...
47
BELT.DECK.DRIVE.BELT.54 HUS-587686701
...
43
SERVICE KIT ARM.IDLER HUS-531169301
...
25
TORSION SPRING HUS-539107609
...
59
SERVICE KIT BAFFLE.LEFT.54" BA HUS-531168701
...
49
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
18
Bolts HUS-596136401
...
184
GSPW Nuts HUS-596135701
...
34
Nuts HUS-596322601
...
27
DEFLECTOR.BLACK.54" HUS-532187257
