Husqvarna YTH24K48 - 96048005400 (2014-01) Riding Tractor

Model: YTH24K48 - 96048005400 (2014-01)

Back To Assemblies

Save Part Not Listed?
product name

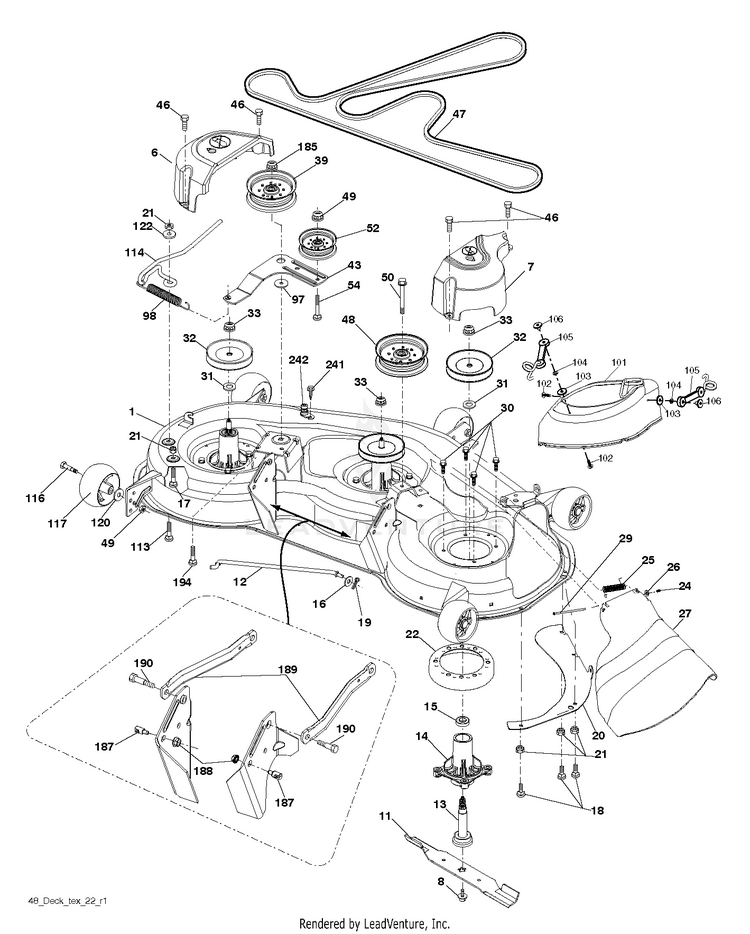

MOWER DECK / CUTTING DECK

...
...
15
BEARING HUS-532110485
...
17
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
24
CAP-SLEEVE LT HUS-532105304
...
7
COVER.RH.MANDREL HUS-587452401
...
114
ROD.TENSION.RELIEF.TEX (2 2) HUS-532197451
...
185
NUT.LOCK.FLANGE.7/16 HUS-873900700
...
43
SERVICE KIT ARM.IDLER HUS-531169301
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
13
MANDRELS HUS-597023501
...
6
COVER.MANDREL.LH.48"(2 2) HUS-532197248
...
11
48" HI-LIFT BLADE HUS-532180054
...
194
BOLT.HEX.WASHER.HEAD.7/16-24X HUS-874490736
...
188
GSPW Nuts HUS-596135701
...
190
BOLT.SHOULDER HUS-532196539
...
241
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
20
SERVICE KIT BAFFLE BAFFLE HUS-531167501
...
122
BUSHING.RELIEF.TENSION HUS-532187557
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
242
PORT.WASHOUT HUS-532415598
...
29
Rods HUS-595297001
...
49
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
47
Belts- 197242 HUS-593773401
...
22
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
- -
COUPLING.QUICK CONNECT HUS-532416405
...
116
Bolts HUS-596434404
...
187
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
xx
DECK.ASM SVC.48".5GWB.ORANGE HUS-532418223
...
33
Nuts HUS-596134801
...
48
PULLEY.IDLER.2006 HUS-532196106
...
102
Screws HUS-596039001
...
12
ROD.ANTI.SWAY.48/54"K4 HUS-532404851
...
189
SERVICE KIT ARM ARM.SUSPENSION HUS-531169201
...
105
LATCH.ASM.MULCH/BAGGER HUS-597000601
...
16
GSPH HUS-596134901
...
50
SCREW TT 3/8-16X2.31 UNC HUS-596564004
...
27
DEFLECTOR.ASM.BLACK.48" HUS-532180655
...
98
SPRING BELT TENSIONER BLACK HUS-547878302
...
52
PULLEY.IDLER.FLAT HUS-532177968
...
97
WASHER HUS-532178515
...
101
COVER.MULCH.48" HUS-532176898
...
54
GSPW Bolts HUS-596136101
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
--
KIT.MANDREL.GREASEABLE.TALL HUS-587820301
...
1
DECK.SVC 48".4GWB.O HUS-532418224
...
19
PIN.COTTER.5/16.BOW TI HUS-532194208
...
8
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
113
Bolts HUS-596435701
...
117
WHEEL.GAUGE.RALLY HUS-589527301
...
25
TORSION SPRING HUS-539107609
...
104
LOCKWASHER #10 HUS-810071000
...
21
Hardware HUS-596040501
...
18
Bolts HUS-596136401
...
14
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
26
NUT PUSH M HUS-532110452
...
120
GSPH HUS-596134901
...
32
MANDREL.PULLEY.38.BRIGHT.ZINC HUS-532173435
...
106
Nuts HUS-596987401
...
39
PULLEY.IDLER.MWR.STATI.LH HUS-532196104
...
103
WASHER HUS-819061216
