Husqvarna YTH24K48 - 96048005400 (2014-01) Riding Tractor

Model: YTH24K48 - 96048005400 (2014-01)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
87
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
69
GASKET.EXHAUST.KOHL.CV18-CV26 HUS-532186054
...
15
FUEL TANK, 3GAL, 2.25"NECK, 20 HUS-599306004
...
90
SCREW 3/8-16X1 HUS-817000616
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
20
CONTROL.THROTTLE.LH.COBRA.KNOB HUS-532177328
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
9
Keepers HUS-596501502
...
37
HOSE CLAMP HUS-532123487
...
41
WASHER HUS-532126197
...
82
VALUE.OIL.DRAIN HUS-532428287
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
92
SCREW 3/8-16X1 HUS-817120616
...
1
Engine Kohl No. SV725-3031 (583918201) HUS-000000000
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
21
Screws HUS-596321701
...
70
PIPE.EXHAUST.LH.CV18/20 HUS-583954501
...
79
Screws HUS-596134201
...
11
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 HUS-587241601
...
18
CAP.ASM.FL.RITCH.3"E10.SYM.498 HUS-532439208
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
71
PIPE.EXHAUST.RH.CV18/20 HUS-583954801
...
85
BOLT.HEX.7/16-20X3.75.GR5.RED HUS-501606601
...
22
CONTROL.CHOKE.ERGO.PUSH-IN.BLA HUS-532191596
...
42
Washers HUS-596238901

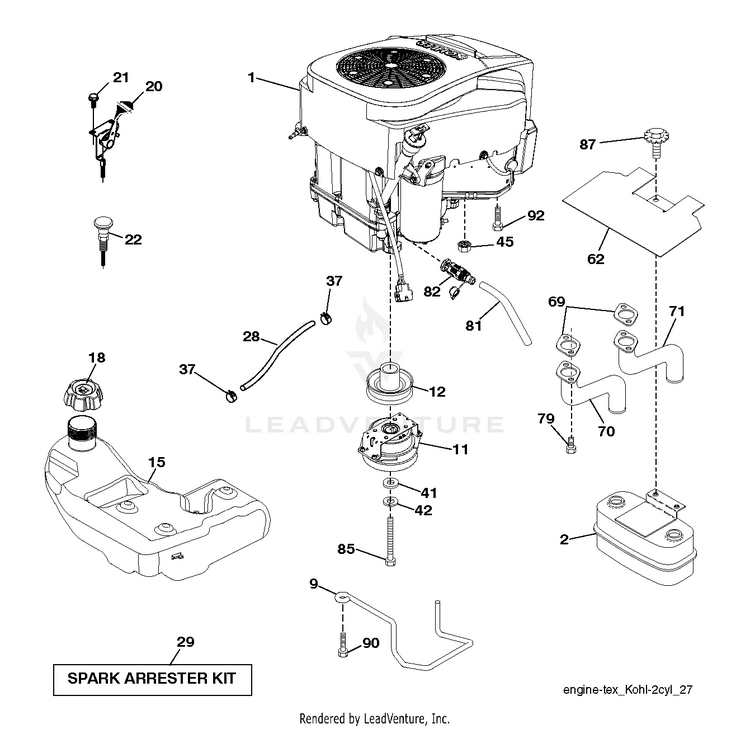

Schematic Image Zoomed
