Husqvarna YTH2454 T - 917.279220 (2006-05) Riding Tractor

Model: YTH2454 T - 917.279220 (2006-05)

Back To Assemblies

Save Part Not Listed?
product name

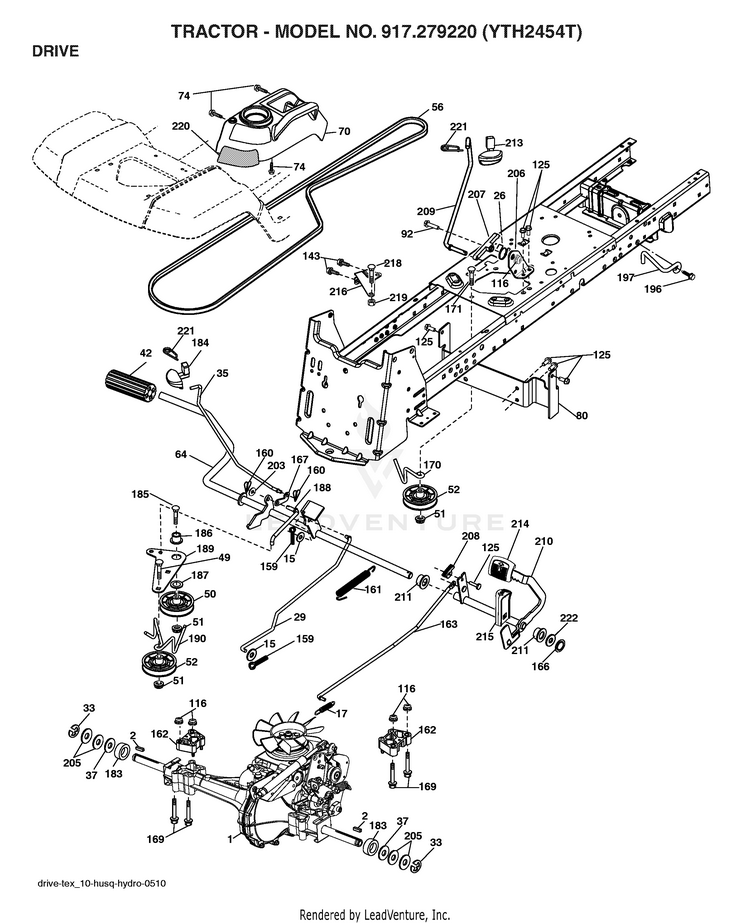

DRIVE

...
...
33
E-RING LT HUS-812000001
...
162
SPACER.TRANSAXLE.1" HUS-580457401
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
186
SPACER.RETAINER HUS-532194321
...
187
Washers HUS-596135501
...
163
ROD.PEDAL.CONTROL.0510 HUS-532199000
...
219
SPACER.FENDER HUS-532195780
...
92
Screws HUS-595305701
...
203
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
17
SPRING.BRAKE.HG3000/3500 HUS-532197296
...
29
ROD.BRAKE.0610.PEDAL.CONTROL HUS-532199467
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
215
PEDAL.REVERSE.TEX.GT.4 HUS-532401723
...
189
SERVICE KIT BELLCRANK HUS-531169001
...
170
KEEPER.V-IDLER.CENTER. HUS-532194322
...
183
SPACER AXLE HUS-532137057
...
205
WASHER HUS-532121748
...
74
Screws HUS-596134101
...
216
BRACKET.PULLEY.IDLER.W/TEX HUS-532196131
...
171
Bolts HUS-596136301
...
166
NUT.PUSH.625 HUS-532429164
...
218
Screws HUS-595305701
...
143
Screws HUS-596030701
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
26
SPRING.RETURN.CRUISE HUS-532199679
...
148
SCREW, 3/8-16X3/4 HUS-817000612
...
64
SHAFT.ASM.PEDAL.BRK.CNTR HUS-532197865
...
2
SQUARE KEY HUS-532123583
...
211
BEARING.NYLON HUS-532120183
...
214
PEDAL.FORWARD.PAD.TEX HUS-532421263
...
208
Gears HUS-596564101
...
56
V-BELT. HUS-532140218
...
160
GSPW Retainers HUS-596029401
...
116
GSPW Nuts HUS-596135701
...
161
SPRING, RETURN LT HUS-532105709
...
197
BRKT.ANIT-ROTATION.CLUTCH HUS-532199769
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
213
KNOB.CONTROL.CRUSIE.HU HUS-532403119
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
220
REFLECTOR.RH.TEX GT HUS-532198908
...
209
Rods HUS-596869801
...
159
Pins HUS-596029501
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
210
ROCKER.ASM.PEDAL.CONTR HUS-532197860
...
35
Rods HUS-583864502
...
37
WASHER HUS-532121749
...
70
CONSOLE.ASM.RH.GT.FC.HUSQ HUS-532439661
...
80
BRKT.STRP.TRQ.LT.HYD.C HUS-532400507
...
169
BOLT.HEX.FLNG.5/16-18X3.75 HUS-583613301
...
42
PAD, FOOT PEDAL HUS-510089501
...
206
BRACKET.MOUNT.CRUISE.LATCH HUS-532448596
...
49
Bolts HUS-596136201
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318
...
196
SCREW 3/8-16X1 HUS-817000616
...
185
Bolts HUS-596435101
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
207
Latch HUS-587031402
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
184
HANDLE.PARKING.BRAKE.H (BLK) HUS-532196439
