Husqvarna YTH2454 - 96043005300 (2007-12) Riding Tractor

Model: YTH2454 - 96043005300 (2007-12)

Back To Assemblies

Save Part Not Listed?
product name

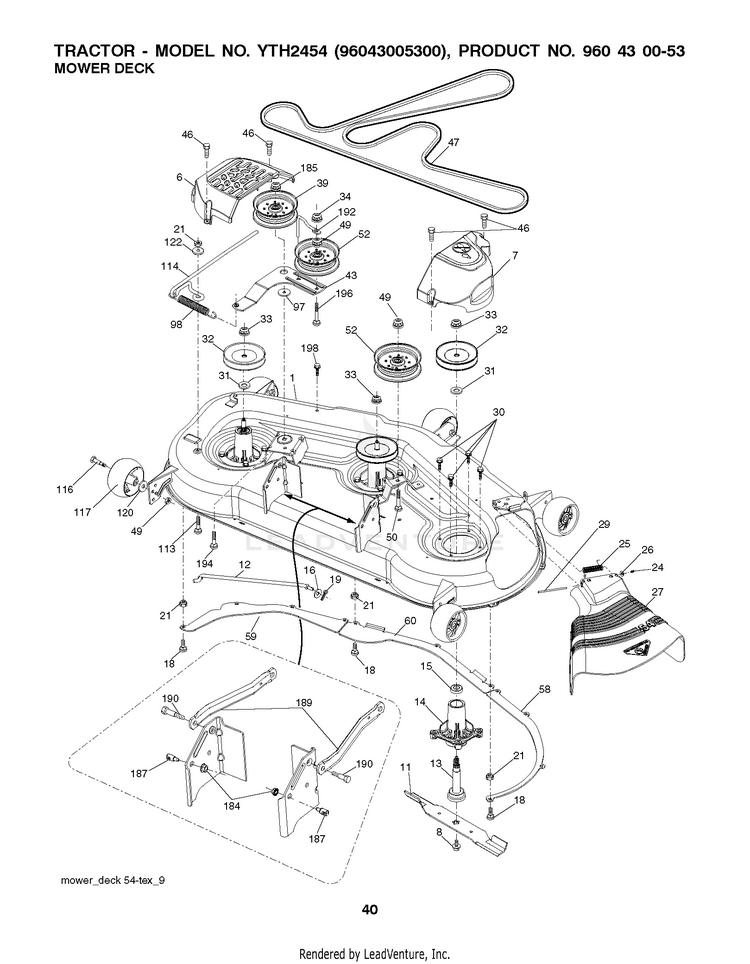

MOWER DECK / CUTTING DECK

...
...
32
PULLEY MANDREL HUS-532173436
...
114
ROD TENSION RELIEF HUS-532187556
...
196
Bolts HUS-596337801
...
43
SERVICE KIT ARM.IDLER HUS-531169301
...
xx
KIT.MANDREL.GREASEABLE.TALL "INCL HOUSING SHAFT ASSEMBLY AND BEARING ONLY. PULLEY,NUT,WASHER AND BLADE BOLT WASHERS NOT INCLUDED" HUS-587820301
...
29
Rods HUS-595297001
...
50
Bolts HUS-596136301
...
60
SERVICE KIT BAFFLE BAFFLE CENT HUS-531168801
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
187
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
194
BOLT.HEX.WASHER.HEAD.7/16-24X HUS-874490736
...
120
GSPH HUS-596134901
...
21
Hardware HUS-596040501
...
97
WASHER HUS-532178515
...
24
CAP-SLEEVE LT HUS-532105304
...
33
Nuts HUS-596134801
...
116
Bolts HUS-596434404
...
192
KEEPER.BELT.IDLER.54"T HUS-532198468
...
98
SPRING BELT TENSIONER BLACK HUS-547878302
...
18
Bolts HUS-596136401
...
122
BUSHING.RELIEF.TENSION HUS-532187557
...
26
NUT PUSH M HUS-532110452
...
113
Bolts HUS-596435701
...
13
MANDRELS HUS-597023501
...
19
PIN.COTTER.5/16.BOW TI HUS-532194208
...
11
54" MULCH BLADE HUS-532187255
...
6
COVER.MANDREL.LH.54"20 LH HUS-532196066
...
47
BELT.DECK.DRIVE.BELT.54 HUS-587686701
...
39
PULLEY.IDLER.MWR.STATI.LH LH HUS-532196104
...
7
COVER.MANDREL.RH.54.20 RH HUS-532197181
...
xx
DECK.SVC.54".5GWB.GREY COMPLETE HUS-532199298
...
11
54" MULCH BLADE HUS-532187255
...
8
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
52
PULLEY.IDLER.2006 HUS-532196106
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
25
TORSION SPRING HUS-539107609
...
49
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
198
SCREW 3/8-16X1/2 HUS-817670608
...
27
DEFLECTOR.BLACK.54" HUS-532187257
...
15
BEARING HUS-532110485
...
16
GSPH HUS-596134901
...
11
54" HIGH LIFT BLADE HUS-594892901
...
190
BOLT.SHOULDER HUS-532196539
...
185
NUT.LOCK.FLANGE.7/16 HUS-873900700
...
58
SERVICE KIT BAFFLE.RIGHT.54" HUS-531168601
...
59
SERVICE KIT BAFFLE.LEFT.54" BA HUS-531168701
...
117
WHEEL.GAUGE.RALLY HUS-589527301
...
184
GSPW Nuts HUS-596135701
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
14
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
34
Nuts HUS-596322601
...
12
ROD.ANTI.SWAY.48/54"K4 HUS-532404851
...
189
SERVICE KIT ARM ARM.SUSPENSION HUS-531169201
...
1
DECK.SVC.54".5GWB.GREY HUS-532199298
