Husqvarna YTH2448 - 96015000103 (2005-01) Riding Tractor

Model: YTH2448 - 96015000103 (2005-01)

Back To Assemblies

Save Part Not Listed?
product name

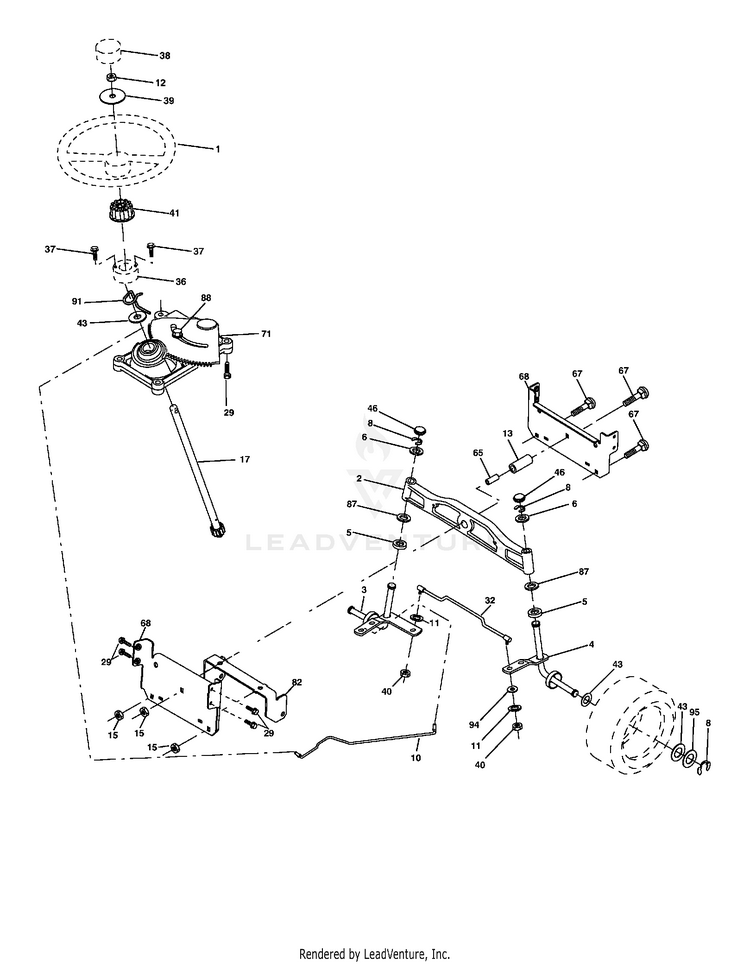

STEERING

...
...
94
GSPH 819121414 HUS-596134901
...
3
KIT SPINDLE ASM.PNT.LH.15 532169840 HUS-596873901
...
67
BOLT CARRIAGE 872110618 HUS-872110618
...
29
SCREW, 3/8-16X3/4 817000612 HUS-817000612
...
65
SPACER.BRACE.AXLE 532160367 HUS-532414736
...
43
WASHER 532121749 HUS-532121749
...
6
WASHER 532121748 HUS-532121748
...
37
SCREW.TT.#10-32X.5.3/8.FLANGE 532152927 HUS-532152927
...
46
CAP.SPINDLE.BLACK 532121232 HUS-532121232
...
15
NUT.HEX.FLANGE.3/8-16.LOCKNUT 532145212 HUS-532409149
...
88
BOLT, SHOULDER 7/16-20 532175118 HUS-532175118
...
68
SERVICE KIT BRACE.AXLE.1 532169827 HUS-531167401
...
5
WASHER THRUST 532124931 HUS-532006266
...
17
SHAFT ASM STRG 532177883 HUS-532177883
...
11
Washers 810040600 HUS-596238701
...
40
NUT CROWNLOCK 3/8-24 873540600 HUS-873540600
...
2
AXLE.ASM.LT.CAST.LGHTWGHT 532184706 HUS-532193542
...
36
KIT.BUSHING.STEERING. 532155105 HUS-532155108
...
82
SERVICE.KIT BRACKET 532169835 HUS-531170201
...
13
TUBE, PIVOT AXLE 532136518 HUS-532136518
...
12
NUT.HEX.1/2-20 873940800 HUS-873940800
...
1
STEERING WHEEL.PREM.2.BLK 532193651 HUS-532186094
...
95
WASHER.HARDENED 532188967 HUS-532188967
...
91
CLIP.STEERING 532175553 HUS-532175553
...
71
SERVICE KIT STEERING ASM 532175146 HUS-531167801
...
38
INSERT.CAP.STRG.WH.GRAY 532193652 HUS-532193652
...
4
KIT SPINDLE ASM.PNT.RH.15" 532169839 HUS-596873801
...
32
ROD TIE BALL J WSL 532180580 HUS-532180580
...
41
KIT.SRVC.STEERINGSHAFT.ADAPTER 532186737 HUS-587738905
...
8
RING CLIP 812000029 HUS-812000029
...
39
WASHER 9/16"ID, 2 3/8"OD 819183812 HUS-819183812
...
10
DRAGLINK.15".TIRES.2001 532175121 HUS-532175121
...
87
WASHER, FLAT .781 X 1 1/2" 532173966 HUS-532173966
