Husqvarna YTH2448 - 96015000103 (2005-01) Riding Tractor

Model: YTH2448 - 96015000103 (2005-01)

Back To Assemblies

Save Part Not Listed?
product name

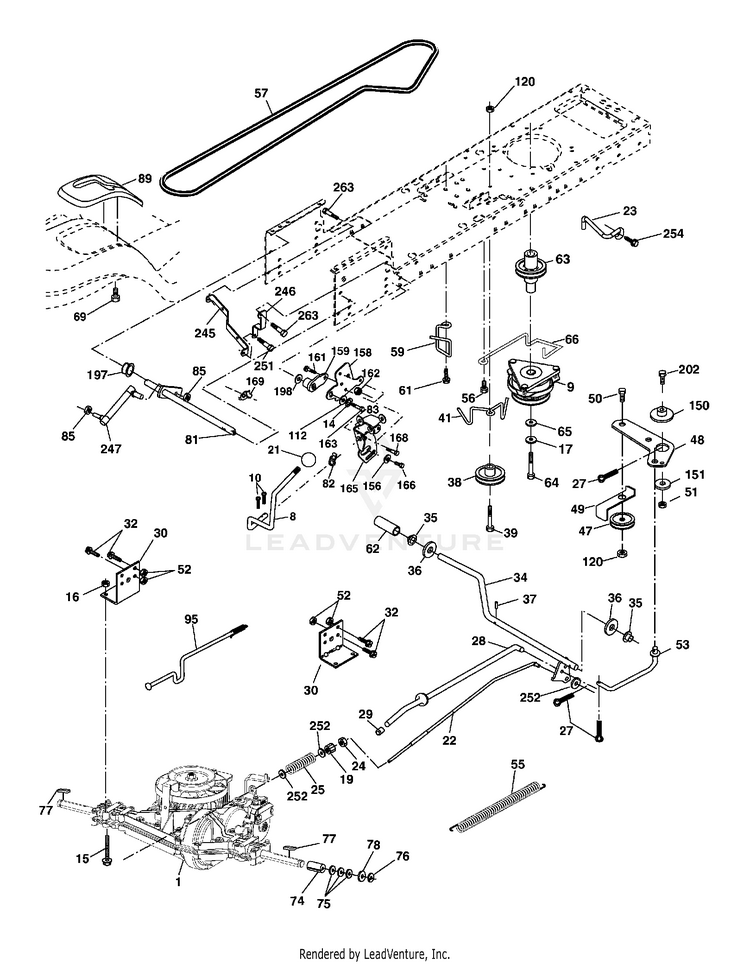

DRIVE

...
...
41
KEEPER, BELT IDLER 532175556 HUS-532175556
...
34
SHAFT, FOOT PEDAL 532175578 HUS-532175578
...
27
Pins 876020412 HUS-596029501
...
82
SHIFT SPRING 532165711 HUS-532165711
...
22
ROD.BRAKE 532178141 HUS-532178141
...
74
SPACER AXLE 532137057 HUS-532137057
...
158
BRACKET.SHIFT.MOUNT 532165589 HUS-532437458
...
76
E-RING LT 812000001 HUS-812000001
...
21
KNOB.DELUXE.(PISTOL.GRIP).BLAC 532140845 HUS-532140845
...
37
PIN.ROLL.3/16 X 1" 532124963 HUS-532001572
...
57
V-BELT DRIVE 532178138 HUS-532178138
...
66
SERVICE KIT BELT KEEPER 532154778 HUS-531151001
...
50
GSPW Bolts 872110612 HUS-596136101
...
28
ROD, PARKING BRAKE 532175765 HUS-532175765
...
10
Pins 876020416 HUS-596029601
...
254
SCREW 3/8-16X1 817000616 HUS-817000616
...
159
HUB.SHIFT 532183900 HUS-532444304
...
47
PULLEY IDLER 532127783 HUS-532139245
...
9
CLUTCH, ELECTRIC 532174367 HUS-532174367
...
62
PAD, FOOT PEDAL 532124872 HUS-510089501
...
247
LINK.SHFT.TRANSAXLE.LTH2000 532181462 HUS-583112701
...
75
WASHER 532121749 HUS-532121749
...
25
SPRING, BRAKE ROD 532106888 HUS-532151332
...
156
Washers 532166002 HUS-596218801
...
29
PLUNGER CAP 532071673 HUS-532071673
...
112
Washers 819091210 HUS-596039801
...
120
NUT.HEX.FLANGE.3/8-16.LOCKNUT 873900600 HUS-532409149
...
32
SCREW HEXAGON HEAD SCREW 5/16- 874760512 HUS-596030501
...
169
PLATE.FASTENING.CROSS.SHAFT 532165580 HUS-532165580
...
64
BOLT.HEX.7/16-20X4.GR5.1.5BLUE 532173937 HUS-501606501
...
19
Nuts 873800600 HUS-596322601
...
56
SCREW.3/8-16 817060620 HUS-817060620
...
24
NUT.HEX.3/8-16UNC 873350600 HUS-873220600
...
161
BOLT.CARRIAGE.1/4-20 X 7/8 872140406 HUS-872110407
...
165
SERVICE KIT BRACKET BRACKET.PI 532165623 HUS-531149501
...
197
NYLINER SNAP 5/8" ID 532169613 HUS-532169613
...
14
WASHER SPRING LOCK WASHER WITH 810040400 HUS-596029801
...
89
CONSOLE, SHIFT,STL,AUTO,GRAY 532194810 HUS-532192387
...
150
SPACER, RETAINER 532175456 HUS-532175456
...
61
Screw, Hex Washer Hd. 3/8 - 16 x 7/8 817120614 HUS-817490614
...
52
Hardware 873680500 HUS-596040501
...
168
BOLT.SHOULDER.5/16-18X 532165492 HUS-532165492
...
151
Washers HUS-596135501
...
49
SERVICE KIT RETAIN BELT RETAIN 532123205 HUS-531151801
...
55
SPRING, RETURN LT 532105709 HUS-532105709
...
59
KEEPER, BELT CENTER 532169691 HUS-532169691
...
251
Screws 817060516 HUS-593337601
...
246
STRAP, TORQUE 532178121 HUS-532178121
...
263
SCREW, 3/8-16X3/4 817000612 HUS-817000612
...
162
NUT HEX_LRG FLG_1_4-20_LOCK 873680400 HUS-586668901
...
30
SERVICE KIT BRACKET BRKT 532169592 HUS-531149601
...
252
Washers 819131616 HUS-596140201
...
83
BUSHING 819171216 HUS-734117771
...
17
WASHER 532126197 HUS-532126197
...
65
Washers 810040700 HUS-596238901
...
85
NUT LOCK CENTER 1/4 -28 FNTHD 532150360 HUS-532150360
...
35
BEARING.NYLON 532120183 HUS-532120183
...
53
LINK.CLUTCH.7.66.2005 532105710 HUS-532199652
...
77
SQUARE KEY 532123583 HUS-532123583
...
198
WASHER.NYL.7/8IDX.105"HYD CR 532169593 HUS-532169593
...
51
Nuts 873680600 HUS-596322601
...
78
WASHER 532121748 HUS-532121748
...
63
PULLEY, ELEC CLUTCH 532175417 HUS-532175417
...
81
SHAFT ASM 532178139 HUS-532178139
...
95
DISCONNECT.ASM.ROD.BYPASS 532178134 HUS-532178134
...
163
Screws 874780416 HUS-596230901
...
69
Screws 532142432 HUS-596134101
...
23
BRACKET, ANTI-ROTATION 532190736 HUS-532190736
...
15
Bolts 874490544 HUS-595316601
...
202
Bolts 872110614 HUS-596136201
...
39
BOLT 872110622 HUS-872110622
...
48
BELLCRANK, CLUTCH 532154407 HUS-532154407
...
8
ROD.SHIFT.FENDER.ADJ.STLT 532192502 HUS-532192502
...
245
STRAP, TORQUE 532178122 HUS-532178122
...
36
Washers 819211616 HUS-596933401
...
16
Hardware 873800500 HUS-596040501
...
38
PULLEY IDLER COMPOSITE 532179114 HUS-532179114
...
166
Bolts 817490510 HUS-594094101
