Husqvarna YTH2448 - 96015000103 (2005-01) Riding Tractor

Model: YTH2448 - 96015000103 (2005-01)

Back To Assemblies

Save Part Not Listed?
product name

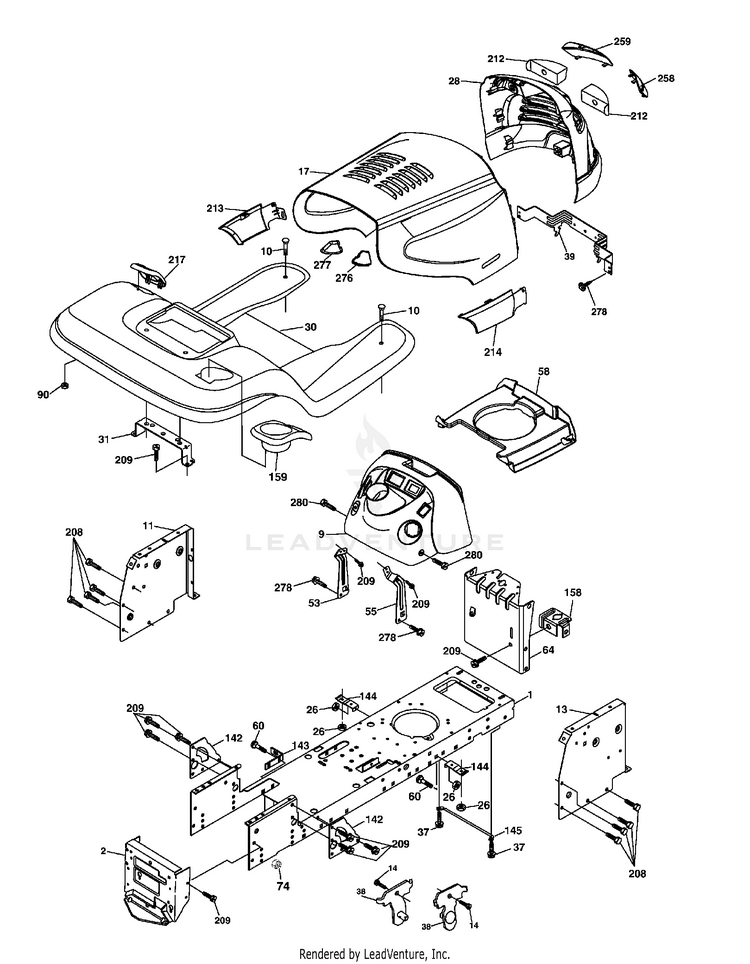

CHASSIS & ENCLOSURES

...
...
38
BRACKET.ASM.PIVOT.MOWER.REAR 532175710 HUS-532175710
...
159
CUPHOLDER.RIGHT.GREY 532192404 HUS-532191120
...
143
BRACKET, SWAYBAR CHASSIS 532186689 HUS-532186689
...
39
BRACKET PIVOT 532174714 HUS-532407807
...
10
Bolts 872140608 HUS-596728201
...
209
SCREW, 3/8-16X3/4 817000612 HUS-817000612
...
37
Screws 817490508 HUS-596030701
...
74
Nuts 873680600 HUS-596322601
...
145
ROD.PIVOT.HOOD 532156524 HUS-532409167
...
11
PANEL.DASH.LH.LTX 532174996 HUS-532174996
...
53
BRACKET DASH LH 532188373 HUS-532188373
...
142
PLATE REINFORCEMENT 532175702 HUS-532175702
...
26
Nuts 873800600 HUS-596322601
...
60
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 872140606 HUS-872140606
...
259
LENS.ELITE.HUSQ.CLEAR.LH 532189982 HUS-532188264
...
28
GRILL/LENS ASSY ( YT MODEL) 532188269 HUS-532188269
...
64
DASH LOWER 532174997 HUS-532174997
...
2
DRAWBAR, 12GA 532176554 HUS-532176554
...
55
BRACKET DASH RH 532188372 HUS-532188372
...
58
AIR DUCT ENGINE 532189352 HUS-532189352
...
278
Screws 532191611 HUS-596321701
...
14
Bolts 817490608 HUS-596564001
...
214
SKIRT.SIDE.ELITE.RH.GREY 532189978 HUS-532188265
...
276
BUMPER HOOD RH 532189274 HUS-532189274
...
212
INSERT LENS 532188267 HUS-532188267
...
13
PANEL DASH RH 532181719 HUS-532181719
...
1
KITS.CHASSIS.STAMPED.SERVICE 532174619 HUS-579841401
...
30
FENDER.W/CUPHOLDER.ORANGE 532194806 HUS-532192814
...
90
NUT.PUSH.3/16 532124346 HUS-532124346
...
258
LENS ELITE CLEAR RH 532189981 HUS-532188263
...
17
HOOD.ELITE.HUSQ-STEEL 532189977 HUS-532188374
...
9
DASH 532196138 HUS-532196095
...
31
BRACKET.SUPPORT.FENDER 532139976 HUS-532139976
...
213
SKIRT.SIDE.ELITE.LH 532189979 HUS-532188266
...
217
CONSOLE FUEL WINDOW GRAY 532185436 HUS-532179132
...
158
BRACKET PARKING BRAKE 532162037 HUS-532162037
...
280
SCREW 3/8-16X1 817060616 HUS-817000616
...
144
BRKT, FOOT REST 532175582 HUS-532175582
...
208
SCREW 3/8-16X1/2 817670608 HUS-817670608
...
277
BUMPER HOOD LH 532189275 HUS-532189275
