Husqvarna YTH2448 - 96015000103 (2005-01) Riding Tractor

Model: YTH2448 - 96015000103 (2005-01)

Back To Assemblies

Save Part Not Listed?
product name

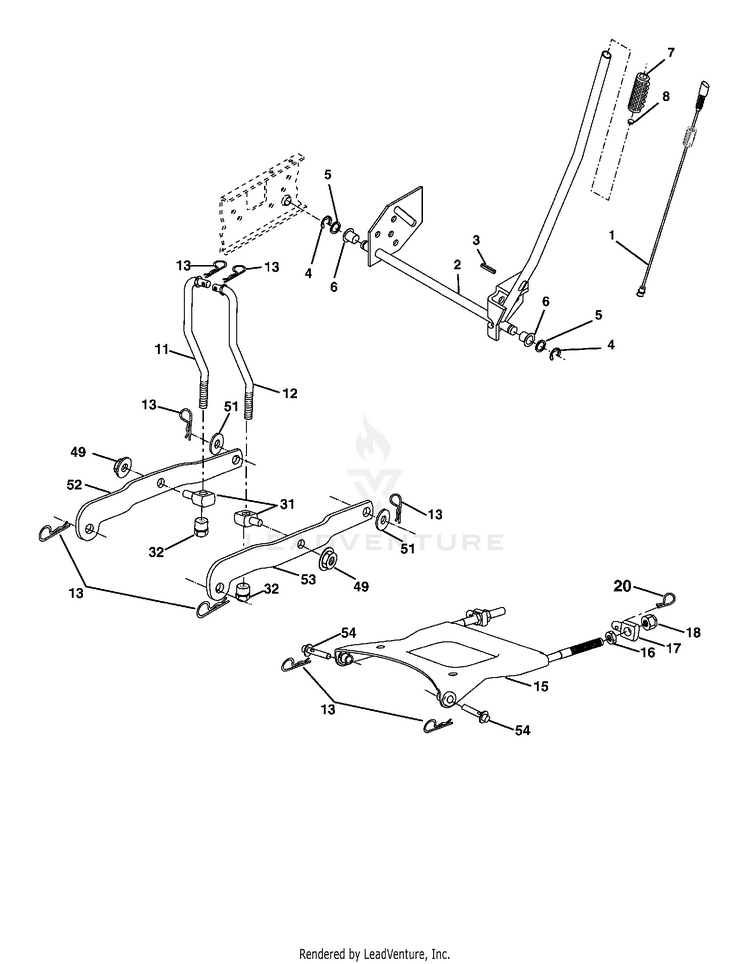

MOWER LIFT LEVER

...
...
721 86 17-01
BOLT HUS-721861701
...
506 97 43-01
HUS-506974301
...
734 11 64-41
SPACER HUS-734116441
...
506 97 46-01
PIN HUS-506974601
...
506 97 50-01
Guide HUS-506975001
...
721 68 02-51
R-CLIP HUS-721680251
...
506 82 68-01
BUSHING HUS-506826801
...
506 97 48-01
PULLEY HUS-506974801
...
732 21 18-01
LOCKNUT M8 HUS-732211801
...
506 97 63-01
ARM HUS-506976301
...
725 24 95-71
SCREW HUS-725249571
...
731 23 20-51
Nut HUS-731232001
...
506 97 26-01
FRAME HUS-535471001
...
506 89 58-01
BOLT HUS-506895801
...
506 83 77-01
SCREW HUS-506837701
...
506 97 68-01
Springs HUS-594020601
...
506 59 75-01
WASHER HUS-506597501
...
506 59 74-01
BOLT HUS-506597401
...
506 96 37-01
BRACKET HUS-506963701
...
725 24 61-51
BOLT HUS-725246151
...
732 25 22-01
Nut HUS-732252201
...
734 11 72-01
GSPH HUS-596134901
...
506 98 25-01
Washer HUS-506982501
...
506 83 76-01
SPRING HUS-506837601
...
732 21 20-51
NUT HUS-732212001
...
506 53 27-01
PULLEY HUS-506532701
...
725 24 57-51
SCREW HUS-725245751
