Husqvarna YTH2448 - 96015000100 (2005-01) Riding Tractor

Model: YTH2448 - 96015000100 (2005-01)

Back To Assemblies

Save Part Not Listed?
product name

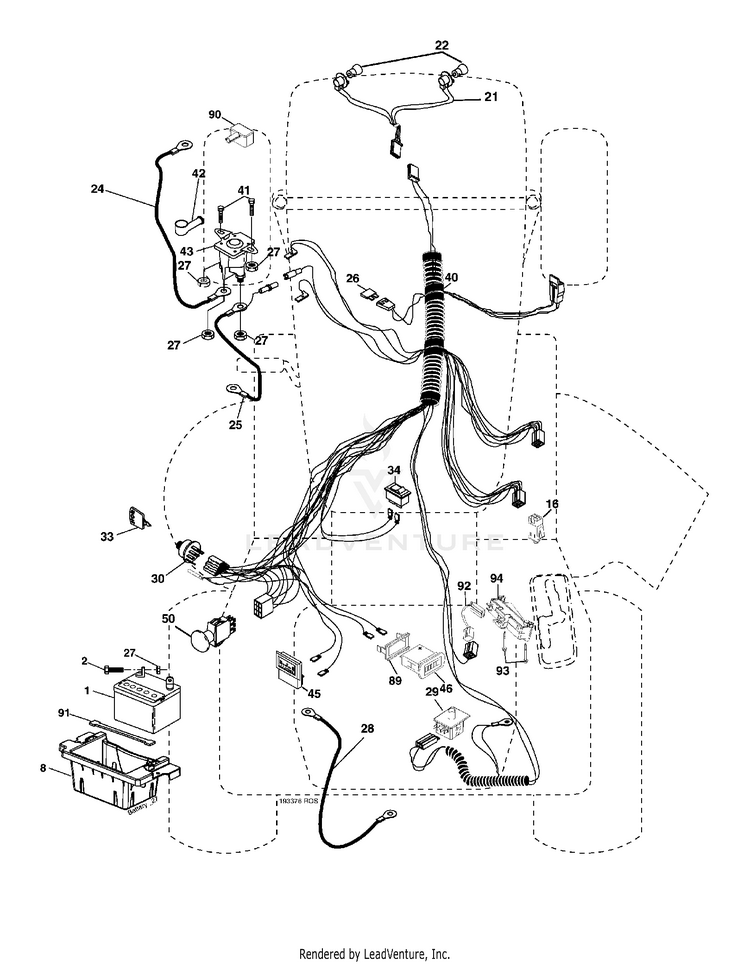

ELECTRICAL

...
...
27
NUT HEX_LRG FLG_1_4-20_LOCK 873510400 HUS-586668901
...
46
KIT.HOURMETER.SNAP-IN 532169635 HUS-532169642
...
26
FUSE 20AMP 532175158 HUS-532175158
...
29
SWITCH.SEAT.DP W/RAMPS 532192749 HUS-532192749
...
90
COVER.TERMINAL.BATTERY 532180449 HUS-532435395
...
42
COVER.TERMINAL.RED 532131563 HUS-532154336
...
2
BOLT.HEX.1/4.X.3/4.DICHROMATE HUS-874760412
...
92
HARNESS.PIGTAIL.REVERSE.SWITCH 532193465 HUS-532193465
...
24
BATTERY CABLE 532124780 HUS-532004799
...
50
SWITCH.PTO.8TERMINAL.STD.BLK 532196112 HUS-582107604
...
1
BATTERY.DRY.30.AMP 532144927 HUS-532123899
...
41
Screws 817720408 HUS-596437001
...
40
HARNESS.IGN.ELECT.STL 532193376 HUS-532193376
...
93
Bolts 532192540 HUS-596039601
...
30
SWITCH.IGN.DELTA.W.LGH.ROS 532193350 HUS-532193350
...
34
SWITCH LT 532110712 HUS-532110712
...
45
AMMETER 532122822 HUS-532122822
...
94
MANUAL.O.SP185H42STB.E 532191854 HUS-532191854
...
16
SWITCH INTERLOOK PUSH-IN 532176138 HUS-532176138
...
21
HARNESS ASSY LIGHT 532183759 HUS-532183759
...
91
STRAP.BATTERY.MOUNT.FRONT(2 2) 532190270 HUS-532190270
...
28
CABLE GROUND 6 GA 21" 90T BLK 532145491 HUS-532145491
...
89
BRACKET SNAP-IN HOURMETER 532169639 HUS-532169639
...
43
KIT SOLENOID .95 532178861 HUS-532146154
...
25
CABLE BATTERY 6 GA 22" W/16W 532146148 HUS-532146148
...
8
BOX.BATTERY.MOUNT.FRONT.LT 532186491 HUS-532186491
...
22
LIGHTBULB 532004152 HUS-532004152
...
33
KEY MLD GEN DELTA 532140401 HUS-532140401
