Husqvarna YTH2448 - 96015000100 (2005-01) Riding Tractor

Model: YTH2448 - 96015000100 (2005-01)

Back To Assemblies

Save Part Not Listed?
product name

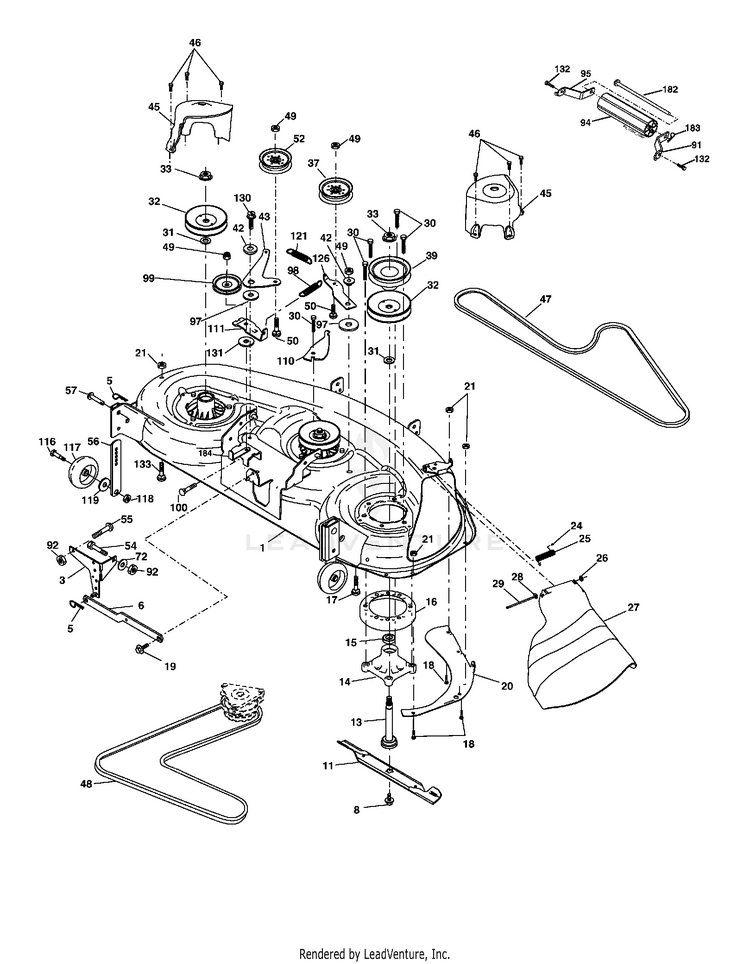

MOWER DECK / CUTTING DECK

...
...
54
Bolts 874780616 HUS-596564401
...
99
PULLEY.V.IDLER 532189993 HUS-532193195
...
42
SPACER.RETAINER.MOWER 532122052 HUS-532165723
...
20
SERVICE KIT BAFFLE BAFFLE 532174378 HUS-531167501
...
33
Nuts 532178342 HUS-596134801
...
130
SCREW 3/8-16X1 817000616 HUS-817000616
...
95
SERVICE KIT BRKT.NOSEROLLER.LH 532180534 HUS-529846101
...
xx
MANDREL ASSY "532174357, (Includes Housing, Shaft and Shaft Hardware Only-Pulley Not Included)" HUS-532174357
...
14
HOUSING, MANDREL 48" 532174358 HUS-532174358
...
6
SERVICE KIT BAR BAR SWAY DECK. 532178024 HUS-531149301
...
21
Hardware 873680500 HUS-596040501
...
182
Rods 532179127 HUS-594092501
...
117
WHEEL.GAUGE.RALLY 532174873 HUS-589527301
...
118
Nuts 873930600 HUS-596322601
...
133
BOLT.CARR.SQNK.5/16-18UNC.X3/4 872110506 HUS-872110506
...
132
SCREW, 3/8-16X3/4 817000612 HUS-817000612
...
91
SERVICE KIT BRKT.NOSEROLLER.RH 532180535 HUS-529846201
...
72
GSPH 819131312 HUS-596134901
...
28
Washer 11/32 x 5/8 x 16 Ga SD 819111016 HUS-819111016
...
39
PULLEY.DRIVEN.DECK.48' 532174375 HUS-532174375
...
97
WASHER 532178515 HUS-532178515
...
32
PULLEY MANDREL 532173436 HUS-532173436
...
111
ARM SPRING FIXED TENSION 532174610 HUS-532174610
...
5
RETAINER-SPRNG RB 532124670 HUS-532124670
...
11
48" HI-LIFT BLADE 532180054 HUS-532180054
...
29
Rods 532131491 HUS-595297001
...
1
DECK.SVC.4.GA.WHLS.48".BLK 532180358 HUS-532184233
...
100
Bolts 872110616 HUS-596136301
...
17
Bolts HUS-596987501
...
52
Pulleys 532175820 HUS-596481401
...
xx
DECK ASM SVC 48" ELE.HD/HP ADJ "532189906, (Std Deck-Order Separately Nose Roller Components Key Nos. 91, 94, 95, 132, 182-183)" HUS-532181579
...
26
NUT PUSH M 532110452 HUS-532110452
...
8
BOLT.WASHER.ASM.7/16-2 532174365 HUS-532193003
...
116
Bolts 532184219 HUS-596434404
...
55
Bolts 872140608 HUS-596728201
...
45
COVER.MANDREL.DECK.48" 532180806 HUS-532180806
...
131
Washer 13/32 x 1.00 x 6 Ga. 819131606 HUS-819131606
...
27
DEFLECTOR.ASM.BLACK.48" 532181707 HUS-532180655
...
31
WASHER.SPACER.MANDREL 532187690 HUS-532187690
...
184
KEEPER BELT IDLER PLATED 532173979 HUS-532173979
...
15
BEARING 532110485 HUS-532110485
...
56
BAR.ADJUST.WHEEL.ANTI.SCALP.BL 532155986 HUS-532155986
...
37
PULLEY.IDLER.FLAT 532177968 HUS-532177968
...
98
SPRING PRIMARY DRIVE 532179479 HUS-532179479
...
94
NOSE ROLLER 48" 532176066 HUS-532176066
...
47
V-BELT, 48"SECONDARY 532180808 HUS-532180808
...
49
NUT.HEX.FLANGE.3/8-16.LOCKNUT 873900600 HUS-532409149
...
13
SHAFT ASM W/LOWER BEARING 532174360 HUS-532174360
...
16
SERVICE KIT MANDREL STRIPPER 532174493 HUS-531167701
...
57
RIVET.PIN.HEAD.YELLOW. 532156941 HUS-532156941
...
25
TORSION SPRING 532178102 HUS-539107609
...
183
SPRING RETAINER 532163552 HUS-532003146
...
110
ARM, SPRING SECONDARY 532175016 HUS-532175016
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 532173984 HUS-584953901
...
92
Nuts 873800600 HUS-596322601
...
24
CAP-SLEEVE LT 532105304 HUS-532105304
...
119
GSPH 819121414 HUS-596134901
...
3
SERVICE.KIT BRACKET BRKT ASM S 532138017 HUS-531165401
...
126
ARM, IDLER PRIMARY DECK 532174372 HUS-532174372
...
19
BOLT SHD 5/16-18 532132827 HUS-532132827
...
43
ARM, IDLER SECONDARY 532174373 HUS-532174373
...
18
Bolts 872140505 HUS-596136401
...
50
GSPW Bolts 872110612 HUS-596136101
...
48
V-BELT PRIMARY 48" 532174368 HUS-532174368
...
46
SCREW.1/4-20X5/8 532137729 HUS-532137729
...
121
SPRING.DRIVE.SECONDARY.48".DEC 532174371 HUS-532174371
