Husqvarna YTH2448 - 96015000100 (2005-01) Riding Tractor

Model: YTH2448 - 96015000100 (2005-01)

Back To Assemblies

Save Part Not Listed?
product name

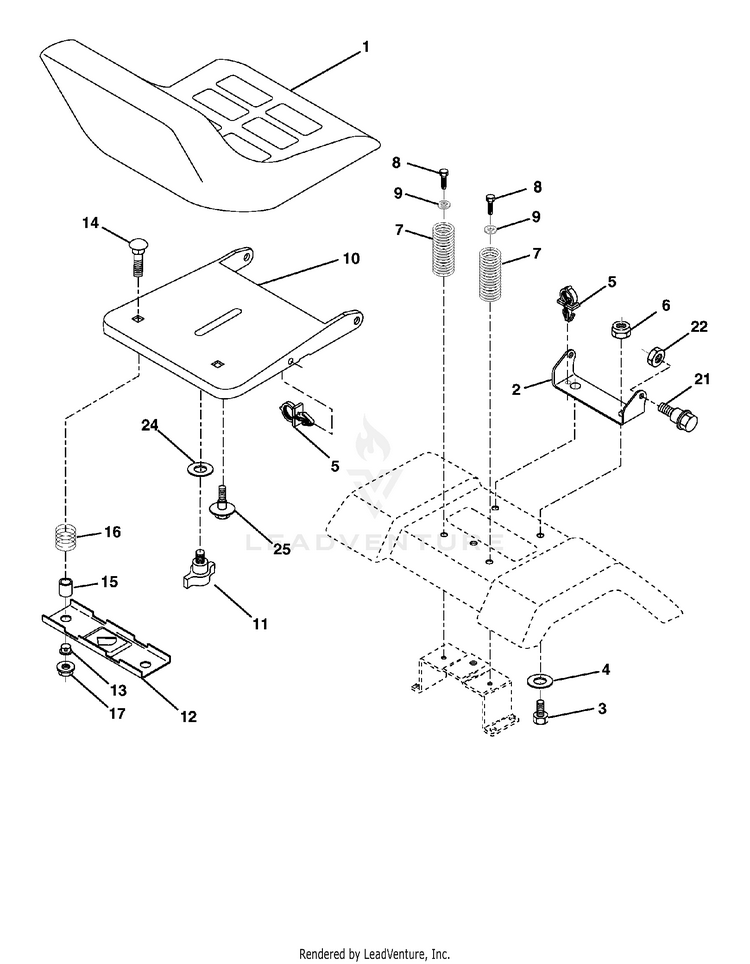

SEAT

...
...
8
SCREW 3/8-16X1 817000616 HUS-817000616
...
9
Washers 819131614 HUS-596140201
...
16
SPRING COMPRESSED 532123740 HUS-532123740
...
13
BUSHING 532121248 HUS-532121248
...
2
SERVICE KIT BRACKET SEAT PIVOT 532140551 HUS-531152401
...
21
BOLT.5/16-18X5/8.SHOULDER 532171852 HUS-587907801
...
7
SPRING.COMPRESSION.SEAT.BLACK 532124181 HUS-587613301
...
17
NUT HEX_LRG FLG_1_4-20_LOCK 532123976 HUS-586668901
...
3
BOLT, HEX 3/8-16X1 871110616 HUS-871110616
...
6
Nuts 873800600 HUS-596322601
...
11
KNOB.SEAT.ADJ.WINGNUT 532166369 HUS-532166369
...
4
WASHER PM 819131610 HUS-819131610
...
22
Hardware 873800500 HUS-596040501
...
12
BRKT.MNTNG.SWITCH.SEAT.BLACK 532174648 HUS-532174648
...
14
BOLT.ROUND.HEAD.SQUARE.NECK 872050412 HUS-872050412
...
24
WASHER 819171912 HUS-819171912
...
25
BOLT,SHOULD 532127018 HUS-532127018
...
15
WASHER 532121749 HUS-532121749
...
10
PAN.ASM.SEAT.1SLOT 532182493 HUS-532195530
...
1
SEAT.XG150.BLK.KB/SLD.NO-LOGO 532188715 HUS-532401043
...
5
PUSH CLIP 532145006 HUS-532145006
