Husqvarna YTH2448 - 96013000700 (2005-09) Riding Tractor

Model: YTH2448 - 96013000700 (2005-09)

Back To Assemblies

Save Part Not Listed?
product name

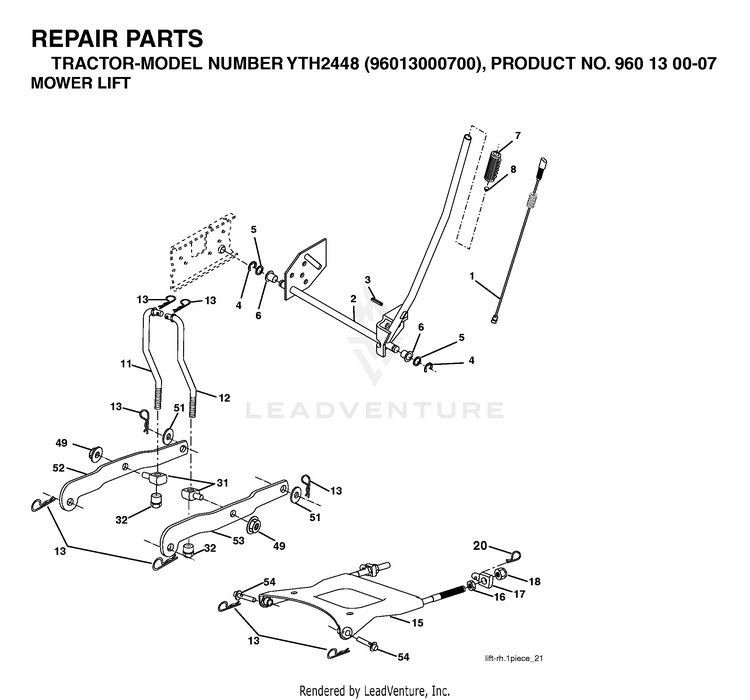

MOWER LIFT / DECK LIFT

...
...
32
NUT.LIFT LNK.7/16-2 HUS-589464902
...
52
ARM SUSP. REAR LH HUS-532175378
...
8
PLUNGER BUTTON KIT HUS-532125925
...
20
SPRING RETAINER HUS-532003146
...
51
Washer 1 17/32 X 7/8 X 16 Ga HUS-819171416
...
49
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
7
GRIP HANDLE HUS-532125631
...
16
Nuts HUS-596433401
...
17
TRUNNION HUS-532175689
...
3
PIN GROOVE. HUS-532105767
...
53
ARM SUSP REAR RH HUS-532175802
...
6
BEARING.NYLON HUS-532120183
...
18
GSPW NUTS HUS-596135601
...
11
LIFT LINK LH HUS-532175370
...
15
PLATE ASM SUSP FRONT HUS-532175562
...
5
WASHER HUS-819211621
...
31
TRUNNION HUS-532176205
...
12
LIFT LINK RH HUS-532175371
...
54
PIN.FLANGE HUS-532175560
...
4
RETAINING RING LT HUS-812000002
...
2
SERVICE KIT SHAFT ASM RH HANDL HUS-529845601
...
1
WIRE ASM INNER W/ PLUNGER LT HUS-532159460
...
13
RETAINER-SPRNG RB HUS-532124670
