Husqvarna YTH2448 - 96013000700 (2005-09) Riding Tractor

Model: YTH2448 - 96013000700 (2005-09)

Back To Assemblies

Save Part Not Listed?
product name

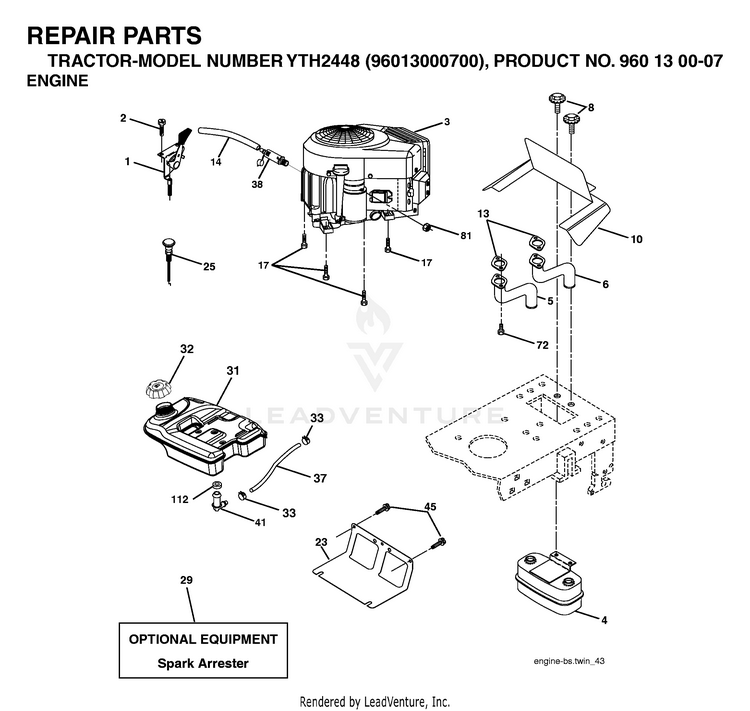

ENGINE

...
...
38
VALUE.OIL.DRAIN HUS-532428287
...
2
Screws HUS-596437001
...
17
SCREW 3/8-16 X 1-1/2 HUS-817060624
...
33
HOSE CLAMP HUS-532123487
...
25
CHOKE CONTROL HUS-532132781
...
13
GASKET.MUFFLER HUS-532165391
...
32
FUEL CAP HUS-532179124
...
10
SERVICE KIT HEAT SHIELD HUS-531154901
...
72
Screws HUS-596134202
...
37
HOSE.1/4".LOW.PERM.FUEL.LN.54" HUS-587044854
...
116
NUT.HEX.FLANGE.TOPLOCK HUS-532184362
...
1
THROTTLE CONTROL HUS-532190196
...
23
SERVICE KIT SHIELD SHIELD.BROW HUS-531150701
...
8
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
31
4.0 REAR FUEL TANK HUS-532179022
...
6
EXHAUST.TUBE.RH.B&S.TWIN.INTEK HUS-581881001
...
41
STEM FUEL TANK HUS-532139277
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
112
BUSHING OUTLET T HUS-532003645
...
4
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
14
TUBE, DRAIN OIL ASM. HUS-532148456
...
45
Screw Hexwsh Thdr 3/8-16 x 3/4 HUS-917000612
...
5
EXHAUST.TUBE.LH.BS/TWIN HUS-581881101
