product name

Husqvarna YTH2448 - 96013000700 (2005-09) Riding Tractor

Model: YTH2448 - 96013000700 (2005-09)

Back To Assemblies

Save Part Not Listed?
product name

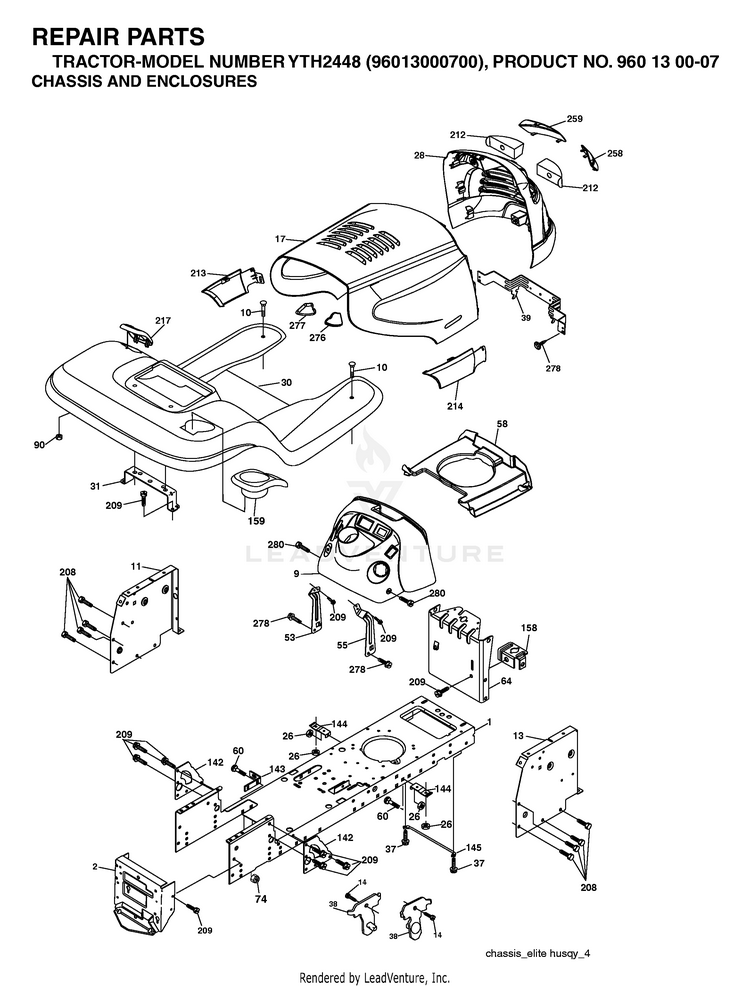

CHASSIS & ENCLOSURES

...
...
217
CONSOLE FUEL WINDOW GRAY HUS-532179132
...
9
DASH HUS-532193641
...
142
PLATE REINFORCEMENT HUS-532175702
...
209
SCREW, 3/8-16X3/4 HUS-817000612
...
278
Screws HUS-596321701
...
74
Nuts HUS-596322601
...
143
BRACKET, SWAYBAR CHASSIS HUS-532186689
...
208
SCREW 3/8-16X1/2 HUS-817670608
...
158
BRACKET PARKING BRAKE HUS-532162037
...
38
BRACKET.ASM.PIVOT.MOWER.REAR HUS-532175710
...
2
DRAWBAR, 12GA HUS-532176554
...
280
SCREW 3/8-16X1 HUS-817000616
...
155
BRACKET DASH STEALTH LH HUS-532161900
...
64
DASH LOWER HUS-532174997
...
1
KITS.CHASSIS.STAMPED.SERVICE HUS-579841401
...
145
ROD.PIVOT.HOOD HUS-532409167
...
30
FENDER.W/CUPHOLDER.ORANGE HUS-532192814
...
154
BRACKET DASH STEALTH(R) HUS-532161897
...
60
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 HUS-872140606
...
159
CUPHOLDER.RIGHT.GREY HUS-532191120
...
13
PANEL DASH RH HUS-532181719
...
10
Bolts HUS-596728201
...
39
BRACKET PIVOT HUS-532407807
...
144
BRKT, FOOT REST HUS-532175582
...
14
Bolts HUS-596564001
...
11
PANEL.DASH.LH.LTX HUS-532174996
...
37
Screws HUS-596030701
...
31
BRACKET.SUPPORT.FENDER HUS-532139976
...
26
Nuts HUS-596322601
...
90
NUT.PUSH.3/16 HUS-532124346
