Husqvarna YTH23V42 LS - 96043008800 (2009-12) Riding Tractor

Husqvarna YTH23V42 LS - 96043008800 (2009-12) Riding Tractor

Model: YTH23V42 LS - 96043008800 (2009-12)

Back To Assemblies

Save Part Not Listed?

Popular Parts

Popular Parts

Screw Hexagon Head Tapping Srw HUS-596321701

Control Throttle Pro HUS-532424341

Screw 3/8-16X1-1 1/4 HUS-817060620

Screw 3/8-16X1 5Smgml Tap/Rb HUS-817000616

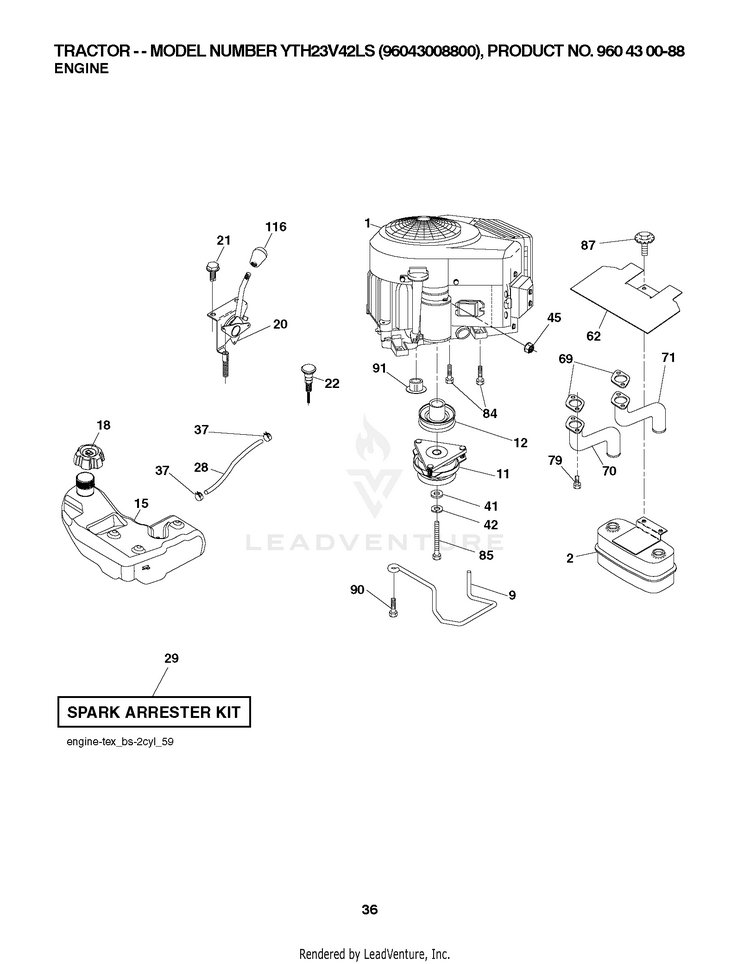

ENGINE

62

SERVICE KIT HEAT SHIELD HUS-531154901

11

KIT.SVC.CLUTCH.ELECTRIC. HUS-532414336

69

GASKET.MUFF 806237 NOW 806425 HUS-532192442

42

Washers HUS-596238901

90

SCREW 3/8-16X1 HUS-817000616

91

BUSHING.1.375OD HUS-532187495

37

HOSE CLAMP HUS-532123487

22

CONTROL.CHOKE.ERGO.PUSH-IN.BLA HUS-532191596

85

BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501

28

HOSE 1/4" LOW PERMEATION FUEL HUS-587044864

12

PULLEY.ENGINE.TUFFTORQ HUS-532405097

70

EXHAUST.TUBE.MUFFLR.LH.VANG LH HUS-532191548

18

CAP.ASSY.FUEL.3".N-EPA.GRY.498 HUS-584248702

29

KIT.SPARK ARRESTOR 794945 B&S HUS-532137180

116

KNOB - SHIFT HUS-539132624

45

NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901

71

EXHAUST.TUBE.MUFFLR.RH.VANG RH HUS-532191549

9

Keepers HUS-596501502

21

Screws HUS-596321701

15

TANK FUEL HUS-532422804

87

BOLT 5/1618UNC X 3/4 W/ SEMS HUS-537171877

84

SCREW.3/8-16 HUS-817060620

79

SCREW.TUBE.MUFFLER.VANGUARD HUS-532192443

41

WASHER HUS-532126197

2

MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723

20

CONTROL.THROTTLE.PRO. HUS-532424341
