Husqvarna YTH2348 - 96045002202 (2010-05) Riding Tractor

Model: YTH2348 - 96045002202 (2010-05)

Back To Assemblies

Save Part Not Listed?
product name

WHEELS & TIRES

...
...
1
VALVE CAP HUS-532059192
...
4
TUBE.5.3/4.5/6 Front (Service Item Only) HUS-532059904
...
5
TIRE.15X6-6.TURF.SAVER.FRONT Front HUS-532122073
...
2
VALVE STEM LT HUS-532065139
...
7
BEARING.FLANGE Front Wheel Only HUS-532009040
...
9
TIRE.20X8-8.TURF.SAVER Rear HUS-532138468
...
11
RIM.ASM.8X7.REAR.SILVER Rear HUS-532106108
...
8
CAP.HUB.FRONT.LT.BLACK Front Wheel Only HUS-532104757
...
3
RIM.ASM.6X4.5.FRONT.SILVER Front HUS-532106732
...
..
6, 24OZ PNUEMASEAL BOTTLES NOT SHOWN, 10 oz. Tube HUS-576707201
...
10
TUBE - UNIVERSAL FOR 8" RIM Rear (Service Item Only) HUS-532007152
...
6
FITTING LT. Front Wheel Only HUS-532000278

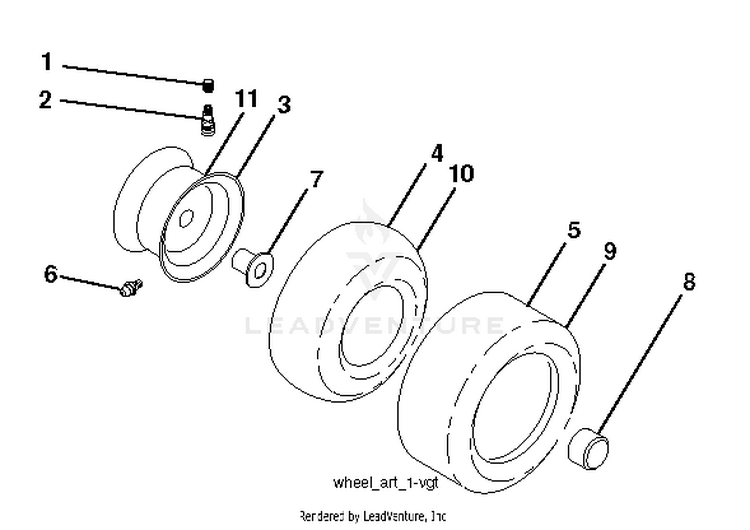

Schematic Image Zoomed
