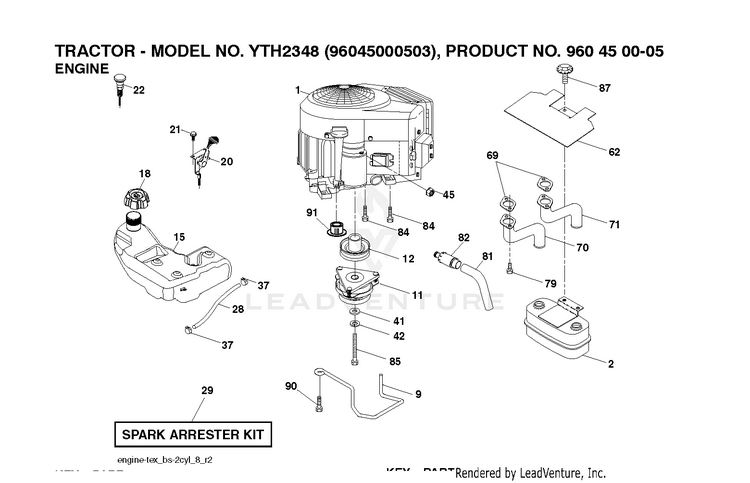

Husqvarna YTH2348 - 96045000503 (2009-02) Riding Tractor

Model: YTH2348 - 96045000503 (2009-02)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
37
HOSE CLAMP HUS-532123487
...
91
BUSHING.1.375OD HUS-532187495
...
87
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
79
Screws HUS-596134202
...
84
SCREW.3/8-16 HUS-817060620
...
42
Washers HUS-596238901
...
29
KIT.SPARK ARRESTOR 794945 B&S KIT HUS-532137180
...
15
TANK.FUEL.SIDE-FILL.3.NON-EPA HUS-532400021
...
11
KIT.SVC.CLUTCH.ELECTRIC. HUS-532414336
...
90
SCREW 3/8-16X1 HUS-817000616
...
21
Screws HUS-596321701
...
70
EXHAUST.TUBE.LH.BS/TWIN LH HUS-581881101
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
69
GASKET.MUFFLER HUS-532165391
...
9
Keepers HUS-596501502
...
2
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
41
WASHER HUS-532126197
...
22
CONTROL.CHOKE.ERGO.PUSH-IN.BLA HUS-532191596
...
71
EXHAUST.TUBE.RH.B&S.TWIN.INTEK RH HUS-581881001
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
82
VALUE.OIL.DRAIN HUS-532428287
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
20
CONTROL.THROTTLE.BLACK HUS-532175437
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
18
CAP.ASSY.FUEL.3".N-EPA.GRY.498 HUS-584248702
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
