Husqvarna YTH2348 - 96043008600 (2009-08) Riding Tractor

Model: YTH2348 - 96043008600 (2009-08)

Back To Assemblies

Save Part Not Listed?
product name

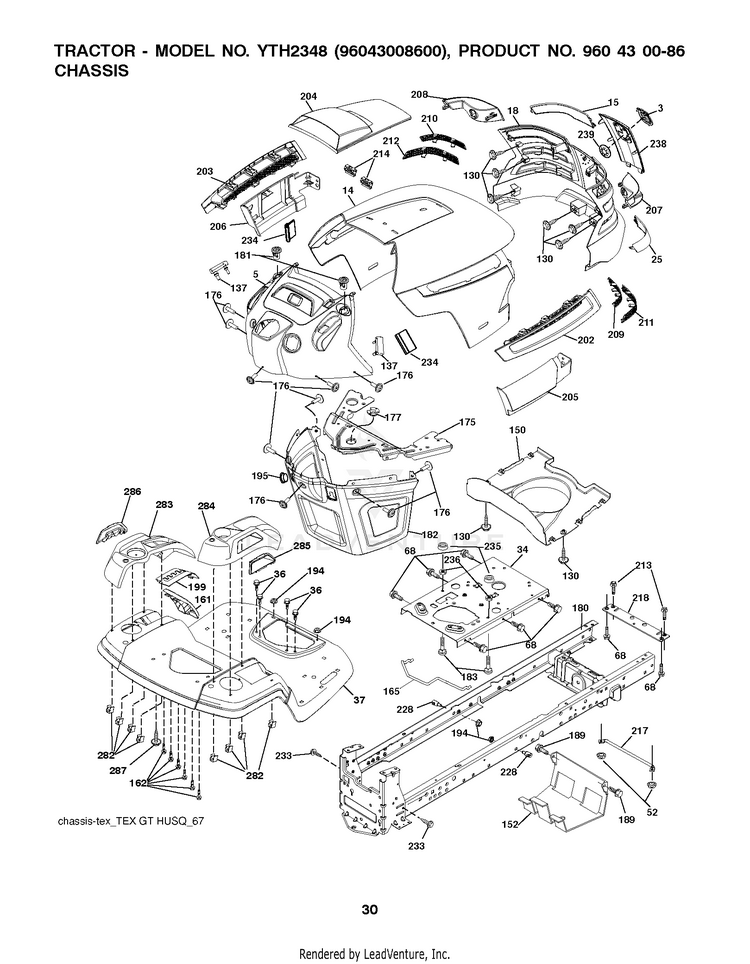

CHASSIS / FRAME

...
...
161
WINDOW.FUEL.LT.HUSQ.TEX.498 HUS-532439781
...
285
CONSOLE INSERT RH RH HUS-532416315
...
68
Screws HUS-596030701
...
37
FENDER.TLT.FS.W/CPH/FW/RSF.ORN HUS-532423694
...
208
BEZEL.LH.TEX.GT.HUSQ LH HUS-532197199
...
52
Hardware HUS-596040501
...
205
SKIRT.HOOD.SIDE.HUSQ.RH.GREY RH HUS-532401709
...
137
BUMPER DASH HUS-532407590
...
203
VENT.SIDE.HOOD.HUSQ.LH.GRAY LH HUS-532403076
...
5
DASH.ASM.HUSQ.GT HUS-532408700
...
175
PLATE.PNT.CROSSMEMBER.HUSQ/PRE HUS-590607702
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
182
DASH.LOWER.COMMON.12V.ADAPTOR HUS-532406859
...
162
Screws HUS-596134101
...
25
LENS.RH.TEX.GT.HUSQ.CL RH HUS-532198906
...
18
GRILL.ASM.HUSQ.TG/CRD.W/TRIM HUS-532408607
...
195
PLUG.HOLE.DASH.LOWER.12V.BLK HUS-532404137
...
206
SKIRT.HOOD.SIDE.HUSQ.LH.GREY LH HUS-532401711
...
238
TRIM.HUSQ.TG/CRD.SERVICE HUS-532408606
...
233
BOLT.SHOULDER HUS-532196539
...
217
ROD.PIVOT.HOOD HUS-532409167
...
150
AIR.DUCT.HOOD.TEX.GT.HUSQ HUS-532198512
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
177
BUSHING, STEERING HUS-532195227
...
286
CONSOLE.INSRT.LH.HUSQ.LT.BLACK LH HUS-532416317
...
207
BEZEL.RH.TEX.GT.HUSQ RH HUS-532197198
...
209
INSERT.HEX.GRILL.HUSQ.GREY RH HUS-532199130
...
235
Spacers HUS-596564201
...
180
KITS.CHASSIS.WELD.SERVICE HUS-579841501
...
34
PLATE.ENGINE.WELDED.CHASSIS HUS-580910801
...
234
BUMPER.HOOD.TEX.HUSQVARNA HUS-532404742
...
165
SUPPORT.TANK.REAR.W/TEX HUS-532196826
...
287
SCREW 1/4X20 HUS-817600406
...
194
GSPW Nuts HUS-596135701
...
130
Screws HUS-596321701
...
211
INSERT.HEX.GRILL.HUSQ. RH HUS-532199132
...
152
SERVICE KIT SHIELD SHIELD.BROW HUS-531169901
...
199
PLATE.DECK.LIFT.HUSQ.LT HUS-532413485
...
181
BUSHING.MNT.FEND.CRGO. HUS-532403025
...
202
VENT.SIDE.HOOD.HUSQ.RH.GREY RH HUS-532403048
...
15
LENS.LH.TEX.GT.HUSQ.CL LH HUS-532198907
...
3
LOGO.HUSQ.GT.LT.CROWN.H HUS-532430771
...
14
HOOD.ASM.HUSQVARNA.GT.TEX.ORAN HUS-532442396
...
284
CONSOLE.SHFT.PDL.CNTRL.HUSQ.LT HUS-532439150
...
282
CLIP.RETAINER.CONSOLE.LT.HUSQ HUS-532414110
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
212
INSERT.HEX.GRILL.HUSQ. LH HUS-532199133
...
204
VENT.ASM.TORPHD.HUSQGT.LOGO.CL HUS-532416615
...
218
X-PIECE.HOOD.STOP.NON/ HUS-532196395
...
283
CONSOLE.ASM.LFT.RSF.HUSQ.LT HUS-532439151
...
183
Screws HUS-595305701
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
213
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
210
INSERT.HEX.GRILL.HUSQ. LH HUS-532199131
...
239
NUT PUSH M HUS-532110452
