Husqvarna YTH22V46 - 96043027100 (2017-10) Riding Tractor

Model: YTH22V46 - 96043027100 (2017-10)

Back To Assemblies

Save Part Not Listed?
product name

WHEELS & TIRES

...
...
3
RIM.ASM.6X4.5.FRONT.SILVER Front 6" HUS-532106732
...
2
VALVE STEM LT HUS-532065139
...
5
TIRE.15X6-6.TURF.SAVER.FRONT Front 15" x 6.0"-6" HUS-532122073
...
xx
6, 24OZ PNUEMASEAL BOTTLES HUS-576707201
...
4
TUBE.5.3/4.5/6 (Service Item Only) HUS-532059904
...
10
TUBE - UNIVERSAL FOR 8" RIM (Service Item Only) HUS-532007152
...
8
CAP.HUB.FRONT.LT.BLACK HUS-532104757
...
9
TIRE.20X8-8.TURF.SAVER Rear 20" x 8.0"-8" HUS-532138468
...
1
VALVE CAP HUS-532059192
...
7
BEARING.FLANGE (Front Wheel Only) HUS-532009040
...
11
RIM.ASM.8X7.REAR.SILVER Rear 8" HUS-532106108
...
6
FITTING LT. (Front Wheel Only) HUS-532000278

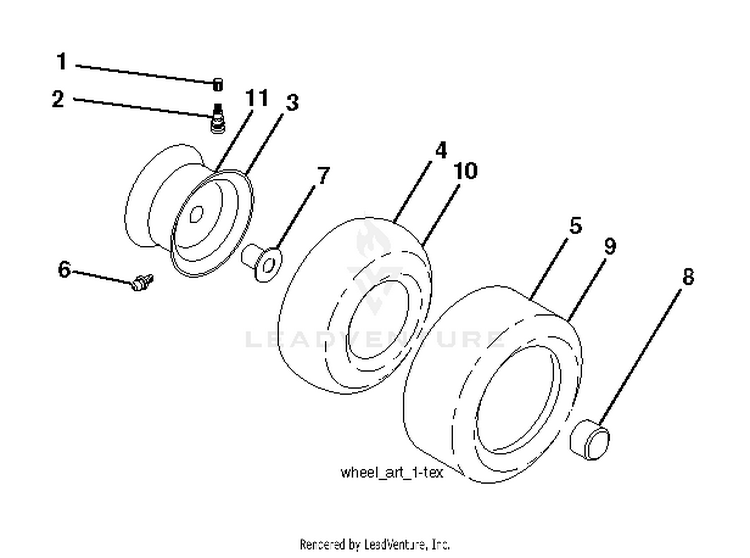

Schematic Image Zoomed
