Husqvarna YTH22V42 LS - 96043012600 (2010-10) Riding Tractor

Model: YTH22V42 LS - 96043012600 (2010-10)

Save Part Not Listed?
product name

CHASSIS & ENCLOSURES

...
...
205
SIDE.TRIM.RH.GT.HUSQ.II RH HUS-532439730
...
350
CLIP.X-MAS.TREE HUS-532445143
...
152
SHIELD.BROWNING.PNT.GT.V2 HUS-532439870
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
130
Screws HUS-596321701
...
199
PLATE.DECK.LIFT.HUSQ.LT HUS-532413485
...
202
VENT.SIDE.RH.GT.HUSQ.II. RH HUS-532439728
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
150
AIR.DUCT.GTV.BLACK HUS-532439774
...
286
CONSOLE.INSRT.LH.HUSQ.LT.BLACK LH HUS-532416317
...
2
DRAWBAR.LOWER.2PC.18/22 HUS-532412282
...
177
BUSHING, STEERING HUS-532195227
...
204
VENT.TOP.ASM.HUSQ.GT2 HUS-587485801
...
151
SERVICE KIT PIVOT BRACKET BRAC HUS-531077401
...
68
Screws HUS-596030701
...
235
Spacers HUS-596564201
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
182
DASH.LOWER.COMMON.12V.ADAPTOR HUS-532406859
...
287
SCREW 1/4X20 HUS-817600406
...
335
COVER.LOWER.DASH.RH.BLACK HUS-532448204
...
282
CLIP.RETAINER.CONSOLE.LT.HUSQ HUS-532414110
...
25
LENS.HEADLIGHT.RH.GTII.2011 HUS-532443385
...
183
Screws HUS-595305701
...
336
COVER.LH.CLOSE.OUT HUS-532439846
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
208
HEADLIGHT.CUP.BEZEL.HUS.GT2.LH LH HUS-587464501
...
297
INSERT.REFLECTIVE.LH.HUSQ.GTII HUS-532437456
...
203
VENT.SIDE.LH.GT.HUSQ.II.498 LH HUS-532439727
...
284
CONSOLE.DECK.LIFT.R.SDFL.HUSQ HUS-532439861
...
18
Grilles HUS-597247201
...
191
INSERT.REFLECTIVE.RH.HUSQ.GTII HUS-532437455
...
58
SERVICE KIT DRAWBAR FENDER DRA HUS-531152601
...
165
SUPPORT.TANK.REAR.B/TE HUS-532194330
...
217
ROD.PIVOT.HOOD HUS-532409167
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
15
LENS.HEADLIGHT.LH.GTII.2011 HUS-532439733
...
14
KIT.HOOD.ASM.HUSQ.GT.TEX.668 HUS-587483301
...
- -
TRACTOR BRUSH GUARD LS MODELS HUS-505568813
...
285
CONSOLE INSERT RH RH HUS-532416315
...
178
CARGO.ASM.NET.TXGT.W/C HUS-532199782
...
3
APPLIQUE.SUBASM.GT.HUSQ.II HUS-532444481
...
175
PLATE.PNT.CROSSMEMBER.HUSQ/PRE HUS-590607702
...
283
CONSOLE.SHFT.PDL.CNTRL.HUSQ.LT HUS-532439150
...
206
SIDE.TRIM.LH.GT.HUSQ.II.GRAY LH HUS-532439729
...
194
GSPW Nuts HUS-596135701
...
207
HEADLIGHT.CUP.BEZEL.HUS.GT2.RH RH HUS-587464801
...
5
DASH.UPPER.ASSY.GT2.DUAL HUS-532437469
...
159
SCREW, 3/8-16X3/4 HUS-817000612
...
161
WINDOW.FUEL.LT.HUSQ.TEX.498 HUS-532439781
...
162
Screws HUS-596134101
...
137
BUMPER DASH HUS-532407590
...
180
KITS.TEX.BOLTED.CHASSIS.445559 HUS-582033101
...
37
FENDER.TLT.FS.W/CPH/FW/RSF.ORN HUS-532423694

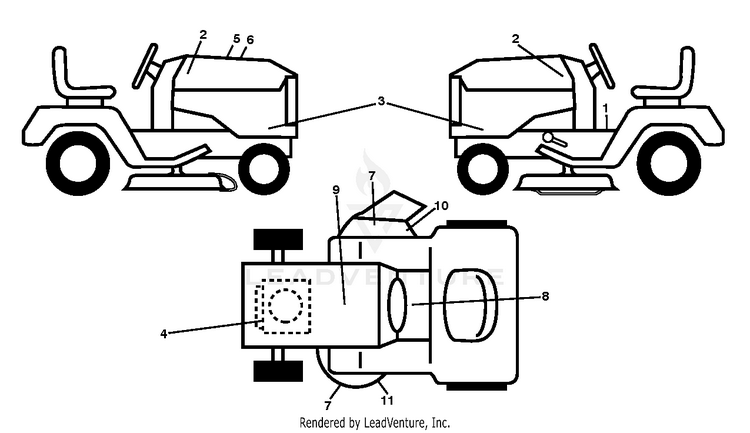

DECALS

...
...
6
DECAL.RPL.BSM40.ENDR.TLB.42F.K HUS-532438481
...
8
DECAL, WARNING SPARK ARRESTOR HUS-532424102
...
7
DECAL.DECK.6MIL.EURO.NOSTEP HUS-581724301
...
1
DECAL.FENDER.WARNING.ENGLISH HUS-581578901
...
4
DECAL, ENG. HP HUS-532432914
...
11
DECAL.DECK.BELT.ROUTING.48/54 HUS-531229002
...
5
DECAL.WARNING.CUST.RESP.E85. HUS-532423829
...
- -
PAD.FOOT.LH.HUSQ.ERGO.LT.GREY LH HUS-532439681
...
9
DECAL BTRY SYMBOLS HUS-532145005
...
3
DECAL.SDPNL.HUSGT2.YTH22V42LS HUS-532439582
...
2
DECAL.BADGE.170MM.TEXTLOGO. HUS-581627301
...
10
DECAL, CAUTION HUS-539113224
...
- -
PAD.FTRST.RH.PCH.ERGO.LT.498 RH HUS-532439682
...
- -
DECAL.BYPASS.FENDER.CRD/LT/YT HUS-581724801

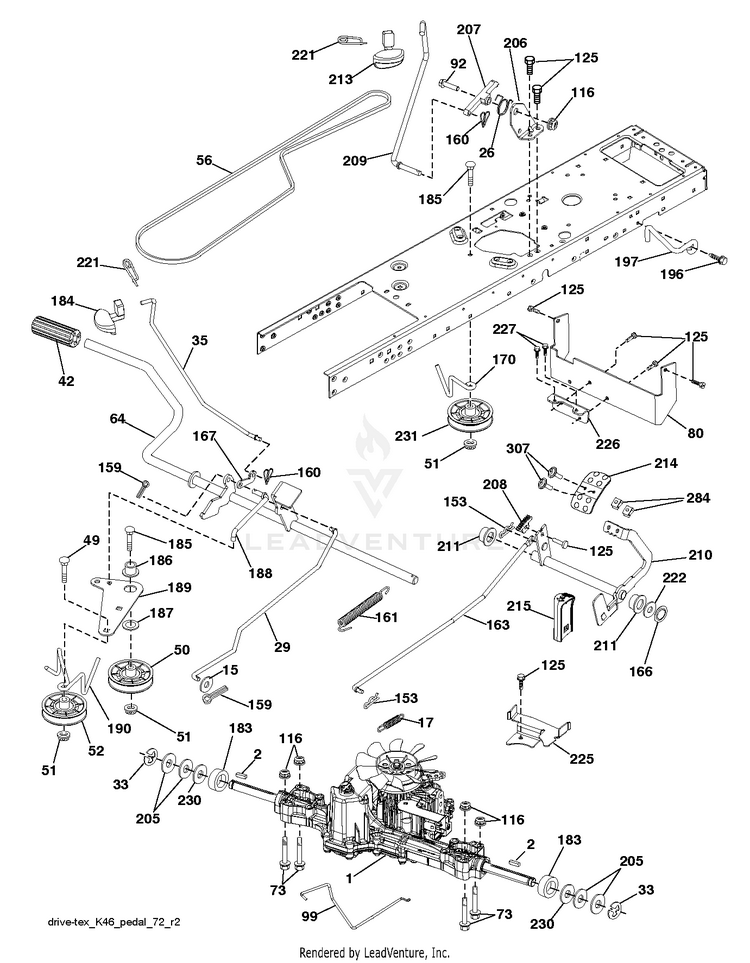

DRIVE

...
...
208
Gears HUS-596564101
...
186
SPACER.RETAINER HUS-532194321
...
153
RETAINER M HUS-532004497
...
226
SERVICE KIT BRACKET HUS-531170501
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
183
SPACER AXLE HUS-532137057
...
160
GSPW Retainers HUS-596029401
...
161
SPRING, RETURN LT HUS-532105709
...
99
ROD.SPRING.BYPASS.K46.LT.Z HUS-532415742
...
187
Washers HUS-596135501
...
284
NUT.U-CHNL.1/4-20.550DP.350PNL HUS-532417693
...
211
BEARING.NYLON HUS-532120183
...
189
SERVICE KIT BELLCRANK HUS-531169001
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
116
GSPW Nuts HUS-596135701
...
205
WASHER HUS-532121748
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
73
Bolts HUS-596136501
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
17
SPRING.BRAKE.K46.GREEN HUS-532413678
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
49
Bolts HUS-596136201
...
213
KNOB.CONTROL.CRUSIE.HU HUS-532403119
...
170
KEEPER.CENTER SPAN.1.688 HUS-532413430
...
307
SCREW.MACHINE.CR.1/4-20 HUS-874180412
...
196
SCREW 3/8-16X1 HUS-817000616
...
166
NUT.PUSH.625 HUS-532429164
...
210
ROCKER.ASM.PEDAL.CONTR HUS-532400980
...
214
PEDAL.FORWARD.HUSQVARNA.DEALER HUS-532416863
...
80
SERVICE KIT TORQUE STRAP BLACK HUS-531064101
...
209
Rods HUS-596869801
...
42
PAD, FOOT PEDAL HUS-510089501
...
197
LINK.CLUTCH.ANIT-ROTAT HUS-532195804
...
207
Latch HUS-587031402
...
185
BOLT HUS-872110622
...
2
SQUARE KEY HUS-532123583
...
56
Belts HUS-592855201
...
231
IDLER.V-GROOVE.1.688.OFFSET HUS-532407287
...
227
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
29
ROD.BRAKE.K46 HUS-532403806
...
26
SPRING.RETURN.CRUISE HUS-532199679
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
163
Rods HUS-593861001
...
222
WASHER 21/32 X 1-1/4 X 10 GA. HUS-879212010
...
64
SHAFT.ASM.PEDAL.BRK.CNTR HUS-532197865
...
92
Screws HUS-595305701
...
230
WASHER.HARDENED HUS-532188967
...
35
Rods HUS-583864502
...
215
PEDAL.REVERSE.TEX.GT.4 HUS-532401723
...
206
BRACKET.MOUNT.CRUISE.LATCH HUS-532448596
...
33
E-RING LT HUS-812000001
...
184
HANDLE.PARKING.BRAKE.H (BLK) HUS-532196439
...
225
SERVICE KIT KEEPER BELT KEEPER HUS-531149001
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318
...
1
Transaxle, Tufftorq K46BT (426120) HUS-000000000
...
159
Pins HUS-596029501

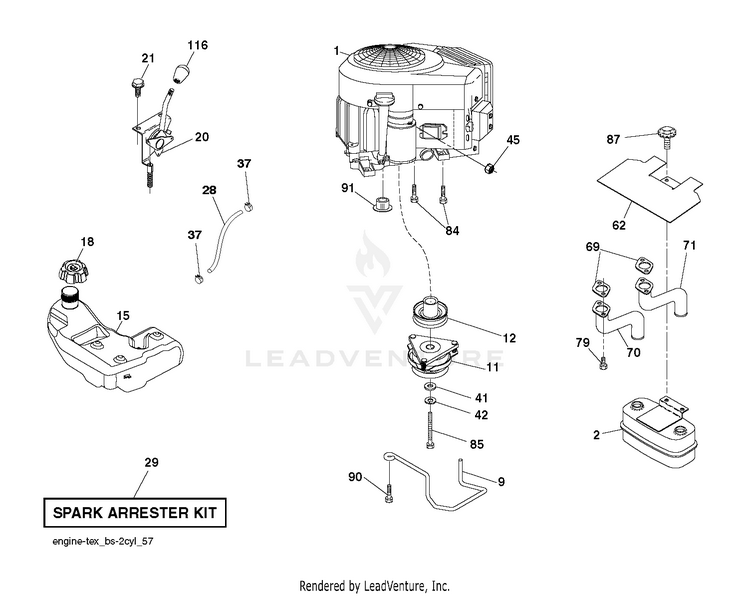

ENGINE

...
...
84
SCREW.3/8-16 HUS-817060620
...
37
HOSE CLAMP HUS-532123487
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
11
KIT.SVC.CLUTCH.ELECTRIC. HUS-532414336
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
79
Screws HUS-596134202
...
15
TANK ASSY W/CAP 3 GAL CARB HUS-529999102
...
20
CONTROL.THROTTLE/CHOKE.PRO.45 HUS-586219601
...
2
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
1
ENGINE B&S MODEL 40H777-4421-G1 (440268) HUS-000000000
...
87
BOLT 5/1618UNC X 3/4 W/ SEMS HUS-537171877
...
116
KNOB - SHIFT HUS-539132624
...
41
WASHER HUS-532126197
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
42
Washers HUS-596238901
...
90
SCREW 3/8-16X1 HUS-817000616
...
91
BUSHING.1.375OD HUS-532187495
...
70
EXHAUST.TUBE.LH.BS/TWIN HUS-581881101
...
71
EXHAUST.TUBE.RH.B&S.TWIN.INTEK HUS-581881001
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
18
CAP.ASM.FL.RITCH.3"E10.SYM.498 HUS-532439208
...
9
Keepers HUS-596501502
...
21
Screws HUS-596321701
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
69
GASKET.MUFFLER HUS-532165391
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501

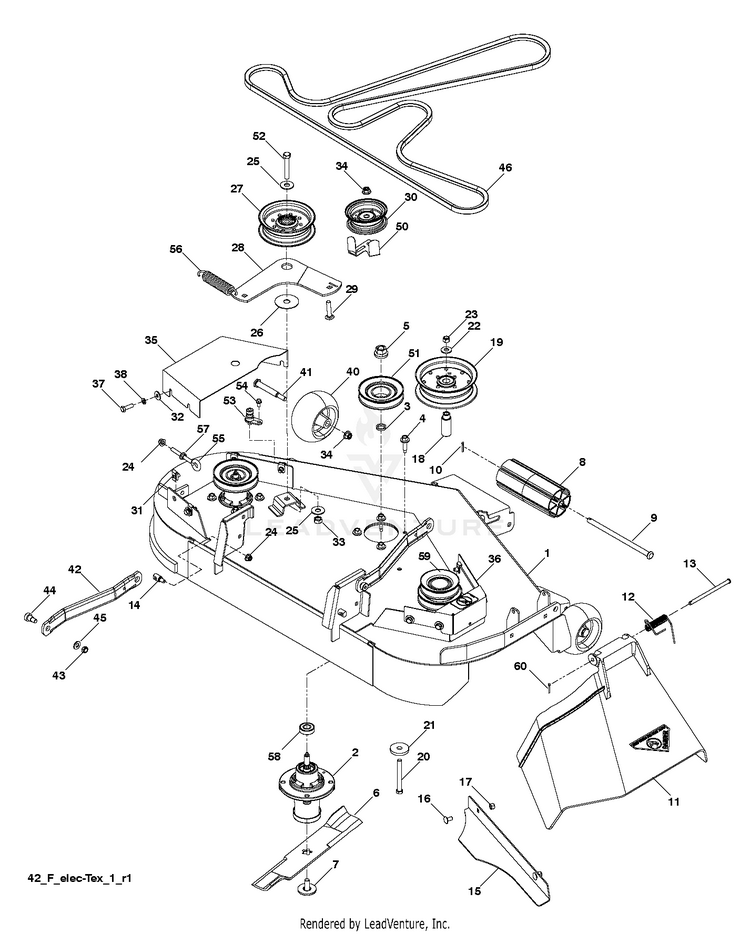

MOWER DECK / CUTTING DECK

...
...
42
SERVICE KIT ARM ARM.SUSPENSION HUS-531169201
...
52
Bolts HUS-596435201
...
9
Rods HUS-594092501
...
45
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
xx
DECK SVC W/DECALS 42 YTH ORNGE HUS-575438001
...
60
GSPW Retainers HUS-596029401
...
25
Washers HUS-596437601
...
53
PORT.WASHOUT HUS-532415598
...
38
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
34
GSPW Nuts HUS-521996502
...
51
PULLEY, MANDREL 4.08 OP HUS-575224401
...
41
Bolts HUS-596434404
...
36
SHIELD, BELT, RH 42 ORG RH HUS-575967102
...
11
DISCHARGE CHUTE 42" HUS-539110731
...
20
HCS 3/8-16 X 3-1/2 GR5 ZD HUS-539108271
...
59
PULLEY, COLLECTION 42 HUS-575416201
...
10
PIN.COTTER.5/16.BOW TI HUS-532194208
...
33
Nuts HUS-595901901
...
15
CONFINEMENT.PLATE.42".BLACK HUS-539112413
...
12
Springs HUS-596646001
...
32
GSPH HUS-596134901
...
1
DECK SVC W/DECALS 42 YTH ORNGE HUS-575438001
...
29
RHSNB 3/8-16X1-3/4 HUS-539990923
...
30
PULLEY.IDLER.FLAT HUS-532177968
...
3
WASHER.SPACER.MANDREL HUS-532187690
...
44
Bolts HUS-596241101
...
8
NOSE ROLLER 48" HUS-532176066
...
5
Nuts HUS-596134801
...
46
BELT, 42" FAB DECK HUS-574845601
...
2
MANDREL.DECK.ASSEMBLY HUS-539112170
...
14
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
37
Bolts HUS-596580801
...
23
GSPW Nuts HUS-596240901
...
56
Springs HUS-596645601
...
19
Pulleys HUS-589766102
...
16
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
18
BUSHING, IDLER HUS-575224501
...
28
ARM, IDLER, BLK HUS-574827102
...
21
Washers HUS-596770301
...
24
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
40
WHEEL GAGE DONUT HUS-532133957
...
4
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
17
Nuts HUS-596583702
...
55
GSPW Bolts HUS-596240801
...
54
BOLT 1/4-20 X 1/2 HWST HUS-539108461
...
57
GSPW Hardware HUS-596039201
...
13
Pins HUS-595935501
...
22
GSPW Washers HUS-596433701
...
31
U-CLIP 5/16-18 NUT RETAINER HUS-539104763
...
7
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
43
Nuts HUS-596230801
...
27
PULLEY.IDLER.MWR.STATI.LH HUS-532196104
...
50
SERVICE KIT GUARD HUS-531165901
...
35
SHIELD.BELT.LH.ORANGE LH HUS-575224702
...
6
BLADE, 14 5/8" HUS-539112078
...
58
BEARING, BALL HUS-539112050
...
26
WASHER HUS-532178515

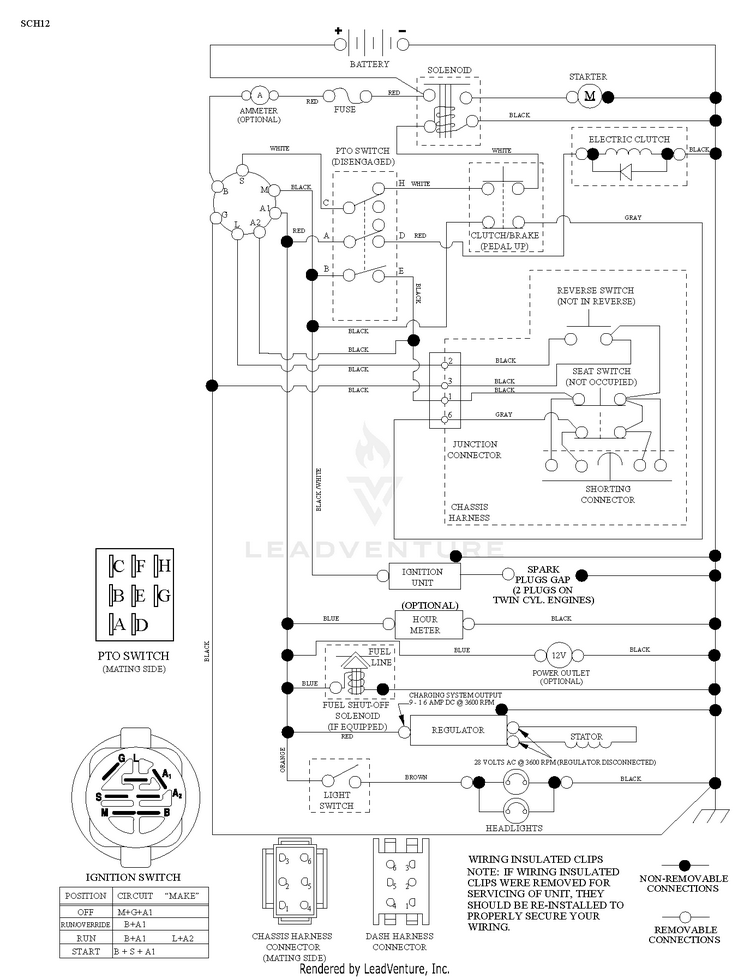

SCHEMATIC

...

No Parts Available for this Schematic
