Husqvarna YTH22V42 - 96043010900 (2010 - 11) Riding Tractor

Model: YTH22V42 - 96043010900 (2010 - 11)

Back To Assemblies

Save Part Not Listed?
product name

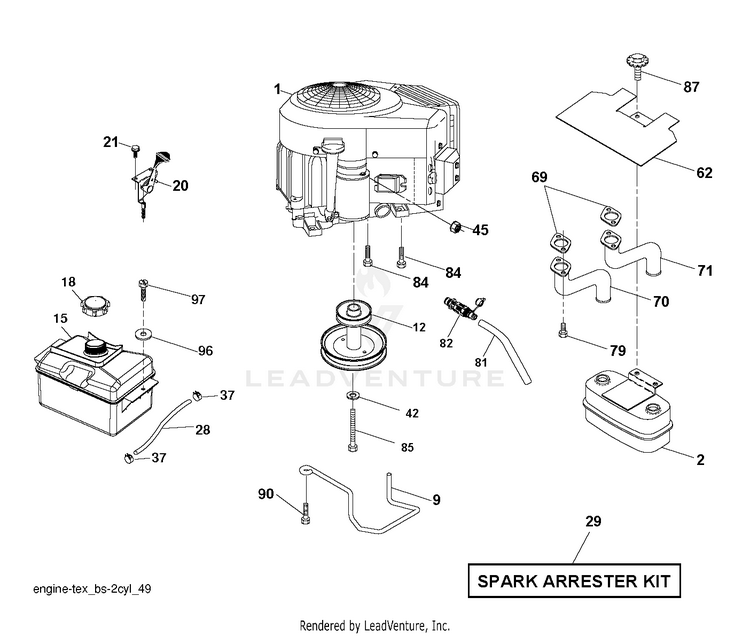

ENGINE

...
...
2
MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
71
EXHAUST.TUBE.RH.B&S.TWIN.INTEK RH HUS-581881001
...
12
ENGINE.PULLEY HUS-586478501
...
79
Screws HUS-596134202
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
42
Washers HUS-596238901
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
96
Washers HUS-596135301
...
69
GASKET.MUFFLER HUS-532165391
...
1
Engine Briggs Model No. 40777-2195-G1 HUS-000000000
...
9
Keepers HUS-596501502
...
90
SCREW 3/8-16X1 HUS-817000616
...
87
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
28
HOSE.1/4".LOW.PERM.FUEL.LN.22" HUS-587044822
...
85
BOLT.HEX.7/16-20X4.GR5.1.5BLUE HUS-501606501
...
37
HOSE CLAMP HUS-532123487
...
84
SCREW.3/8-16 HUS-817060620
...
15
TANK.ASSEMBL.2.5GAL.NON-EPA HUS-581290101
...
82
VALUE.OIL.DRAIN HUS-532428287
...
70
EXHAUST.TUBE.LH.BS/TWIN LH HUS-581881101
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
18
CAP.2.25'.VENTED.RATCHET.EPA HUS-581075501
...
20
CONTROL.TH/CK.COBRA.B&S.TWN.BK HUS-532423502
...
21
Screws HUS-596321701
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
