Husqvarna YTH22K54 - 96043025500 (2017-10) Riding Tractor

Model: YTH22K54 - 96043025500 (2017-10)

Back To Assemblies

Save Part Not Listed?
product name

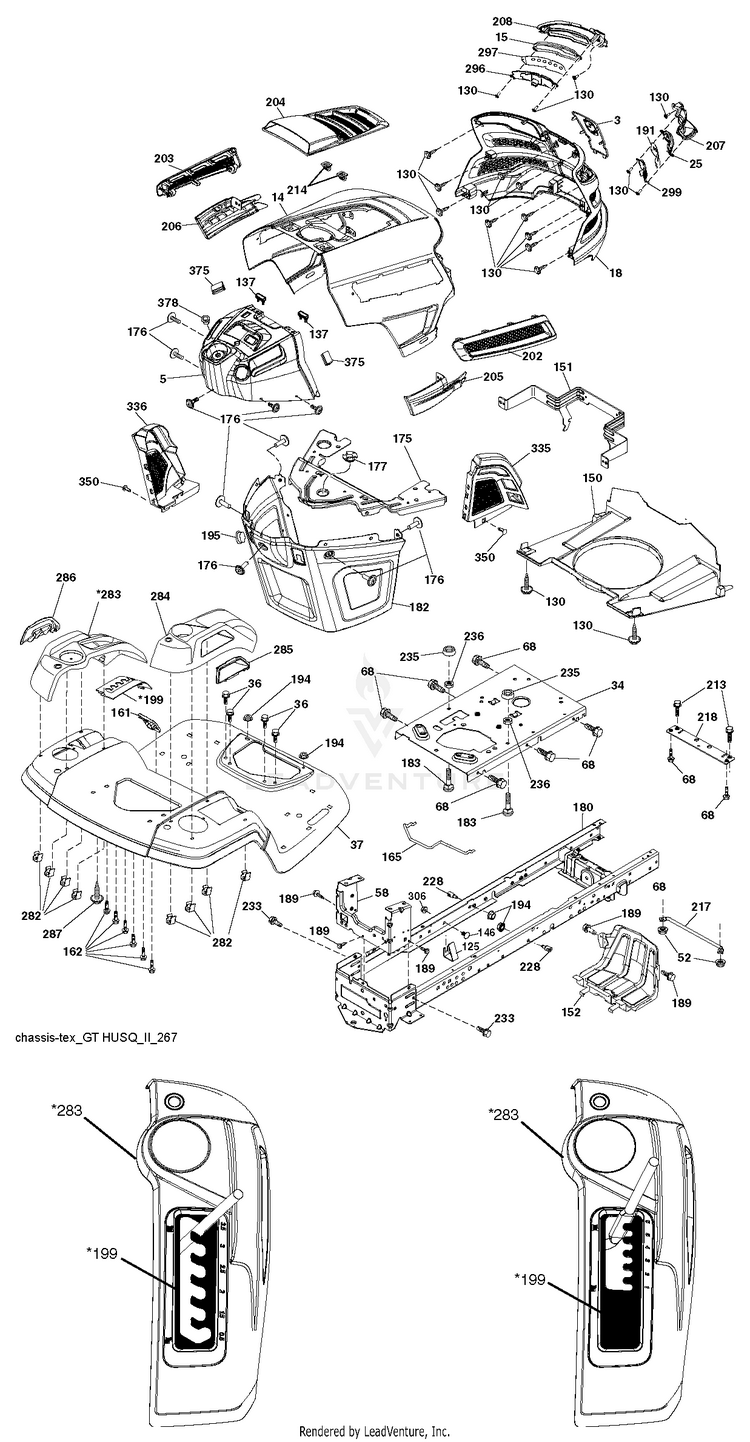

CHASSIS / FRAME

...
...
285
CONSOLE INSERT RH HUS-532416315
...
297
INSERT REFECT LH HUS-586182901
...
207
BEZEL GT2 LED RH W/ LOWER.ATT RH HUS-585420002
...
14
KIT.HOOD.ASM.HUSQ.GT.TEX.668 HUS-587483301
...
161
WINDOW.FUEL.LT.HUSQ.TEX.498 HUS-532439781
...
284
CONSOLE.ASM.LFT.RSF.HUSQ.LT HUS-532439151
...
177
BUSHING STEERING HUS-532195228
...
5
DASH.UPR.GT2.SM.PTO.MC.HR.498 HUS-590748811
...
52
Hardware HUS-596040501
...
335
COVER.LOWER.DASH.RH.BLACK HUS-532448204
...
3
APPLIQUE.SUBASM.GT.HUSQ.II HUS-532444481
...
165
SUPPORT.TANK.REAR.W/TEX HUS-532196826
...
152
SHIELD.BROWNING.PNT.GT.V2 HUS-532439870
...
203
VENT.SIDE.LH.GT.HUSQ.II.498 LH HUS-532439727
...
34
PLATE.ENGINE.WELDED.CHASSIS HUS-580910801
...
286
CONSOLE.INSRT.LH.HUSQ.LT.BLACK HUS-532416317
...
58
SERVICE KIT DRAWBAR FENDER DRA HUS-531152601
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
125
CLIP.FUEL.LINE HUS-581684801
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
299
LED LIGHT.RH HUS-585420401
...
182
DASH.LOWER.COMMON.12V.ADAPTOR HUS-532406859
...
68
Screws HUS-596030701
...
235
Spacers HUS-596564201
...
282
CLIP.RETAINER.CONSOLE.LT.HUSQ HUS-532414110
...
175
PLATE.PNT.CROSSMEMBER.HUSQ/PRE HUS-590607702
...
336
COVER-LH.LOWER.DASH.GT2.BLACK HUS-532445309
...
151
SERVICE KIT PIVOT BRACKET BRAC HUS-531077401
...
213
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
18
Grilles HUS-597247201
...
206
SIDE.TRIM.LH.GT.HUSQ.II.GRAY LH HUS-532439729
...
217
ROD.PIVOT.HOOD HUS-532409167
...
*199
NEEDS DESCRIPTION HUS-596532002
...
202
VENT.SIDE.RH.GT.HUSQ.II. RH HUS-532439728
...
375
BUMPER CLIP-ON. DASH 1" HUS-586908201
...
378
BUSHING FLANGE; PLASTIC HUS-590849801
...
15
Grilles LH HUS-597247301
...
287
SCREW 1/4X20 HUS-817600406
...
233
BOLT.SHOULDER HUS-532196539
...
183
Screws HUS-595305701
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
*283
CONSOLE.DECK.LIFT.R.SDFL.HUSQ HUS-532439861
...
194
GSPW Nuts HUS-596135701
...
180
CHASS.WLDMNT.TL.12GA/2P.48/54 HUS-532415063
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
37
FENDER.TLT.FS.W/CPH/FW/RSF.ORN HUS-532423694
...
208
BEZEL GT2 LED LH W/ LOWER ATT LH HUS-585420102
...
218
X-PIECE.HOOD.STOP.NON/ HUS-532196395
...
130
Screws HUS-596321701
...
306
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
296
LED LIGHT.LH HUS-585420501
...
191
INSERT INFLECT.RH HUS-586182801
...
*283
596 30 49-01 Console Deck Lift LH HUS-TBD
...
146
BOLT.RDHD.SHT.SQNK.3/8-16X5/8 HUS-581857901
...
195
PLUG.HOLE.DASH.LOWER.12V.BLK HUS-532404137
...
150
AIR.DUCT.GTV.BLACK HUS-532439774
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
205
SIDE.TRIM.RH.GT.HUSQ.II RH HUS-532439730
...
162
Screws HUS-596134101
...
204
VENT.TOP.ASM.HUSQ.GT2 HUS-587485801
...
*199
PLATE.DECK.LIFT.HUSQ.LT HUS-532413485
...
137
BUMPER DASH HUS-532407590
...
25
LENS.RH RH HUS-585420201
...
350
CLIP.X-MAS.TREE HUS-532445143
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
