Husqvarna YTH22K48 - 96043025300 (2017-10) Riding Tractor

Model: YTH22K48 - 96043025300 (2017-10)

Back To Assemblies

Save Part Not Listed?
product name

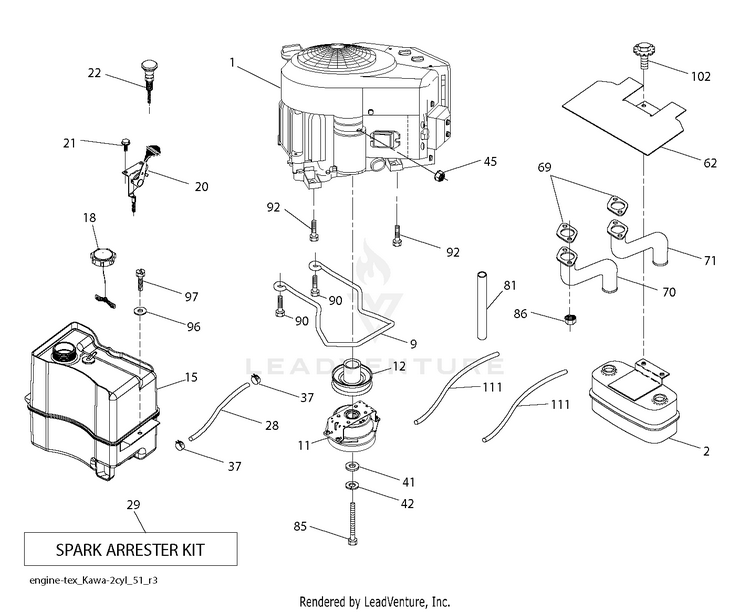

ENGINE

...
...
69
GASKET.EXHAUST.KOHLER HUS-532185909
...
9
Keepers HUS-596501502
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
97
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
20
CONTROL.THROTTLE.COBRA.BLACK HUS-532412165
...
18
FUEL.CAP.ASM.2.25TETHRED.RATCH HUS-587382901
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
96
Washers HUS-596135301
...
90
SCREW 3/8-16X1 HUS-817000616
...
85
BOLT.HEX.7/16-20X3.75.GR5.RED HUS-501606601
...
71
TUBE.EXHAUST.LH.FR961/FR730 HUS-583955601
...
37
HOSE CLAMP HUS-532123487
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
86
ADAPTER.BLADE.21.FWGD HUS-583135201
...
1
Engine kaWA FR561V-AS28R (593006001) (Order parts from engine manufacter) HUS-000000000
...
11
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 HUS-587241601
...
15
FUEL TANKS HUS-597954502
...
42
Washers HUS-596238901
...
21
Screws HUS-596321701
...
92
SCREW 3/8-16X1 HUS-817120616
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
41
WASHER HUS-532126197
...
70
TUBE.EXHAUST.RH.FR961/FR730 HUS-583955701
...
111
Hoses HUS-587044580
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
22
CONTROL.CHOKE.ERGO.BLACK HUS-532187768
