Husqvarna YTH22K48 - 96043025300 (2017-10) Riding Tractor

Model: YTH22K48 - 96043025300 (2017-10)

Back To Assemblies

Save Part Not Listed?
product name

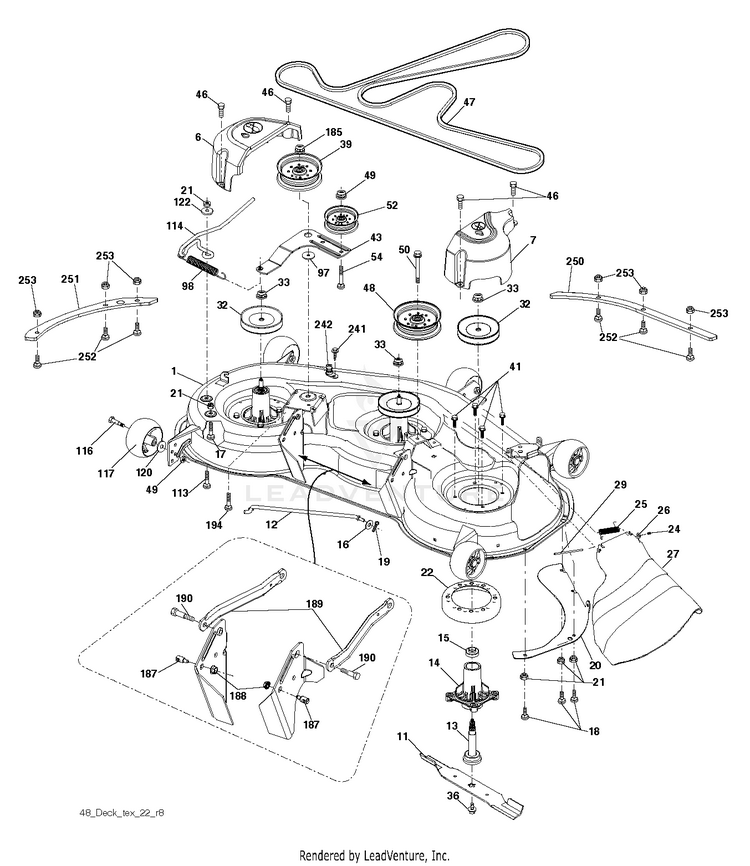

MOWER DECK / CUTTING DECK

...
...
122
BUSHING.RELIEF.TENSION HUS-532187557
...
116
Bolts HUS-596434404
...
114
ROD.TENSION.RELIEF.TEX (2 2) HUS-532197451
...
49
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
14
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
250
PLATE.REIN.FRNT.BOLTON.48X431 HUS-585318005
...
--
DECK.ASM SVC.48".5GWB.ORANGE HUS-532418223
...
26
NUT PUSH M HUS-532110452
...
xx
KIT.MANDREL.GREASEABLE.TALL MANDREL ASSEMBLY (Includes Housing (Key # 14), Shaft Assembly (Key # 13) and Bearing Only (Key # 15) - Pulley/Nut/Washer and Blade Bolt/Washers Not Included) HUS-587820301
...
19
PIN.COTTER.5/16.BOW TI HUS-532194208
...
187
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
27
DEFLECTOR.ASM.BLACK.48" HUS-532180655
...
190
BOLT.SHOULDER HUS-532196539
...
6
COVER.MANDREL.LH.48"(2 2) HUS-532197248
...
41
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
33
Nuts HUS-596134801
...
36
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
46
SCREW.1/4-20X5/8 HUS-532137729
...
22
SERVICE KIT MANDREL STRIPPER HUS-531167701
...
241
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
18
Bolts HUS-596136401
...
16
GSPH HUS-596134901
...
50
SCREW TT 3/8-16X2.31 UNC HUS-596564004
...
32
MANDREL.PULLEY.38.BRIGHT.ZINC HUS-532173435
...
113
Bolts HUS-596435701
...
1
DECK.SVC 48".4GWB.O HUS-532418224
...
39
PULLEY.IDLER.MWR.STATI.LH HUS-532196104
...
7
COVER.RH.MANDREL HUS-587452401
...
17
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
117
WHEEL.GAUGE.RALLY HUS-589527301
...
194
BOLT.HEX.WASHER.HEAD.7/16-24X HUS-874490736
...
251
PLATE.REIN.SIDE.BOLT.ON.48X431 HUS-585322405
...
48
PULLEY.IDLER.2006 HUS-532196106
...
47
Belts- 197242 HUS-593773401
...
188
GSPW Nuts HUS-596135701
...
189
SERVICE KIT ARM ARM.SUSPENSION HUS-531169201
...
xx
COUPLING.QUICK CONNECT NOT SHOWN HUS-532416405
...
11
48" HI-LIFT BLADE HUS-532180054
...
25
TORSION SPRING HUS-539107609
...
12
ROD.ANTI.SWAY.48/54"K4 HUS-532404851
...
20
SERVICE KIT BAFFLE BAFFLE HUS-531167501
...
50
SCREW TT 3/8-16X2.31 UNC HUS-596564004
...
15
BEARING.MANDREL.TOP.EXTENDED HUS-585323901
...
242
PORT.WASHOUT HUS-532415598
...
52
PULLEY.IDLER.FLAT HUS-532177968
...
252
BOLT CUP HEAD SQUARE NECK 1/4- HUS-592807801
...
29
Rods HUS-595297001
...
21
Hardware HUS-596040501
...
24
CAP-SLEEVE LT HUS-532105304
...
54
GSPW Bolts HUS-596136101
...
97
WASHER HUS-532178515
...
185
NUT.LOCK.FLANGE.7/16 HUS-873900700
...
43
SERVICE KIT ARM.IDLER HUS-531169301
...
98
SPRING BELT TENSIONER BLACK HUS-547878302
...
253
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
13
KIT.MANDREL.GREASEABLE.TALL HUS-587820301
...
120
GSPH HUS-596134901
