Husqvarna YTH2246 TDR - 96041027202 (2013-05) Riding Tractor

Model: YTH2246 TDR - 96041027202 (2013-05)

Back To Assemblies

Save Part Not Listed?
product name

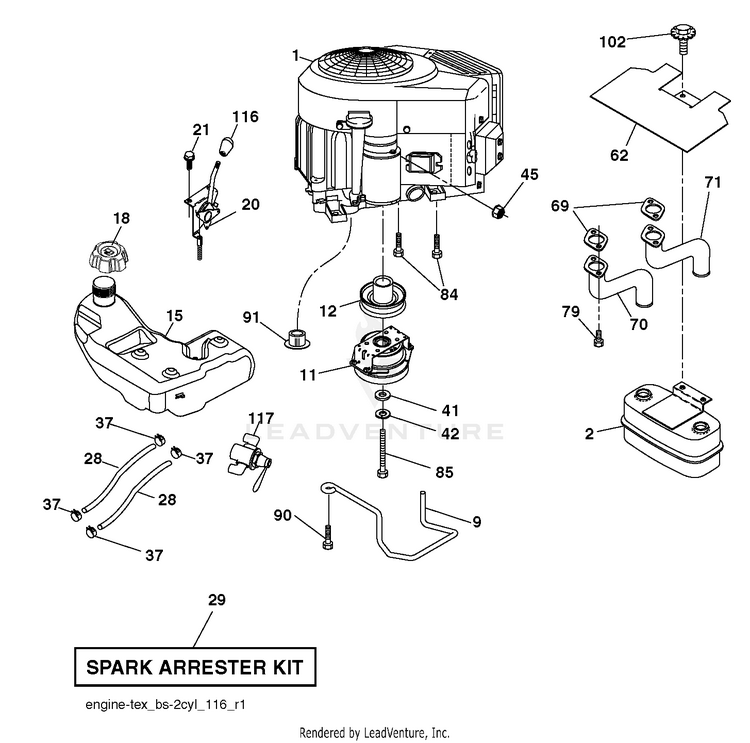

ENGINE

...
...
12
PULLEY.ENGINE.TUFFTORQ HUS-532405097
...
69
GASKET.MUFFLER HUS-532165391
...
9
Keepers HUS-596501502
...
84
SCREW.3/8-16 HUS-817060620
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
41
WASHER HUS-532126197
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
42
Washers HUS-596238901
...
116
KNOB - SHIFT HUS-539132624
...
1
ENGINE B&S MODEL 40H777-1575-G5 (442152) HUS-000000000
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
117
VALVE FUEL RESERVE HUS-532420828
...
90
SCREW 3/8-16X1 HUS-817000616
...
102
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
71
EXHAUST.TUBE.RH.B&S.TWIN.INTEK RH HUS-581881001
...
21
Screws HUS-596321701
...
15
TANK FUEL HUS-532422804
...
18
CAP.ASSY.FUEL.3".N-EPA.GRY.498 HUS-584248702
...
20
CONTROL.THROTTLE/CHOKE.PRO.45 HUS-586219601
...
79
Screws HUS-596134202
...
11
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 HUS-587241601
...
91
BUSHING.1.375OD HUS-532187495
...
37
HOSE CLAMP HUS-532123487
...
85
BOLT.HEX.7/16-20X3.75.GR5.RED HUS-501606601
...
70
EXHAUST.TUBE.LH.BS/TWIN LH HUS-581881101
